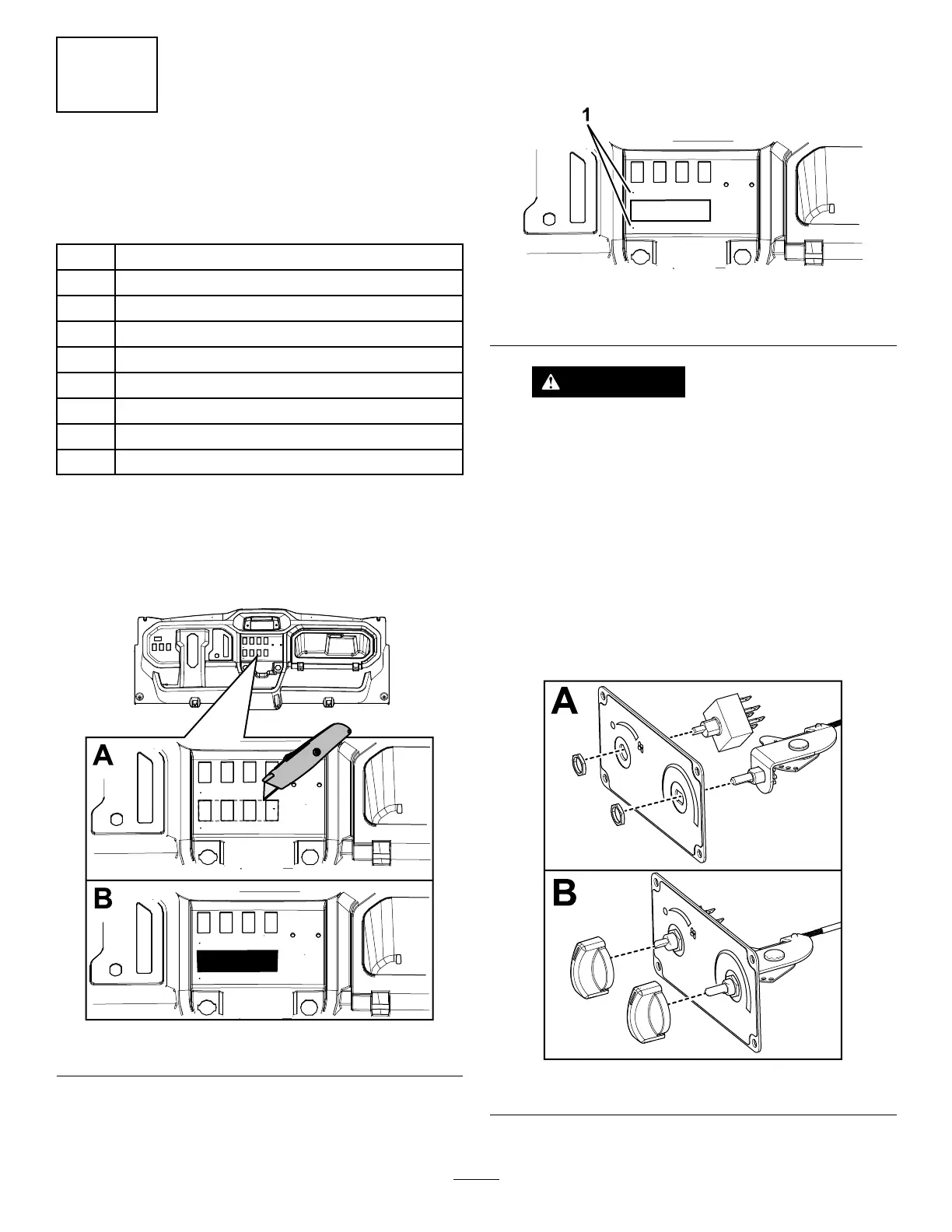

Installing the Heater Control
Panel
Parts needed for this procedure:
1 Heater control panel
1 Rotary switch
1 Rotary linear switch
2
Switch nut (7/16 inch)
2 Knob
4
Button-head bolt (5/8 inch)
4
Locknut (#10-24)
1
Control cable
1 Wire harness
Procedure
1. On the dashboard, remove the 4 switch plugs
and cut out the material between the switch
cutouts ( Figure 3 ).
g398819
Figure 3
2. Locate the 2 drill pilot dimples ( Figure 4 ) and
drill 2 pilot holes (3/16 inch) directly over the
pilot dimples.
g398820
Figure 4
1. Drill pilot dimples
W ARNING
Using a drill without wearing eye
protection may allow debris to enter the
eye, causing personal injury .
When drilling, always wear eye
protection.
3. Using the heater control panel as a template,
drill the other 2 holes located on the right side.
4. Install the 2 switches onto the control panel with
2 switch nuts (7/16 inch) as shown in A of Figure
5 .
5. Install a knob over each switch (B of Figure 5 ).
g430408
Figure 5
4
