GLOSSARY
3 - 18 Demystification Glossary
Switch, Cruise Control
P/N 93-0527 and P/N 94-7602

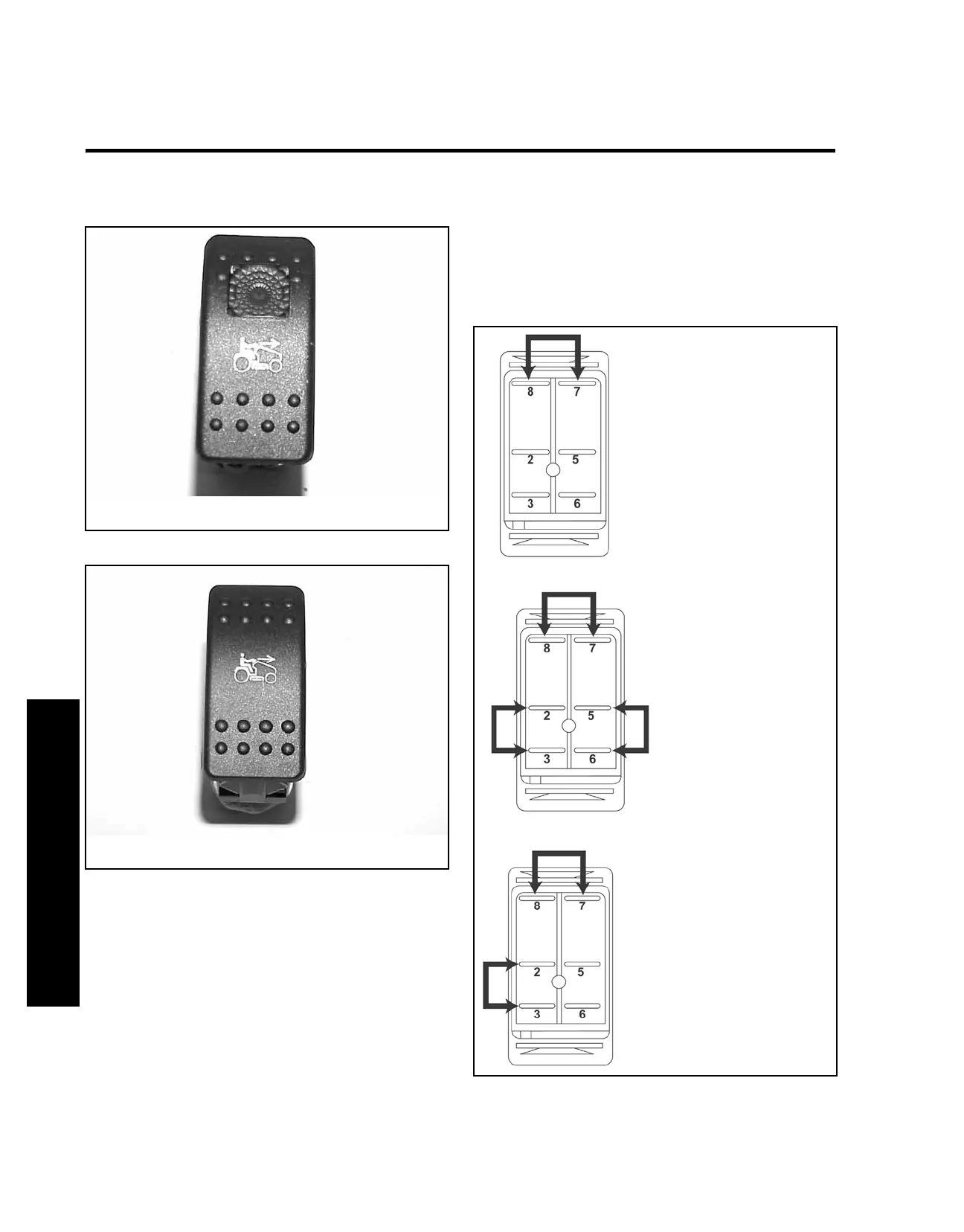

Figure 23
mvc-112
Figure 24 mvc-114
Purpose
This rocker switch is used to provide switching for the
cruise control (Figure 23 and Figure 24).
How it Works
The switch has contacts inside which connect two
terminals in one position while disconnecting them in
the other. There are 3 positions to the switch; OFF,
START, and RUN. The start position is spring loaded
so that the switch automatically returns to the “RUN”
position.
Testing
1. Disconnect the switch from the wiring harness.
2. Using a VOM or test lamp, test the continuity of
the terminals using the following diagrams (Figure
25 and Figure 26).
P/N 93-0527
Figure 25
mvc-163art
P/N 93-0527
P/N 94-7602
“RUN” Position continuity
between terminals 7-8 / 2-3
“OFF” Position continuity
between terminals 8 and 7
only
“START” Position
continuity between
terminals 7-8 / 2-3 / 5-6
