Toro 150-D User Manual

GLOSSARY
Demystification Glossary 3 - 19
P/N 94-7602
Figure 26
mvc-164art
Switch, Key
(P/N 88-9830 or 104-2541)
Purpose
This component provides the proper switching for the
starter, ignition, accessories, and safety circuits (Figure
27).
Figure 27
mvc-166art

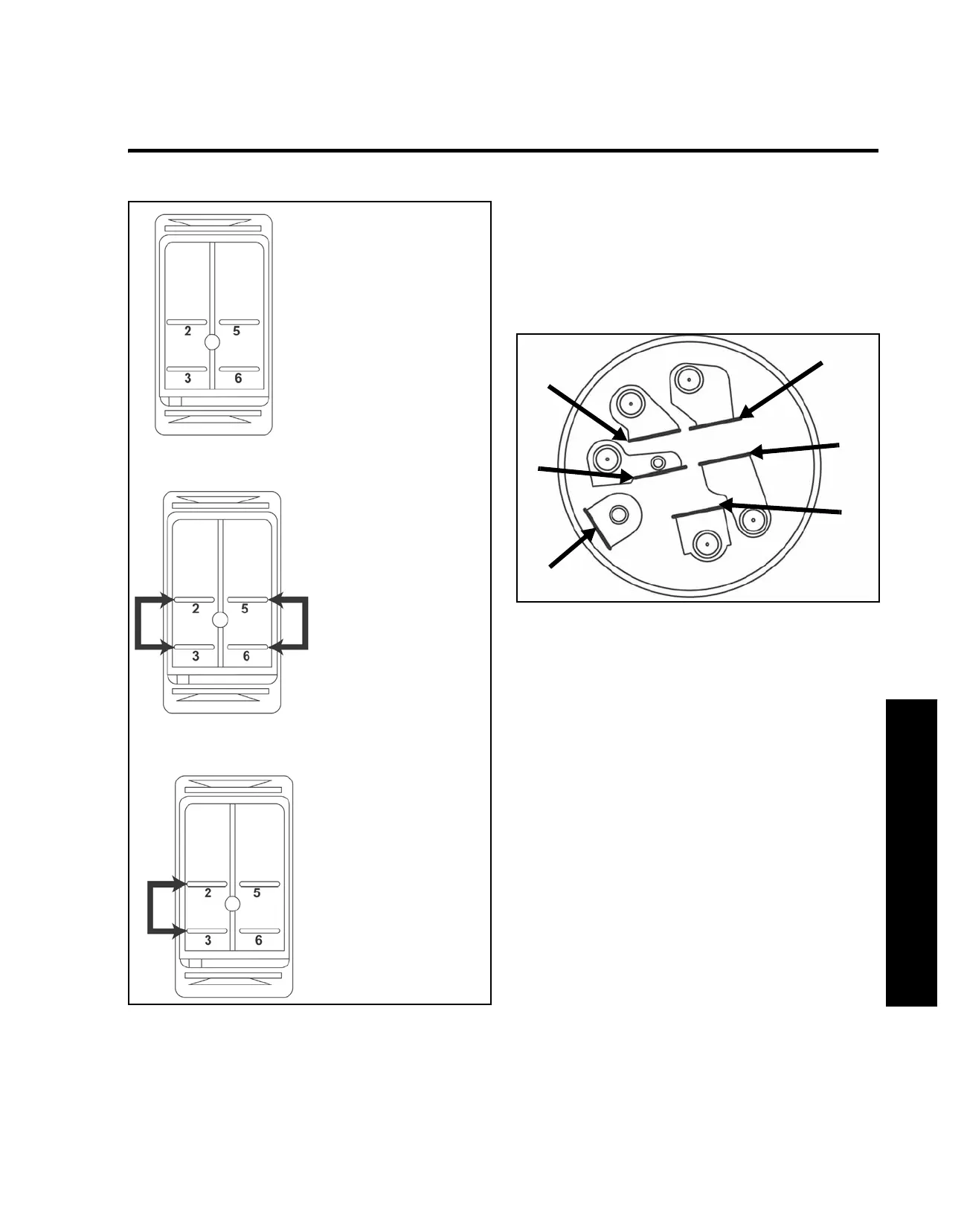

How it Works
Detents inside the switch give it 3 positions: OFF, RUN,
and START. The START position is spring loaded so
the cylinder automatically returns to RUN once the key
is released.
“OFF” Position no
continuity
“START” Position
continuity between
terminals 2-3 / 5-6
“RUN” Position continuity
between terminals 2-3
A
Y
X
I
S
B
Glossary
