AdjustingtheHeight-of-CutPin
Adjusttheheight-of-cutfrom38to127mm(1-1/2to5
inches)in6mm(1/4inch)incrementsbymovingthe
height-of-cutpinintodifferentholelocations.
1.MovethetransportlocktotheLOCKposition.
2.Pushonthedeck-liftpedalwithyourfootand
raisethemowerdecktotheTRANSPORTposition
(alsothe127mmor5inchcutting-height
position)asshowninFigure29.
3.Removethepinfromtheheight-of-cutbracket
(Figure29).
4.Selectaholeintheheight-of-cutbracket
correspondingtotheheight-of-cutdesired,and
insertthepin(Figure29).
5.Pushonthedecklift,pulluponthetransport
lockknob,andslowlylowerthemowerdeck.
g036745

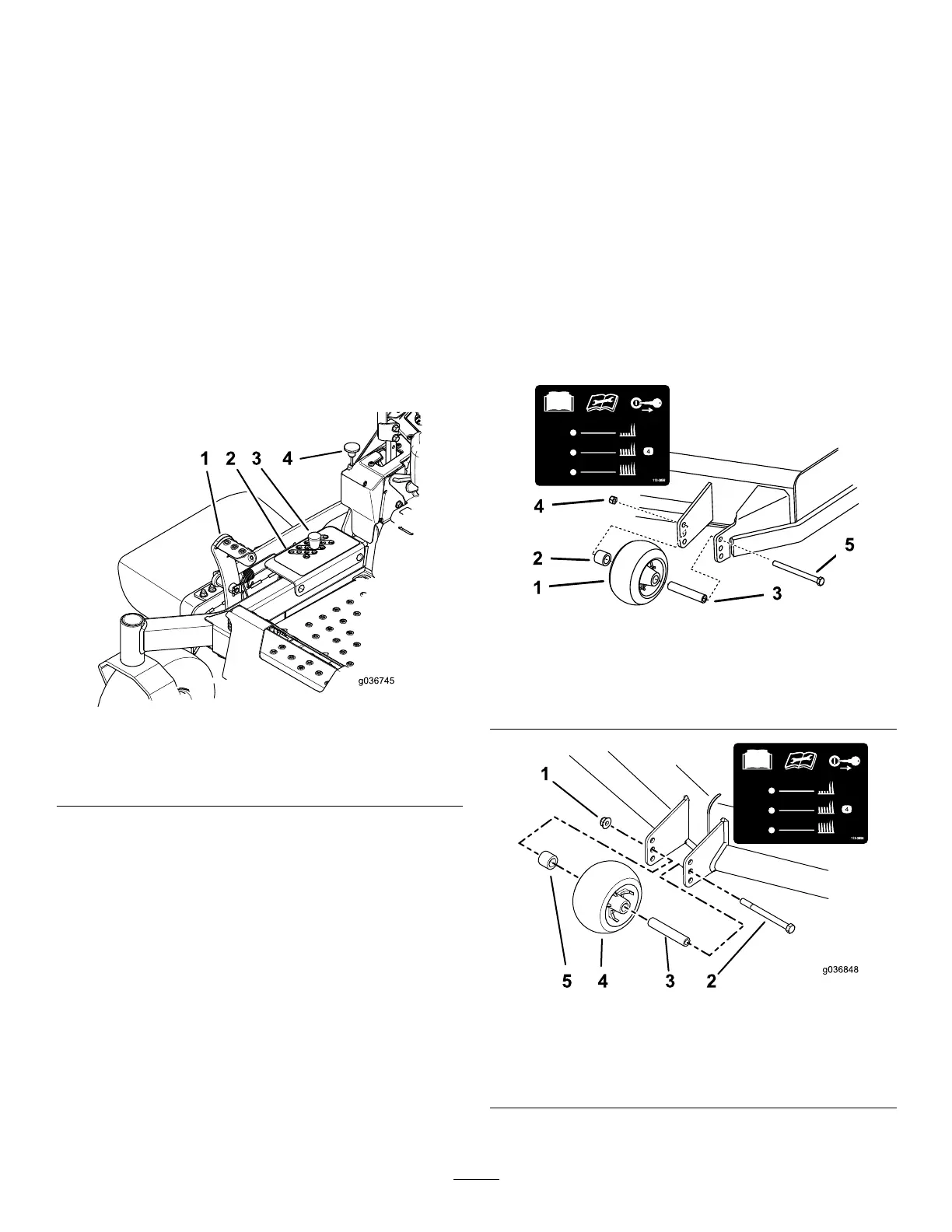

Figure29
1.Deck-liftpedal3.Height-of-cutpin
2.Height-of-cutholes
4.Transportlockknob
AdjustingtheAnti-Scalp
Rollers
Wheneveryouchangetheheightofcut,adjustthe
heightoftheanti-scalprollers.
Note:Adjusttheanti-scalprollerssothattherollers
donottouchthegroundinnormal,atmowingareas.
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitchandengagetheparking
brake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Adjusttheanti-scalprollersasshowninFigure
30.
g192815
Figure30
1.Anti-scalproller4.Flangenut
2.Spacer
5.Bolt
3.Bushing
g036848
Figure31
1.Flangenut4.Anti-scalproller
2.Bolt
5.Spacer
3.Bushing
28
