Important:Operatingtheenginewithablocked
radiator,willresultinenginedamagefrom
overheating.
1.Parkthetractionunitonalevelsurface,raisethe
loaderarms,andinstallthecylinderlocks.
2.Stoptheengineandremovethekey.
3.Removethefrontaccesscover.
4.Cleananydebrisfromthegrill.
5.Opentherearaccesscover.
6.Wipeawaydebrisfromtheaircleaner.
7.Cleananydebrisbuildupontheenginewithabrush
orblowerbeforeeachuse.
Important:Itispreferabletoblowdirtout,
ratherthanwashingitout.Ifwaterisused,
keepitawayfromelectricalitemsandhydraulic
valves.Donotuseahigh-pressurewasher.
High-pressurewashingcandamagethe
electricalsystemandhydraulicvalvesordeplete
grease.
8.Replaceandsecurethefrontandrearaccesscovers.
9.Removeandstorethecylinderlocksandlowerthe
loaderarms.
CheckingtheHydraulicFluid
Level
ServiceInterval:Every25hours
Checkthehydraulicuidlevelbeforetheengineisrst
startedandafterevery25operatinghours.
HydraulicTankCapacity:14.8USgallons(56l)
Use10W-30or15W-40detergent,dieselengineoil(API
serviceCH-4orhigher).
1.Removetheattachment,ifoneisinstalled.
2.Parkthetractionunitonalevelsurface,raisethe
loaderarms,andinstallthecylinderlocks.
3.Stoptheengine,removethekey,andallowthe
enginetocool.
4.Removethefrontaccesscover.
5.Cleantheareaaroundthellerneckofthehydraulic
tank(Figure15).
6.Removethecapfromthellerneckandcheckthe
uidlevelonthedipstick(
Figure15).
Theuidlevelshouldbebetweenthemarksonthe
dipstick.

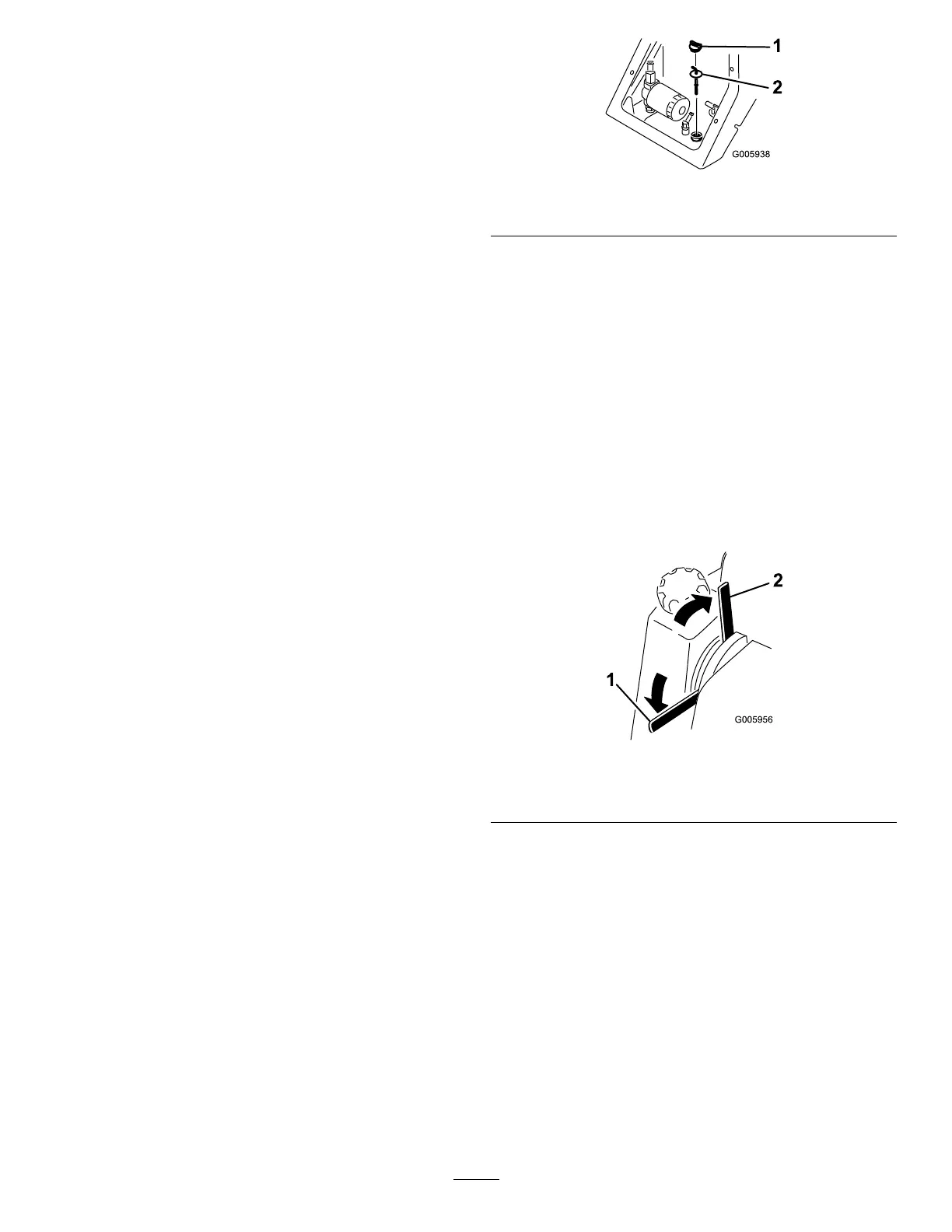

Figure15
1.Fillerneckcap2.Dipstick
7.Ifthelevelislow,addenoughuidtoraiseittothe
properlevel.
8.Installthecaponthellerneck.
9.Installthefrontaccesscover.
10.Removeandstorethecylinderlocksandlowerthe
loaderarms.
TestingtheParkingBrake
ServiceInterval:Beforeeachuseordaily
1.MovetheparkingbrakelevertotheOnposition
(
Figure16).
Figure16
1.Parkingbrakelever—On
position
2.Parkingbrakelever—Off
position
2.Starttheengine.
3.Slowlyeasethetractiondriveleversforwardor
rearward.
4.Ifthetractionunitmoves,contactyourAuthorized
ToroDealerforservice.
