chanceofvarnishdepositsinthefuelsystem,usefuel
stabilizeratalltimes.
FillingtheFuelTank
1.Parkthetractionunitonalevelsurface,lowerthe
loaderarms,andstoptheengine.
2.Removethekeyandallowtheenginetocool.
3.Cleanaroundthefueltankcapandremoveit.
4.Addunleadedgasolinetothefueltank,untilthe
levelisjustbelowthebottomofthellerneck.
Important:Thisspaceinthetankallows
gasolinetoexpand.Donotllthefueltank
completelyfull.
5.Installthefueltankcapsecurely.
6.Wipeupanygasolinethatmayhavespilled.
CheckingtheEngineOilLevel
ServiceInterval:Beforeeachuseordaily
1.Parkthetractionunitonalevelsurface,lowerthe
loaderarms,andstoptheengine.
2.Removethekeyandallowtheenginetocool.
3.Openthehood.

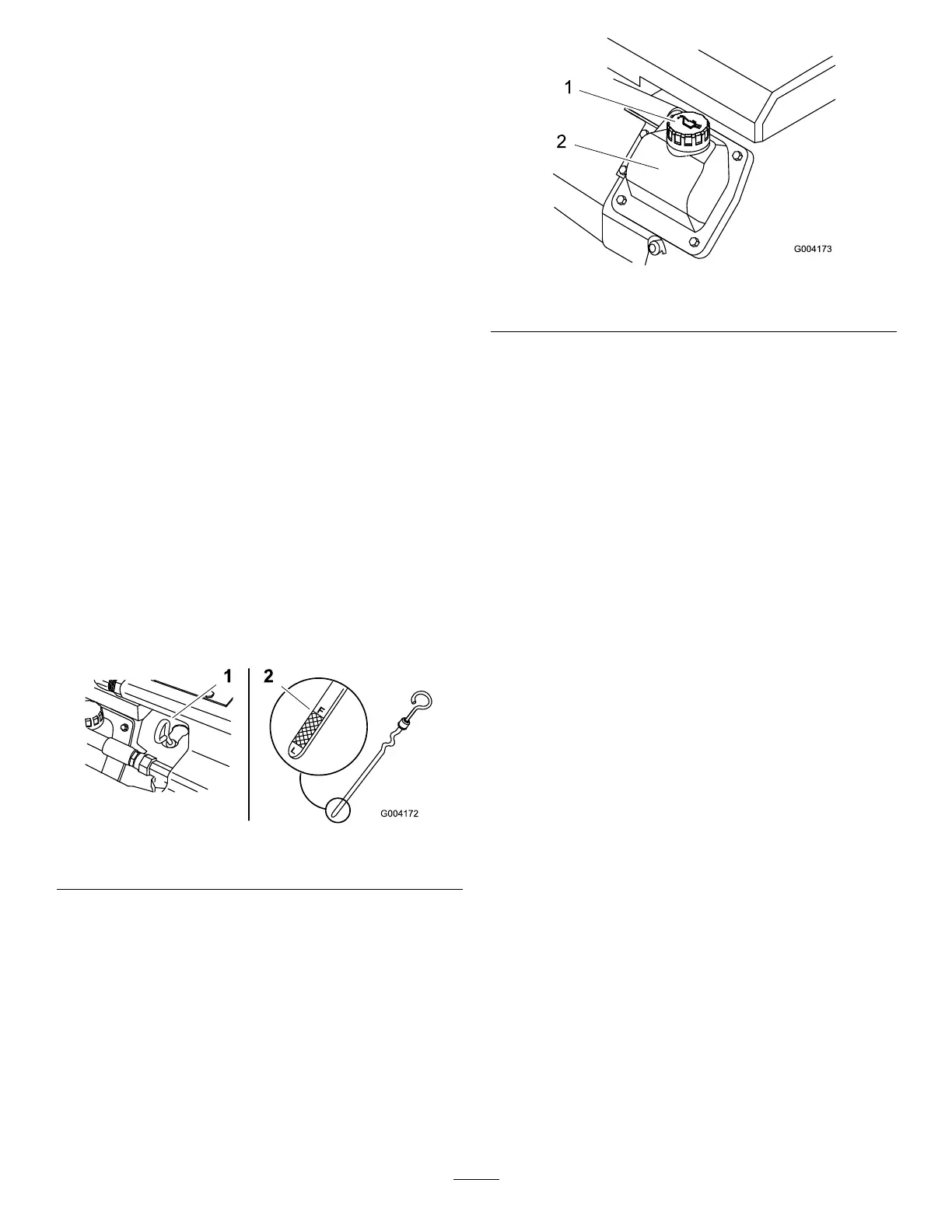

4.Cleanaroundtheoildipstick(Figure14).
Figure14
1.Oildipstick
2.Metalend
5.Pulloutthedipstickandwipethemetalendclean
(Figure14).
6.Slidethedipstickfullyintothedipsticktube
(Figure14).
7.Pullthedipstickoutandlookatthemetalend.
8.Iftheoillevelislow,cleanaroundtheoilllercap
andremovethecap(Figure15).
Figure15
1.Fillercap2.Valvecover
9.Slowlypouronlyenoughoilintothevalvecoverto
raisetheleveltotheF(full)mark.
Important:Donotoverllthecrankcasewith
oilbecausetheenginemaybedamaged.
10.Replacethellercapanddipstick.
11.Closethehood.
CheckingtheHydraulicFluid
Level
ServiceInterval:Every25hours
HydraulicTankCapacity:12USgallons(45.4l)
Use10W-30or15W-40detergent,dieselengineoil(API
serviceCH-4orhigher).
1.Removetheattachment,ifoneisinstalled;referto
RemovinganAttachment.
2.Parkthetractionunitonalevelsurface,lowerthe
loaderarms,andfullyretractthetiltcylinder.
3.Stoptheengine,removethekey,andallowthe
enginetocool.
4.Openthehood.
5.Cleantheareaaroundthellerneckofthehydraulic
tank(Figure16).
6.Removethecapfromthellerneckandcheckthe
uidlevelonthedipstick(Figure16).
Theuidlevelshouldbebetweenthemarksonthe
dipstick.
17
