5
Installation
Loose Parts
Note: Use the chart below to identify parts for assembly.
DESCRIPTION QTY. USE
Pivot frame
Broom head
Attachment frame
Swing arm
Bolt, 3/4 in. (1.9 cm) x 10 1/2 in. (26.7 cm)
Nut, 3/4 in. (1.9 cm)
Thrust washer, large
Pivot cap
Bolt, 3/4 in. (1.9 cm) x 4 in. (10 cm)
Spacer
1
1
1
1
1
4
1
2
2
4
Assemble broom

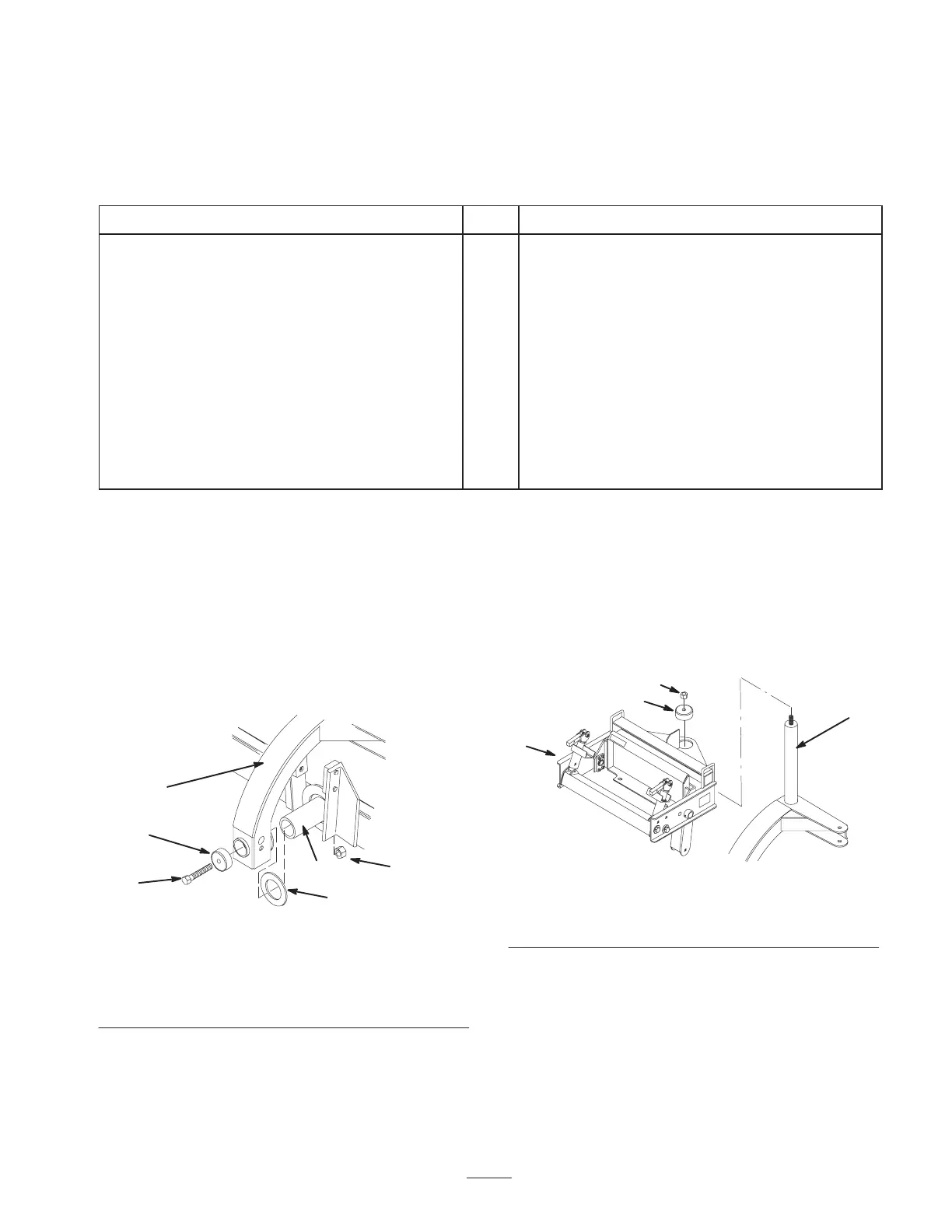

Assembling the Broom
1. Slide the thrust washer and the pivot frame onto the
shaft on the back of the broom head (Fig. 2)
2. Secure the pivot frame with a pivot cap, 3/4 in.
(1.9 cm) x 10 1/2 in. (26.7 cm) bolt, and 3/4 in.
(1.9 cm) nut (Fig. 2).
Note: Ensure that the pivot frame rotates around the shaft.
If it cannot, the bolt and nut are too tight.
m–4175
4
1
5
3
6
2
Figure 2
1. Pivot frame
2. Shaft
3. Pivot cap
4. Thrust washer
5. Bolt, 3/4 in. (1.9 cm) x
10 1/2 in. (26.7 cm)
6. Nut, 3/4 in. (1.9 cm)
3. Lubricate the shaft on the top of the pivot frame
(Fig. 3) with a corrosion resistant, calcium-sulphonate
based grease.
4. Slide the attachment frame onto the shaft on the top of
the pivot frame (Fig. 3).
5. Secure the attachment frame with a pivot cap and
3/4 in. (1.9 cm) nut (Fig. 3).
m–4176
2
3
1
4
Figure 3
1. Assembly frame
2. Shaft
3. Pivot cap
4. Nut, 3/4 in. (1.9 cm)
6. Torque the nut to 265 ft·lbs (359 Nm).
7. Connect the swing arm to the swing bracket on the
pivot frame with two spacers, a 3/4 in. (1.9 cm) x 4 in.
(10 cm) bolt, and a 3/4 in. (1.9 cm) nut (Fig. 4).
Torque to 265 ft·lbs (359 Nm).
