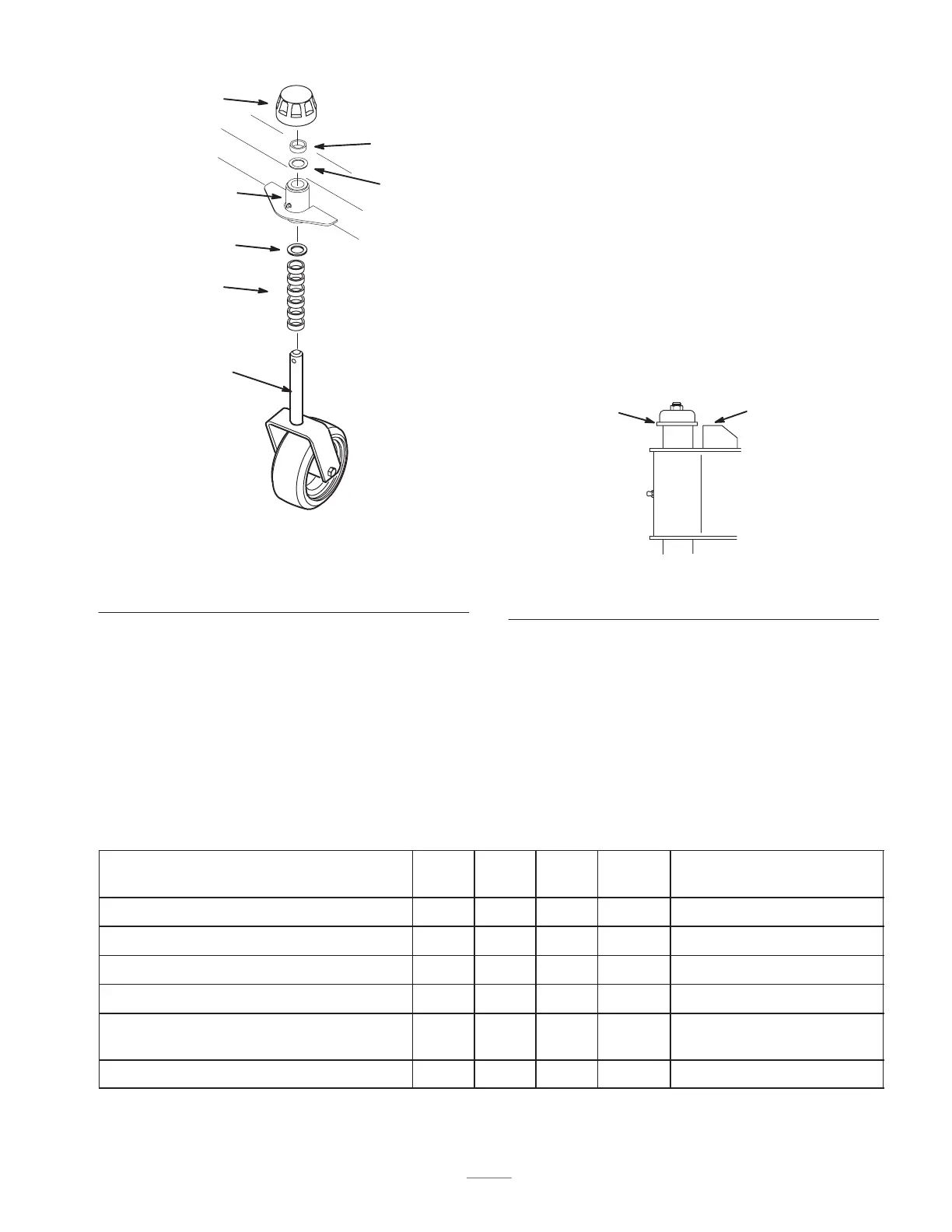

Figure 11
1. Castor spindle
2. Spacers
3. Thrust washer
4. Frame bracket
5. Cap
Operation
Note: Always use the traction unit to lift and move the
attachment.
To operate the broom, pull the auxiliary hydraulics lever
to the operator grip and hold it there.
Tips for Sweeping
• If ground speed is too fast, debris will pile up in front
of the broom, causing it to bulldoze instead of sweep.
This can damage the broom.
• More pressure will not give a better sweep, but it will
wear out the broom faster.
• A level broom lasts longer.
• When sweeping, try to keep the flange on the top of
the pivot pin level with the gage plate
(Fig. 12). This will allow you adequate room for
movement if you run over bumps or low areas.
m–4132
1
2
Figure 12
1. Pivot pin 2. Gage plate
Maintenance
Service Interval Chart
Service Operation
Each
Use
8
Hours
200
Hours
Storage
Service
Notes
Main pivot shaft–lubricate X X
Grease fittings X X
Change brushes As required
Replace castor fork bushings X
Replace castor wheel bearings
When the castor wheel is
wobbly.
Chipped surfaces–paint X
