Toro 38814 User Manual

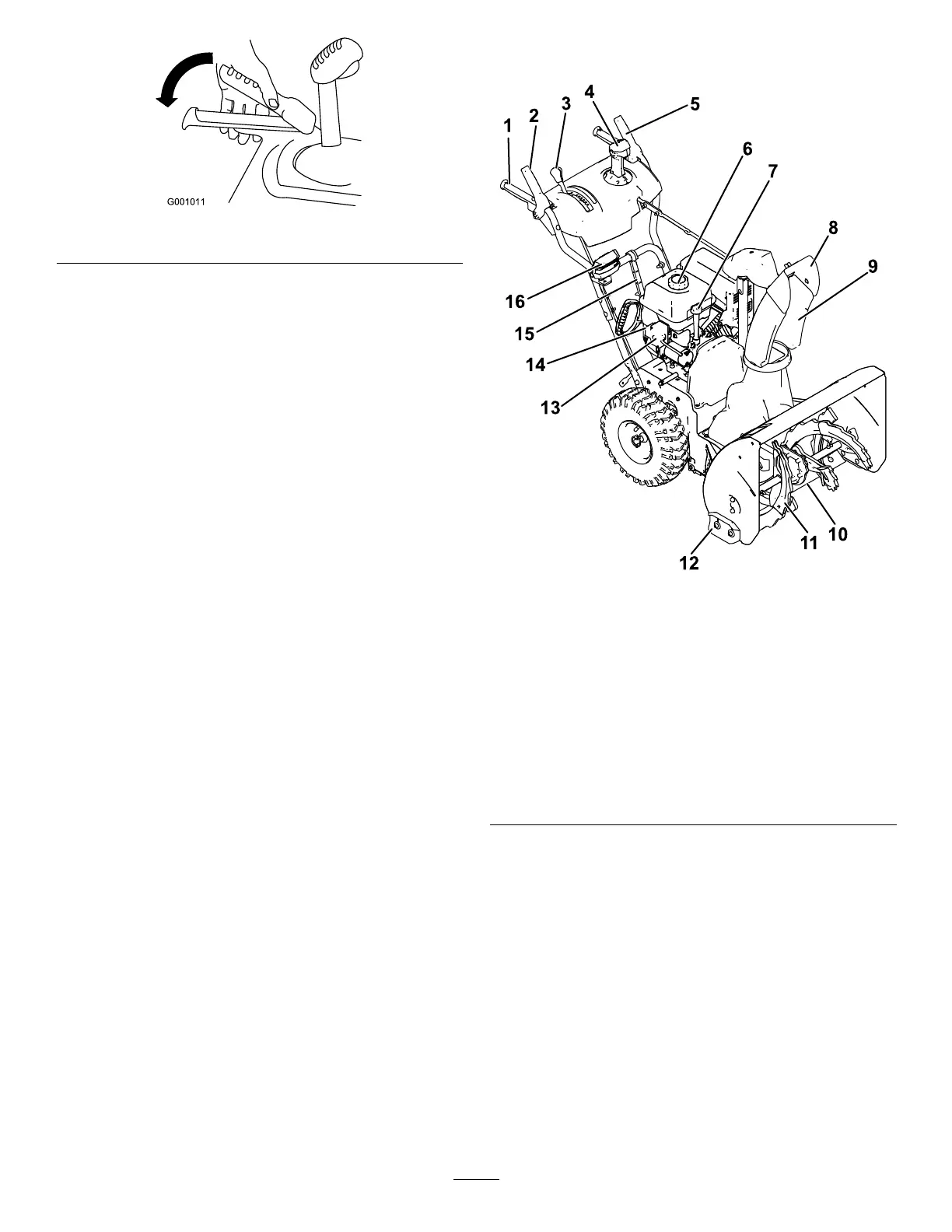

g001011
Figure10
Themachineshouldmoverearward.Ifthe
machinedoesnotmoveormovesforward,
completethefollowing:
A.Releasethetractionleverandshutoffthe
engine.
B.Disconnectthetrunnionfromthe
speed-selectorlever.
C.Turnthetrunniondownward(clockwise)on
thespeed-controlrod.
D.Connectthetrunniontothespeed-selector
lever.
4.Releasethetractionlever.
5.MovethespeedselectortoPosition1;referto
OperatingtheSpeedSelector(page16).
6.Squeezetheleft(traction)levertothehandgrip
(Figure10).
Themachineshouldmoveforward.Ifthe
machinedoesnotmoveormovesrearward,
completethefollowing:
A.Releasethetractionleverandshutoffthe
engine.
B.Disconnectthetrunnionfromthe
speed-selectorlever.
C.Turnthetrunnionupward(counterclockwise)
onthespeed-controlrod.
D.Connectthetrunniontothespeed-selector
lever.
7.Ifyoumadeanyadjustments,repeatthis
procedureuntilnoadjustmentsarerequired.
Important:Ifthemachinemoveswhenthe
tractionleverisinthereleasedposition,checkthe
tractioncable;refertoCheckingandAdjusting
theTractionCable(page21)ortakethemachine
toanAuthorizedServiceDealerforservice.
ProductOverview
g254701
Figure11
1.Handgrip(2)
9.Dischargechute
2.Auger/impellerlever10.Scraper
3.Speed-selectorlever
11.Auger
4.QuickStick®
discharge-chutecontrol
12.Skid(2)
5.Tractionlever13.Electric-startbutton
6.Fuel-tankcap14.Electric-startplug-in
7.Oil-lltube/dipstick15.Snow-cleanouttool
8.Chutedeector16.Headlight(Model37799
only)
11
