pavement,thenadjusttheskidsdowntothe

pavement.

Note:Iftheskidsbecomeexcessivelyworn,

youcanturnthemoverandsettheunusedside

towardthepavement.

CheckingandAdjustingthe

TractionCable

ServiceInterval:Aftertherst2hours—Inspect

thetractioncableandadjustitif

necessary.

Yearly—Inspectthetractioncableandadjustor

replaceitifnecessary.

Ifthemachinedoesnotdriveintheforwardorreverse

speedsoritdriveswhenyoureleasethetractionlever,

adjustthetractioncable.

Iftheleft(traction)cableisnotproperlyadjusted,do

thefollowingsteps:

1.Loosenthejamnut.

2.Engagethetractionleverandholditinplace

(Figure26).

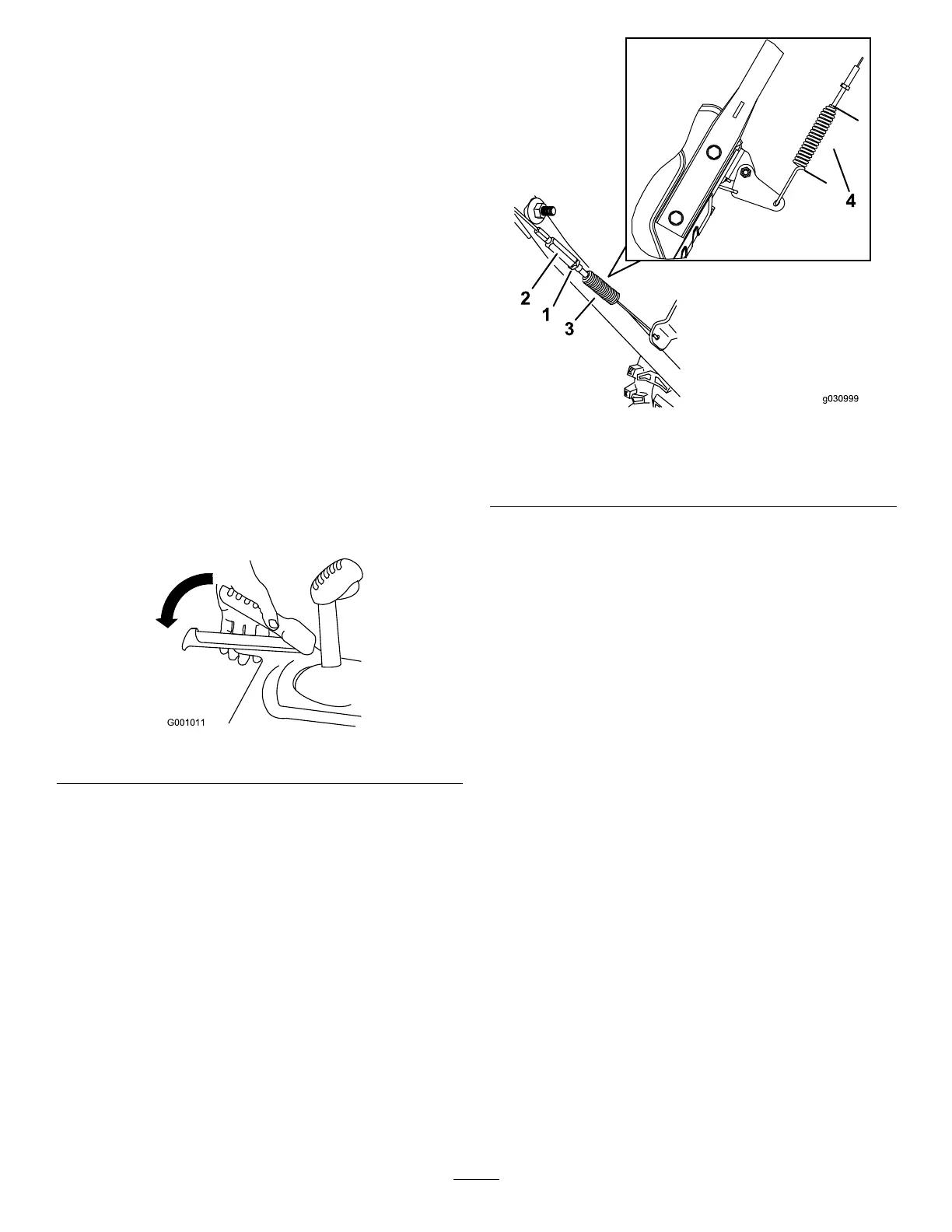

g001011

Figure26

3.Loosenortightentheturnbuckletoadjustthe

springlengthto5.5cm(2–3/16inches)as

showninFigure27.

g030998

Figure27

1.Jamnut

3.Spring

2.Turnbuckle

4.5.5cm(2–3/16inches)

4.Tightenthejamnut(Figure27),ensuringthat

thereisslighttensiononthecable.

5.Ifthetractioncableisproperlyadjustedbuta

problemremains,contactanAuthorizedService

Dealer.
