2
\
G005062

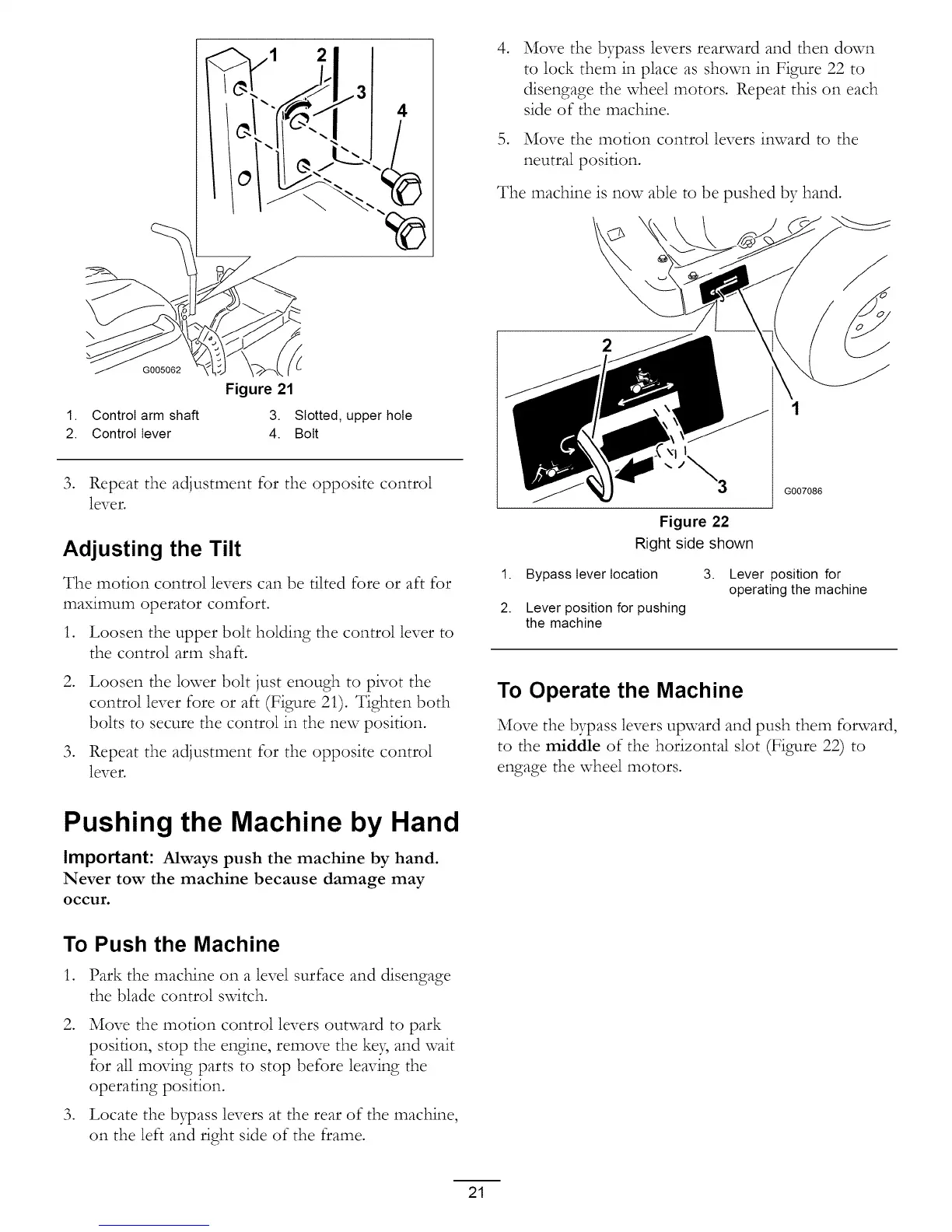

Figure 21
1. Control arm shaft 3. Slotted, upper hole
2. Control lever 4. Bolt
3. Repeat the adjustment for the opposite control
lever.
Adjusting the Tilt
The motion control levers can be tilted fore or aft for
maximum operator comfort.
1. Loosen the upper bolt holding the control lever to
the control arm shaft.
,
,
Loosen the lower bolt just enough to pivot the
control lever fore or aft (Figure 21). Tighten both
bolts to secure the control in the new position.
Repeat the adjustment for the opposite control
lever.
,
Move the bypass levers rearward and then down
to lock them in place as shown in Figure 22 to
disengage the wheel motors. Repeat this on each
side of the machine.
5. Move the motion control levers inward to the
neutral position.
The machine is now able to be pushed t)37hand.
2
G007086
Figure 22
Right side shown
1. Bypass lever location
2. Lever position for pushing
the machine
3. Lever position for
operating the machine
To Operate the Machine
Move the bypass levers upward and push them forward,
to the middle of the horizontal slot (Figure 22) to
engage the wheel motors.
Pushing the Machine by Hand
Important: Always push the machine by hand.
Never tow the machine because damage may
Occur.
To Push the Machine
1. Park the machine on a level surface and disengage
the blade control switch.
,
,
Move the motion control levers outward to park
position, stop the engine, remove the ke5 and wait
for all moving parts to stop before leaving the
operating position.
Locate the bypass levers at the rear of the machine,
on the left and right side of the frame.
21
