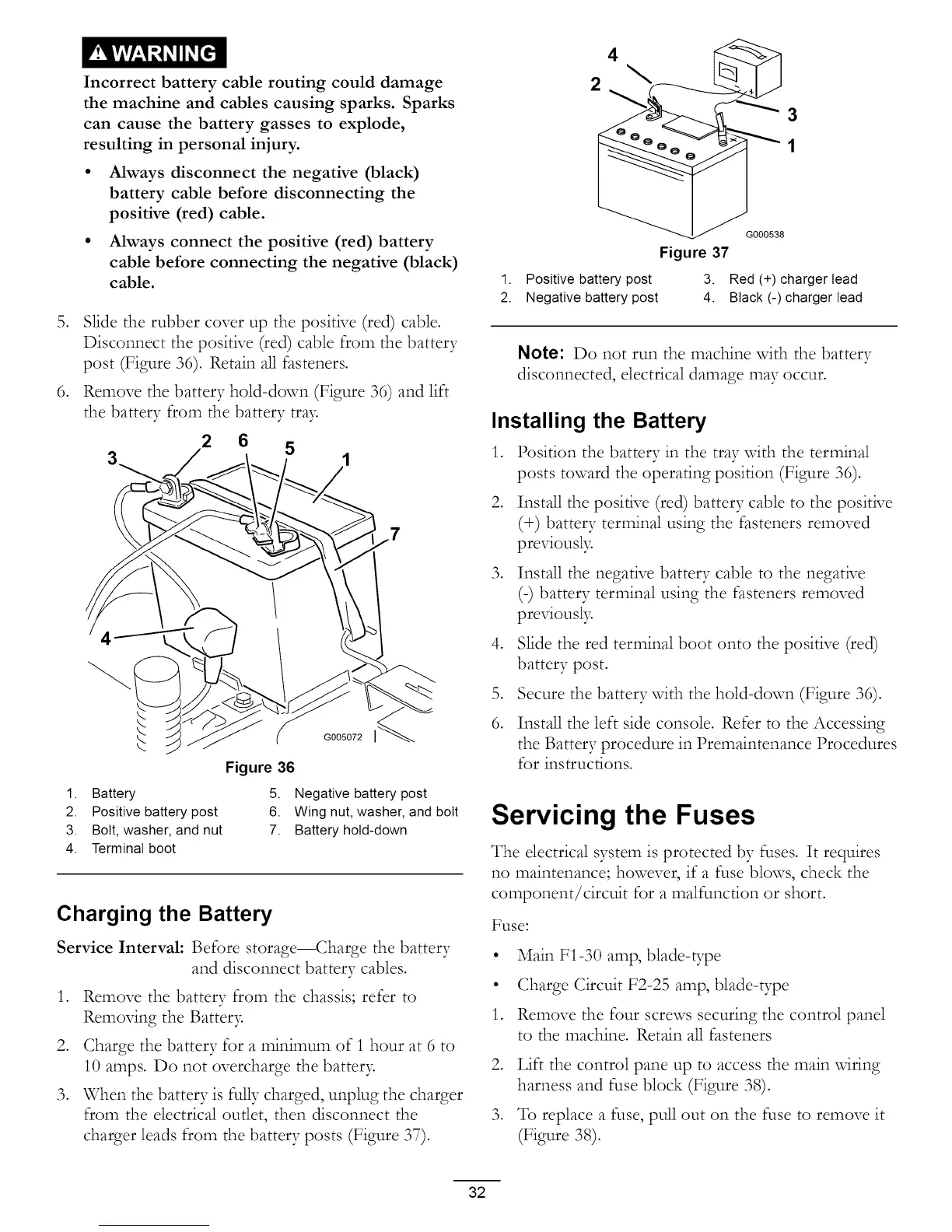

Incorrect battery cable routing could damage
the machine and cables causing sparks. Sparks
can cause the battery gasses to explode,
resulting in personal injury.
• Always disconnect the negative (black)
battery cable before disconnecting the
positive (red) cable.
• Always connect the positive (red) battery
cable before connecting the negative (black)
cable.
5. Slide the rubber cover up the positive (red) cable.
Disconnect the positive (red) cable from the battery
post (Figure 36). Retain all fasteners.
6. Remove the battery hold-down (Figure 36) and lift
the battery from the battery tray.
2 6 5
4
G005072
Figure 36
1. Battery 5. Negative battery post
2. Positive battery post 6. Wing nut, washer, and bolt
3. Bolt, washer, and nut 7. Battery hold-down
4. Terminal boot
Charging the Battery
Service Interval: Before storage--Charge the battery
and disconnect battery cables.
1. Remove the battery from the chassis; refer to
Removing the Batter>
2. Charge the battery for a minimum of I hour at 6 to
10 amps. Do not overcharge the batter>
3. When the battery is fully charged, unplug the charger
from the electrical outlet, then disconnect the
charger leads from the battery posts (Figure 37).
4
2
3
1
G000538
Figure 37
1. Positive battery post 3. Red (+) charger lead
2. Negative battery post 4. Black (-) charger lead
Note: Do not run the machine with the battery
disconnected, electrical damage may occur.
Installing the Battery
1. Position the battery in the tray with the terminal
posts toward the operating position (Figure 36).
2. Install the positive (red) battery cable to the positive
(+) battery terminal using the fasteners removed
previously.
3. Install the negative battery cable to the negative
(-) battery terminal using the fasteners removed
previousl)_
4. Slide the red terminal boot onto the positive (red)
battery post.
5. Secure the battery with the hold-down (Figure 36).
6. Install the left side console. Refer to the Accessing
the Battery procedure in Premaintenance Procedures
for instructions.
Servicing the Fuses
The electrical system is protected by fuses. It requires
no maintenance; however, if a fuse blows, check the
component/circuit for a malfunction or short.
Fuse:
* Main FI-30 amp, blade-type
* Charge Circuit F2-25 amp, blade-type
1. Remove the four screws securing the control panel
to the machine. Retain all fasteners
,
,
Lift the control pane up to access the main wiring
harness and fuse block (Figure 38).
To replace a fuse, pull out on the fuse to remove it
(Figure 38).
32
