Chapter 3
Setup
Adjusting and Installing the Cutting Unit
Parts Required
1 Cutting unit (order separately; contact your authorized Toro distributor)
1 Hex tube
1 Spring
1 Collar
1. Adjust the cutting unit to your desired settings; refer to the cutting unit Operator’s
Manual.
G404684

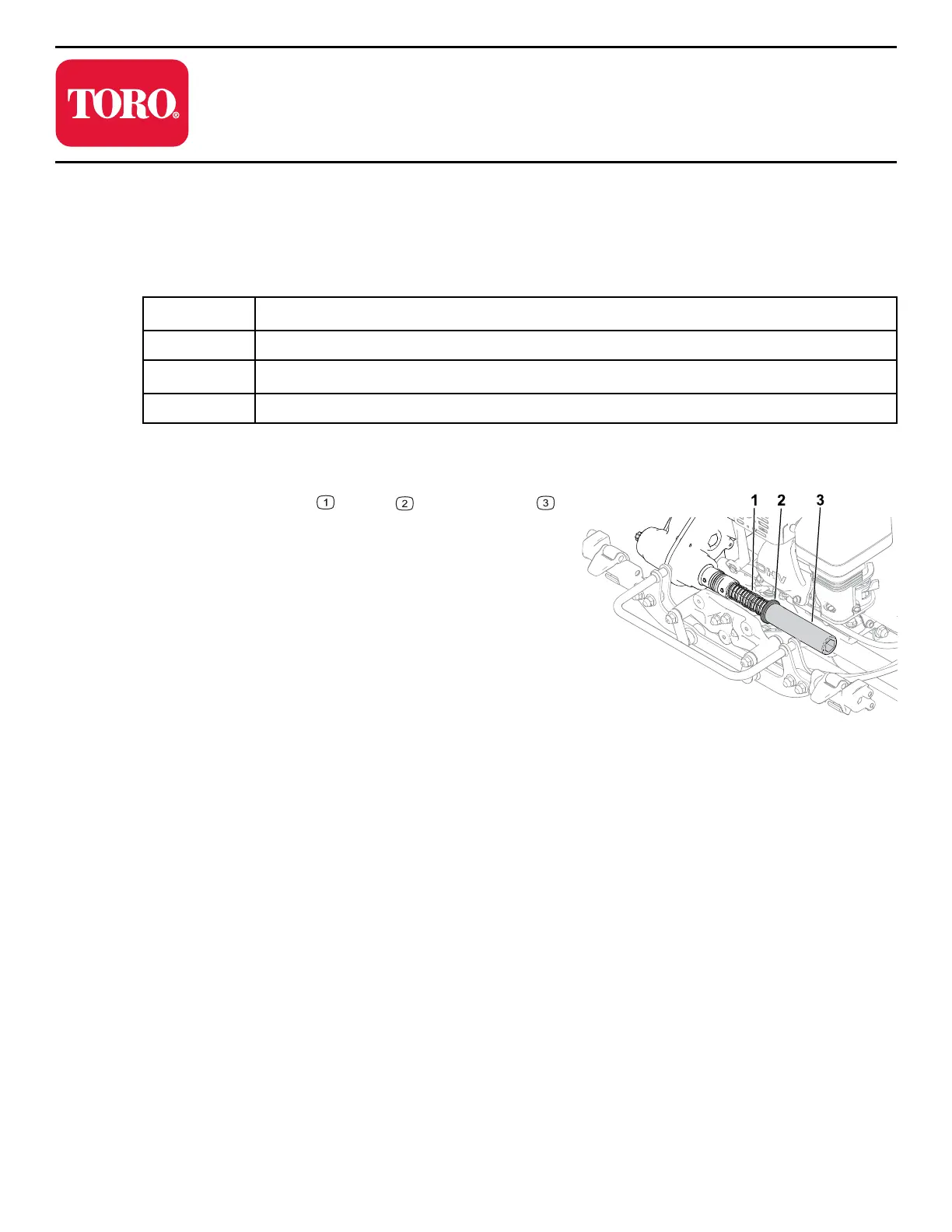

2. Install the spring , collar , and hex tube
to the transmission coupler shaft.
3. Install the cutting unit to the machine.
Installing the Transport Wheels
You can purchase an optional Transport Wheel Kit (Model 04123); contact your authorized
Toro distributor.
1. Ensure that the tires are inflated to 83 to 103 kPa (12 to 15 psi).
2. Move the kickstand to the T
RANSPORT-WHEEL-SERVICE position.
3460-887 A Page 3–1 Setup
To Next Page
