C.Cleananydebrisfrominsidethebelt
compartmentandfromaroundthe
compressionspring(Figure44).
D.Ensurethatthecompressionspringis
applyingthepropertensiononthebelt.
E.Tightenthebearinghousingmountingnut.
F.Installthebeltcover.
VisuallyInspectingtheReel
Clutch
Removetherubberplug(Figure45)fromtheholein
thefrontofthetransmissiontovisuallyinspectthe
reelclutchwhenmakingadjustments.
Important:Replacetheplugwhennishedto
preventwateranddebrisfromcontaminatingthe
clutch.

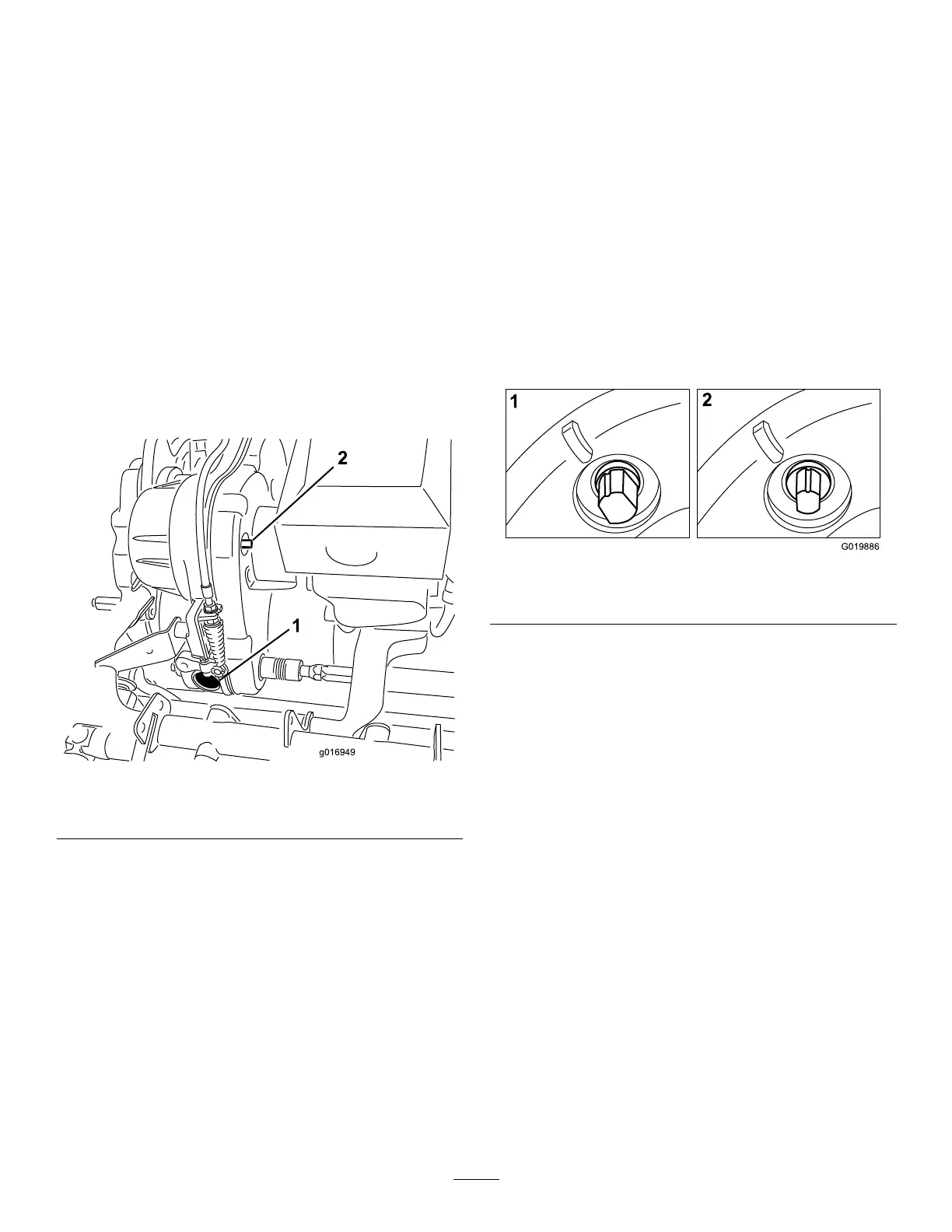

g016949
Figure45
1.Rubber-holeplug
2.Engage/disengageshaft
Engaging/Disengaging
theTransmission-Belt
Tensioner
Thetransmissionbeltistensionedbyaspring-loaded
idlerpulley.Ifyoumustengageordisengagethe
belttension,usea3/8-inchwrenchtorotatethe
engage/disengageshaft(Figure45)tothedesired
position.Rotatingtheshaft1/4-turn(90°)clockwise
disengagestheidlerfromthebelt(Figure46).
Note:Youmustdisengagethebelttensionbefore
removingthetransmissioncover
Note:Thetransmissionbeltisproperlytensioned
whenthealignmentmarksonthetransmissioncover
andtheengagementshaftarealigned.
g019886
Figure46
1.ENGAGED2.DISENGAGED
36
