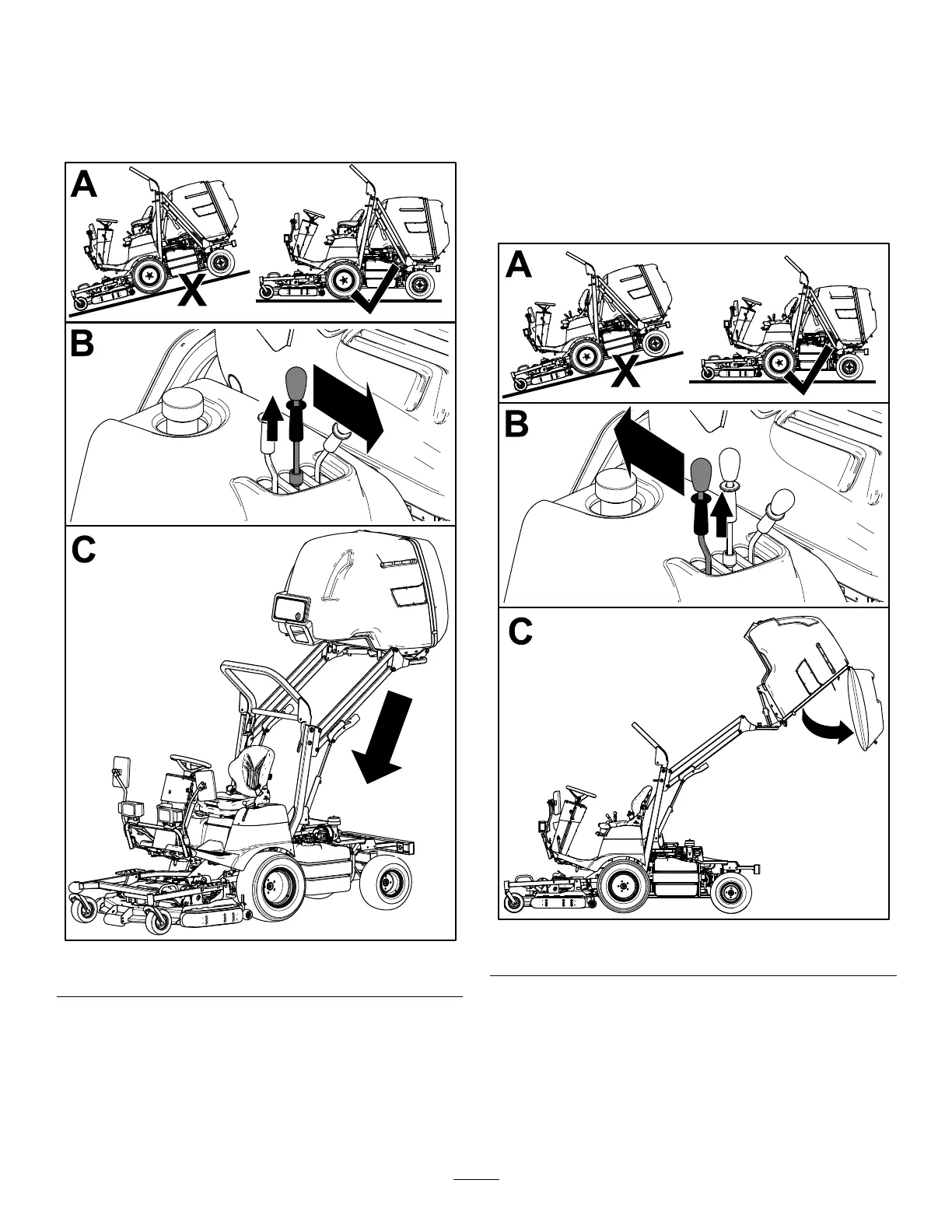

Lowering
the
Hopper
1.
Park
the
machine
on
a
level
surface.
2.
Pull
the
lock
collar
on
the
hopper
lift
lever
up
and
move
the
lever
fully
forward
to
lower
the
hopper
(
Figure
24
).
g215378
Figure
24
Dumping
the
Hopper
1.
Park
the
machine
on
a
level
surface.
2.
Pull
the
lock
collar
on
the
hopper
dump
lever
up
and
move
the
lever
rearward
to
dump
the
clippings
from
the
hopper
(
Figure
25
).
Note:
The
hopper
door
automatically
unlatches
when
dumping
the
hopper
.
Note:
Y
ou
can
dump
the
hopper
at
any
height.
g215381
Figure
25
31
30
32
