ProductOverview

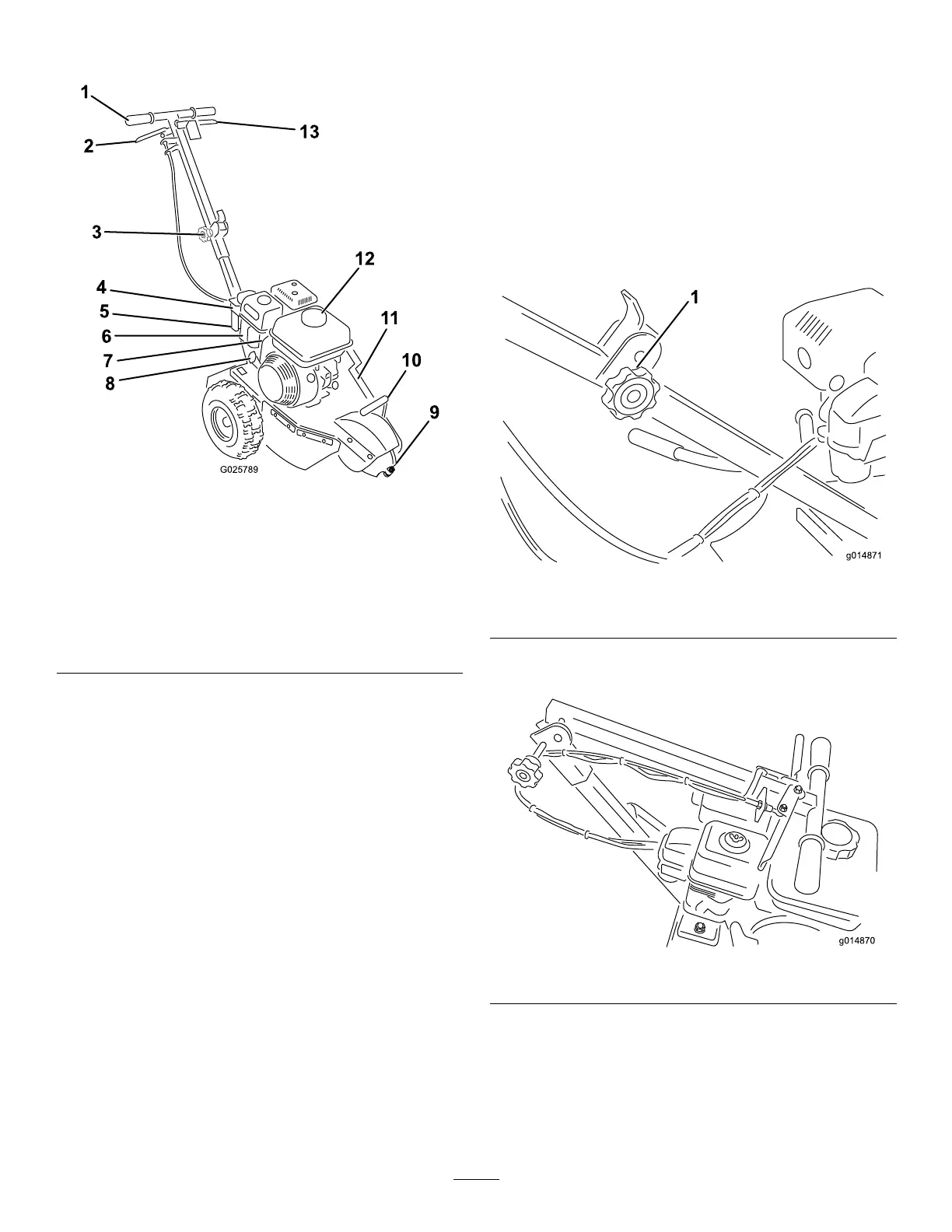

g025789

Figure3

1.Handle8.Recoil-starthandle

2.Throttlelever

9.Cuttingwheel

3.Handle-releaseknob

10.Lift

4.Airlter

11.Beltcover

5.Sedimentcup

12.Fuelcap

6.Fuelvalve

13.Safetybail

7.Choke

Controls

Becomefamiliarwithallthecontrols(Figure3and

Figure6)beforeyoustarttheengineandoperatethe

machine.

Handle-ReleaseKnob

Thehandleonthismachinecanbefoldeddownfor

easiertransport.

1.Unscrewthehandle-releaseknobfromthe

machine(Figure4).

g014871

Figure4

1.Handle-releaseknob

2.Foldthehandledowntowardthemachineand

screwtheknobbackontothehandle(Figure5).

g014870

Figure5

SafetyBail

Thesafetybailcontrolstheengine.Holdthesafety

bailagainstthehandlewhenyoustarttheengineand

usethemachine.Releasethesafetybailtoshutoff

theengine(Figure6).
