ServicingtheFuses
Theelectricalsystemisprotectedbyfuses.Itrequiresno
maintenance;however,ifafuseblows,checkthecomponent
orcircuitforamalfunctionorshort.
Fusetype:
Main—F1-30A,blade-type
ChargeCircuit—F2-25A,blade-type
1.Removethescrewssecuringthecontrolpaneltothe
machine.
Note:Retainallfasteners.
2.Liftthecontrolpaneuptoaccessthemainwiring
harnessandfuseblock(Figure40).
3.Toreplaceafuse,pulloutthefusetoremoveit(Figure
40).
30
25
30
25
G014921
2
1

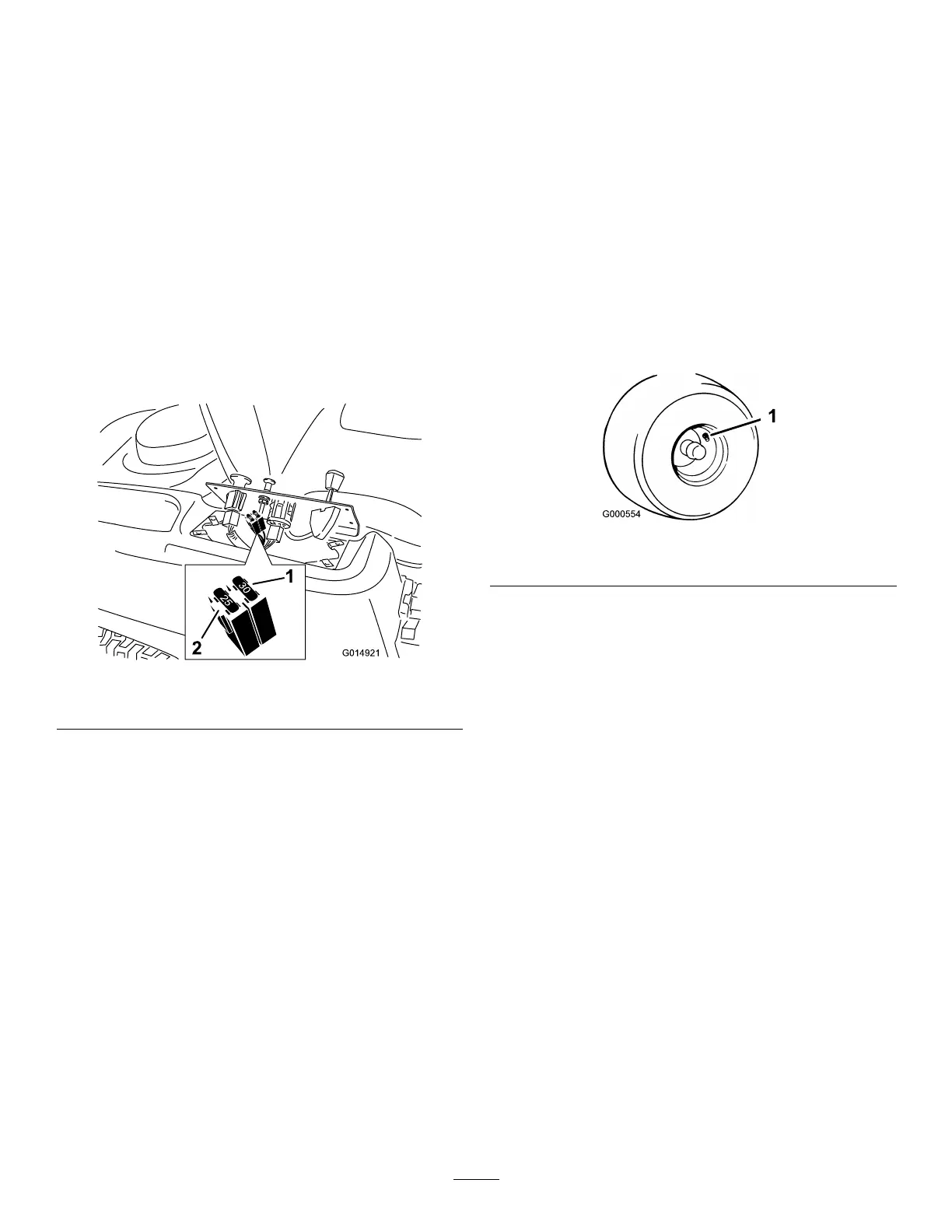

Figure40
1.Main—30A
2.Chargecircuit—25A
4.Returnthecontrolpaneltoitsoriginalposition.
Note:Usethescrewsremovedpreviouslytosecure
thepaneltothemachine.
DriveSystem
Maintenance
CheckingtheTirePressure
ServiceInterval:Every25hours—Checkthetirepressure.
Maintaintheairpressureinthefrontandreartiresas
specied.Uneventirepressurecancauseunevencut.Check
thepressureatthevalvestem(Figure41).Checkthetires
whentheyarecoldtogetthemostaccuratepressurereading.
Refertothemaximumpressuresuggestedbythetire
manufactureronthesidewallofthecasterwheeltires.
Inatethereardrivewheeltiresto90kPa(13psi).
Figure41
1.Valvestem
37

Table of Contents

Questions and Answers:

Toro TimeCutter SWX 4250 Specifications

General IconGeneral
Cutting Width42 inches
TransmissionHydrostatic
Weight500 lbs
Fuel Capacity3 gallons
Deck MaterialSteel
SteeringDual lever
Seat TypeHigh back
Cutting Height1.5 - 4.5 inches
Warranty3 years
