1.
2.
3
2
U
G000545
3
3 --_._ _3

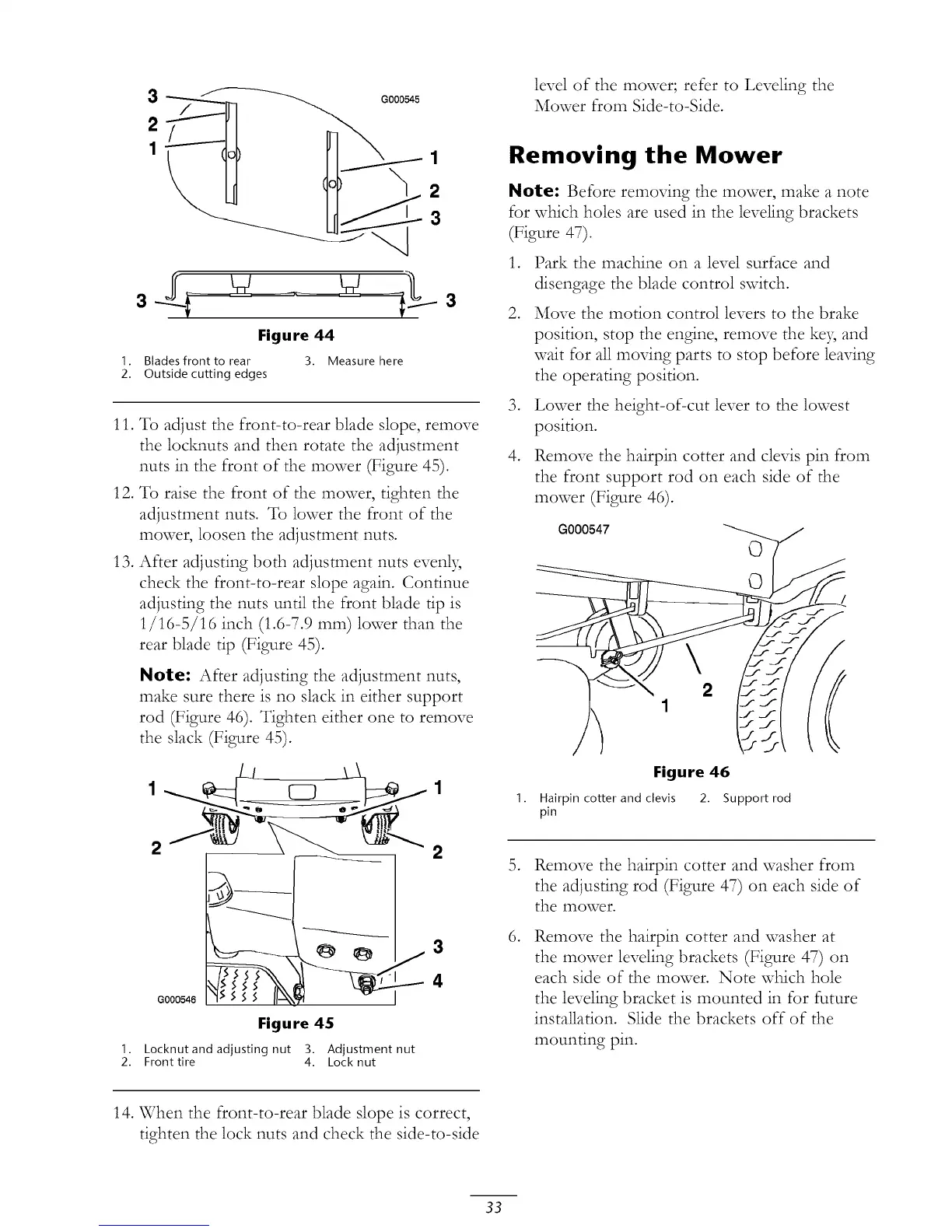

Figure 44
Blades front to rear 3. Measure here
Outside cutting edges
11• To adjust the front-to-rear blade slope, remove
the locMmts and then rotate the adjustment
nuts in the front of the mower (Figure 45)•
12. To raise the front of the mower, tighten the
adjustment nuts• To lower the front of the
mower, loosen the adjustment nuts•
13. After adjusting both adjustment nuts evenl3,
check the front-to-rear slope again• Continue
adjusting the nuts until the front blade tip is
1/16-5/16 inch (1•6-7•9 ram) lower than the
rear blade tip (Figure 45).
Note: After adjusting the adjustment nuts,
make sure there is no slack in either support
rod (Figure 46). Tighten either one to remove
the slack (Figure 45).
2
G000546
2
Figure 45
1. Locknutand adjusting nut 3. Adjustment nut
2. Front tire 4. Lock nut
level of the mower; refer to Leveling the
Mower from Side-to-Side•
Removing the Mower
Note: Before removing the mower, make a note
for which holes are used in the leveling brackets
(Figure 47)•
.
.
.
.
Park the machine on a level surface and
disengage the blade control switch.
Move the motion control levers to the brake
position, stop the engine, remove the ke), and
wait for all moving parts to stop before leaving
the operating position.
Lower the height-of-cut lever to the lowest
position.
Remove the hairpin cotter and clevis pin from
the front support rod on each side of the
mower (Figure 46)•
1.
Figure 46
Hairpin cotter and clevis 2. Support rod
pin
,
Remove the hairpin cotter and washer from
the adjusting rod (Figure 47) on each side of
the mower.
Remove the hairpin cotter and washer at
the mower leveling brackets (Figure 47) on
each side of the mower. Note which hole
the leveling bracket is mounted in for future
installation. Slide the brackets off of the
mounting pin.
14. When the front-to-rear blade slope is correct,
tighten the lock nuts and check the side-to-side
33
