Toro TimeMaster 21199 User Manual

ProductOverview

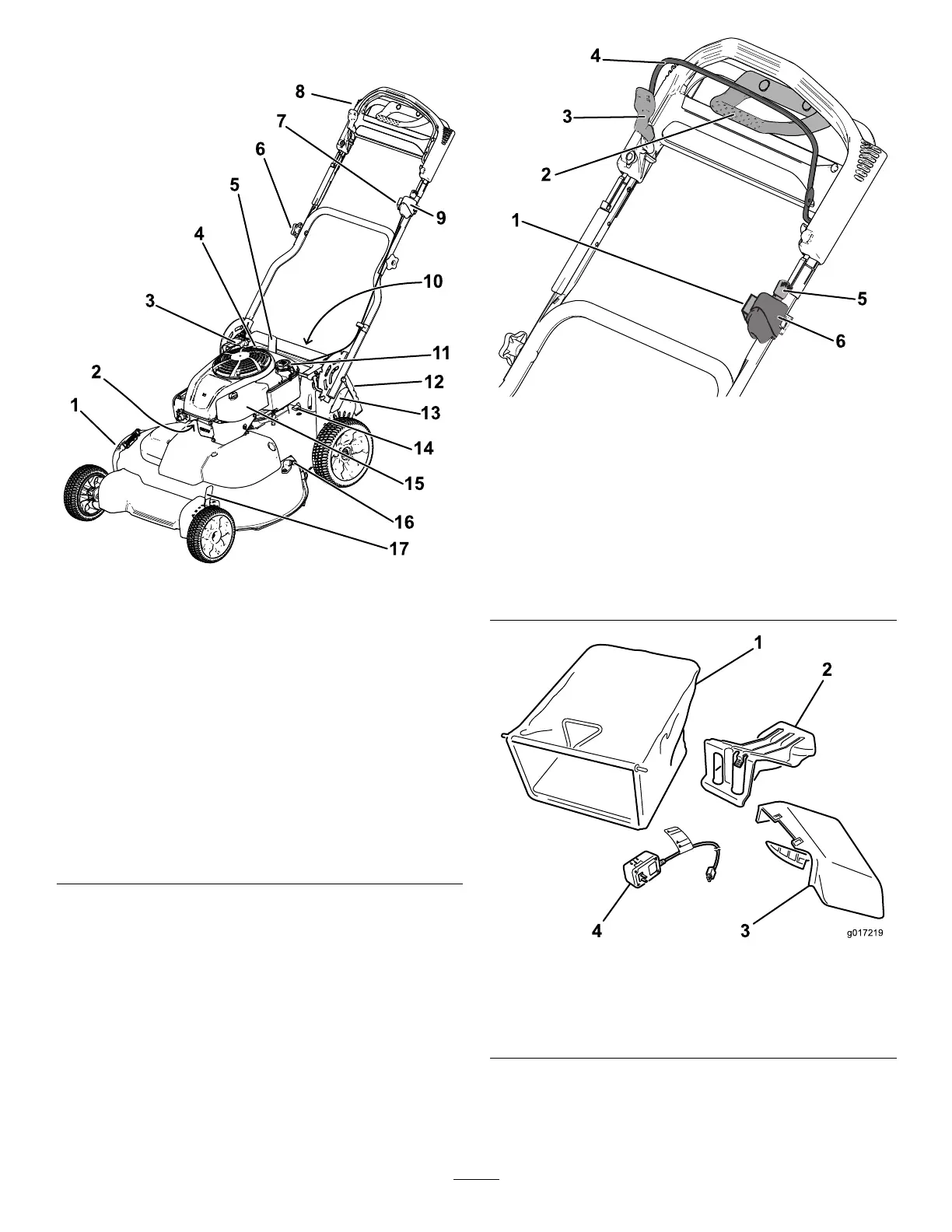

g289302
Figure7
1.Side-dischargedeector10.Battery(electric-start
modelonly;notshown)
2.Sparkplug
11.Fuel-tankcap
3.Recoil-starthandle
12.Reardeector
4.Oilll/dipstick
13.Rearcutting-heightlever
5.Handle-locklever14.Fuse
6.Handleknob(2)15.Airlter
7.Adjustmentforthe
self-propeldrive
16.Washoutport
8.Upperhandle17.Frontcutting-heightlever
9.Ignitionswitch
(electric-startmodelonly)
orengine-shutoffswitch
(standardmodelonly)
g289303
Figure8
Upperhandle
1.Adjustmentforthe
self-propeldrive
4.Blade-controlbar
2.Traction-assisthandle
5.Ignitionkey(electric-start
modelonly)
3.Blade-control-barlock6.Ignitionswitch
(electric-startmodelonly)
orengine-shutoffswitch
(standardmodelonly)
g017219
Figure9
1.Grassbag3.Side-dischargechute
2.Rear-dischargeplug
(installed)
4.Batterycharger
(electric-startmodelonly)
8

Toro TimeMaster 21199 Specifications

General

Engine Displacement	223cc
Cutting Width	30 inches
Deck Material	Steel
Mulching Capability	Yes
Warranty	3-Year Full Warranty
Cutting Height	1.25 - 4.25" (3.2 - 10.8 cm)
Speed Range	0 - 4.5 mph (0 - 7.2 km/h)
