Operation
19
Adjusting
Dial-A-Height
The Dial-A-Height control (Fig. 11) is used to limit
the downward travel of the attachment. The
Dial-A-Height knob is rotated to change the location
of this stop, up or down.
1. Raise the attachment lift lever: Refer to Raising
Attachments. In the raised position the
Dial-A-Height knob (Fig. 11) can be rotated to
change the stop location. Turn clockwise to raise
and counterclockwise to lower the height of the
attachment.
2. The Dial-A-Height indicator (Fig. 11) will show
the change, high to low, in attachment lift height
as adjustment is made.
Positioning
the Seat

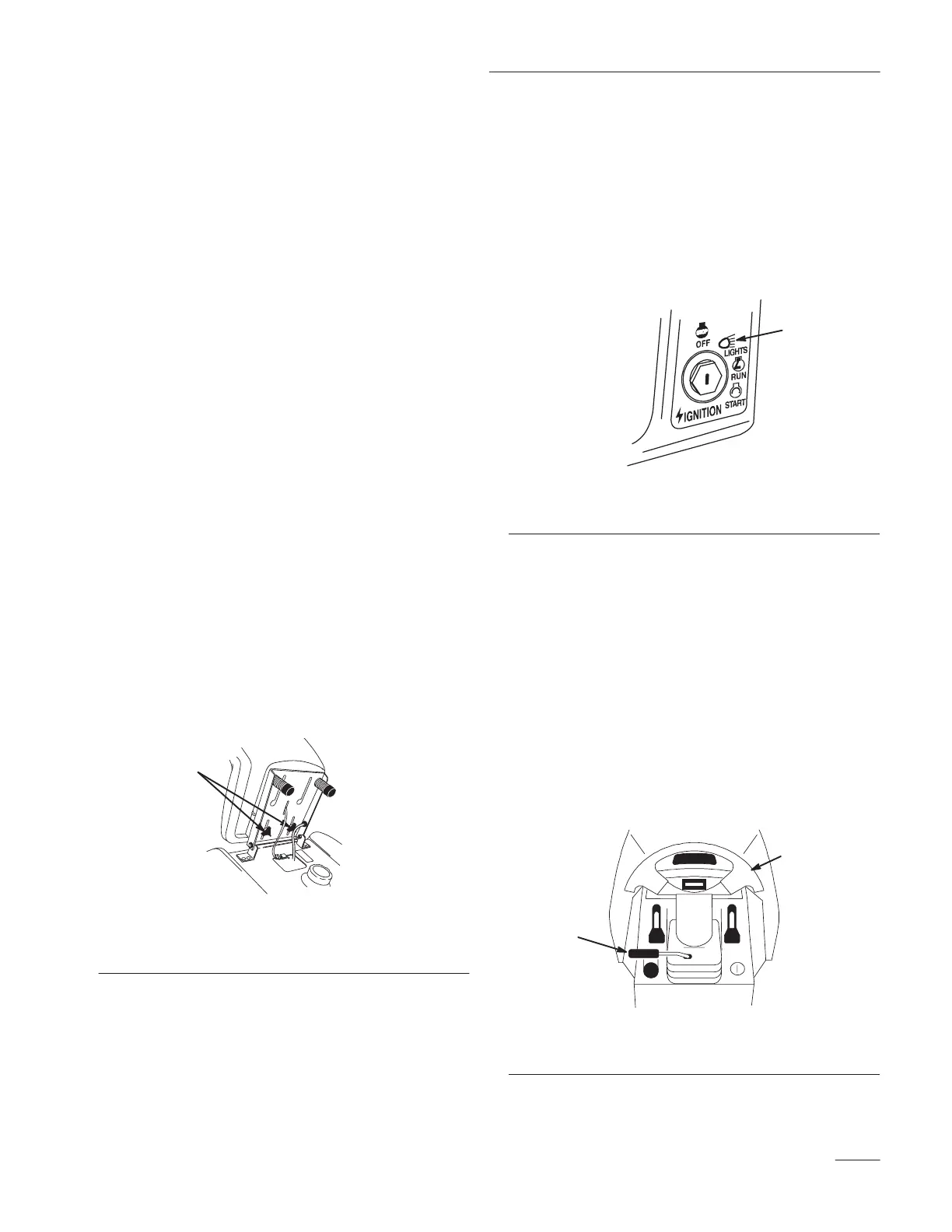

The seat can move forward and backward. Position
the seat where you have the best control of the
machine and are most comfortable.
1. Raise the seat and loosen the adjustment knobs
(Fig. 12).
2. Slide the seat to the desired position and tighten
the knobs.
1
m-4223
Figure 12
1. Adjustment
knob
Headlights
The headlights are turned on with a separate position,
“LIGHTS”, of the ignition switch (Fig. 13). The
lights are on while the ignition switch is in the
“LIGHTS” position even with the engine off.
Remove the key when the machine is left unattended
so lights can not be turned on discharging the battery.
1208
1
Figure 13
1. Lights
Positioning
the
T
ilt Steering Wheel
The steering wheel has four tilt locations. Position the
steering wheel where you have the best control of the
machine and are most comfortable.
1. Lift the tilt lever to release the lock (Fig. 14).
2. Move the steering wheel to a comfortable
position; then release the lever to lock.
1
2
1203b
Figure 14
1. Tilt
lever
2.
Steering wheel
