Toro Wheel Horse XL380H 71252 User Manual

DriveSystem
Maintenance
ServicingtheTransaxleFluid
ServiceInterval:Every100hours—Servicethe
transaxleuid.
Alwayskeeptheuidlevelatthefulllevelwhenthe
transaxleiscold.
Note:Thetransaxleisfactorysealedanddoesnot
requireoilchanges.
FluidType:SAE20W-50engineoil(APIservice
SH/CDisrecommended)
CheckingtheFluidLevel
1.Parkthetractoronalevelsurface.
2.Disengagethebladecontrol(PTO)andsetthe
parkingbrake.
3.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
4.Cleanaroundthellplug(Figure30)sothatdirt
cannotfallintothereservoirifyouneedtoadduid.

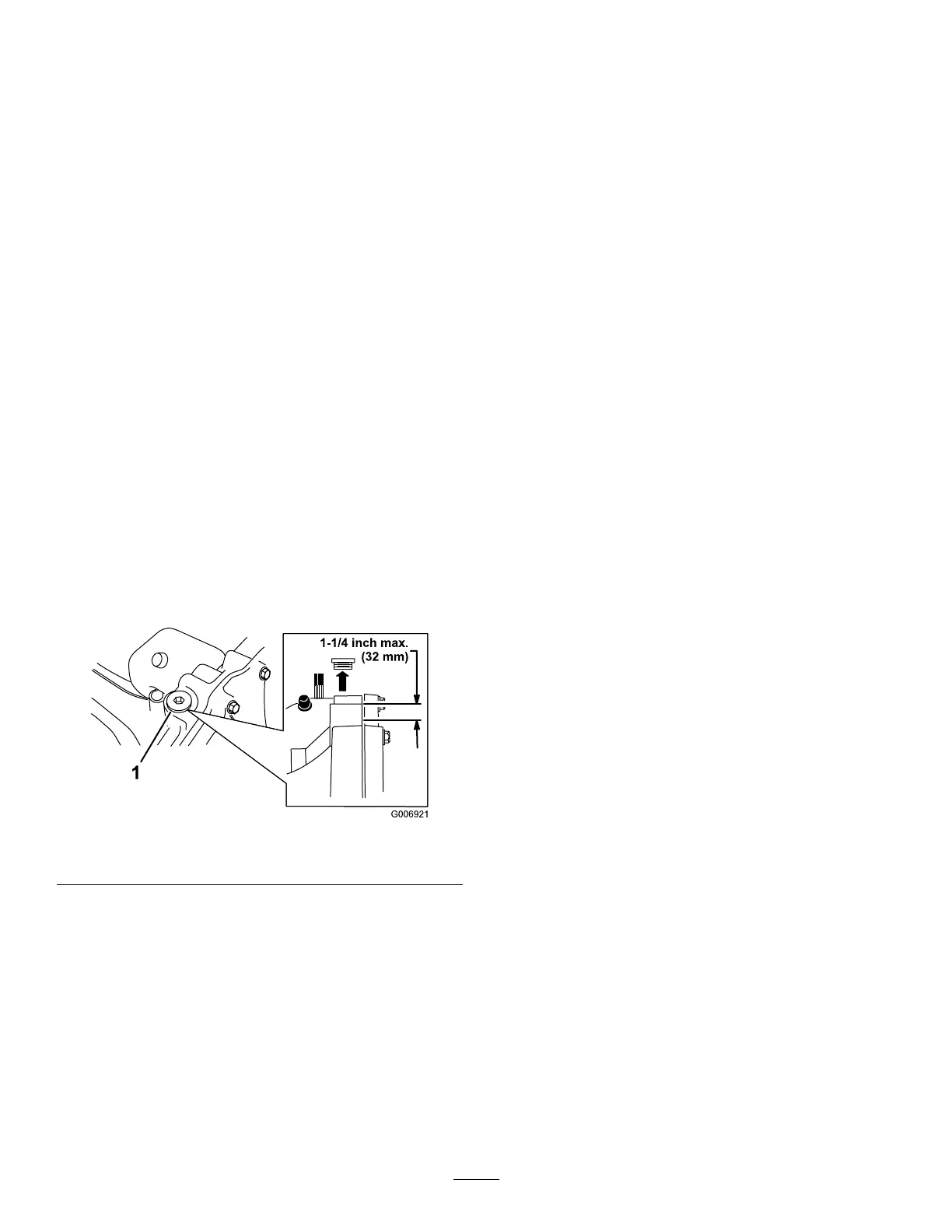

Figure30
1.Fillplug
5.Removethellplugandchecktheuidlevel.
Note:Thelevelshouldbeamaximumof1-1/4inch
(32mm)belowthetopofthellport(Figure30).
Adduidifnecessary.
6.Installthellplug.
CoolingSystem
Maintenance
CleaningtheCoolingSystem
ServiceInterval:Every100hours
Useadrybrushtocleangrassandaccumulateddebris
fromtheenginedaily.
Important:Topreventcontaminatingthefuel
system,donotusewatertocleantheengine.
26

Toro Wheel Horse XL380H 71252 Specifications

General

Engine Type	4-Cycle
Engine Power	12.5 hp
Transmission	Hydrostatic
Engine	12.5 HP Briggs & Stratton OHV
Cutting Height	1.5-4.0 in
Number of Blades	2
Weight	430 lb
Deck Material	Steel
Oil Capacity	2 quarts
Blade Engagement	Manual
Turning Radius	18 inches
