Changing the Transaxle Fluid
Change the transaxle fluid every 800 operating hours or
yearly, whichever occurs first.
1. Position the vehicle on a level surface, set the parking
brake, turn the ignition off, and remove the key.
2. Remove the drain plug from the right side of the
reservoir (Fig. 41) and let the fluid flow into a drain
pan. Install and tighten the plug when the fluid stops
draining.
Note: Dispose of the used oil at a certified recycling center.
1
m–4849
2

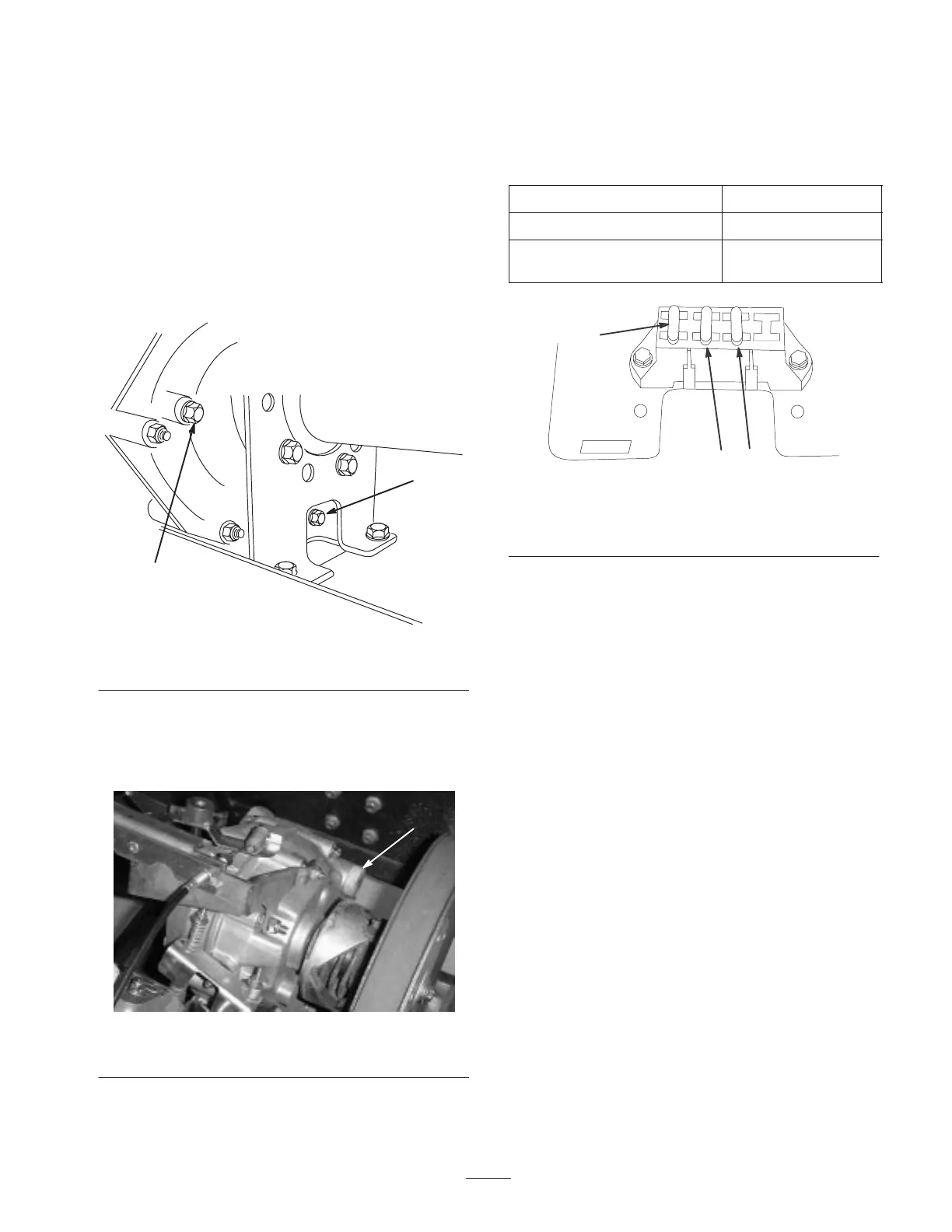

Figure 41
1. Drain plug 2. Level indicator hole
3. Fill the reservoir (Fig. 42) with approximately 1-1/2 qt.
(1.4 liters) of SAE 10W30 motor oil or until the oil
level is at the bottom of the level indicator hole
(Fig. 41).
1
Figure 42
1. Oil fill
4. Start the engine and operate it to fill the system.
Recheck the oil level and replenish it, if required.
Replacing the Fuses
There are 3 fuses in the electrical system. They are located
beneath the bed in a box on the right hand side of the frame
(Fig. 43).
Ignition System 10 amp.
Lights 10 amp.
Power Point 10 amp.
(15 amp. max.)
1
2
3
m–5323
Figure 43
1. Ignition system
2. Lights
3. Power point
