Setup
Note: Determine the left and right side of the machine from the normal operating position.
Description Qty. Use
ROPS frame
Capscrew 1/2–13 x 3” lg.
Locknuts 1/2–13
1
4
4
Mount ROPS (Rollover Protection System)
Operator’s Manual (vehicle) 2 Read before operating the machine.
Parts Catalog 1
Install ROPS
1. Insert each side of ROPS into mounting bracket on each
side of vehicle frame, positioning ROPS as shown in
figure 1.
2. Secure each side of ROPS to mounting brackets with
(2) 1/2–13 x 3” lg. capscrews and locknuts.

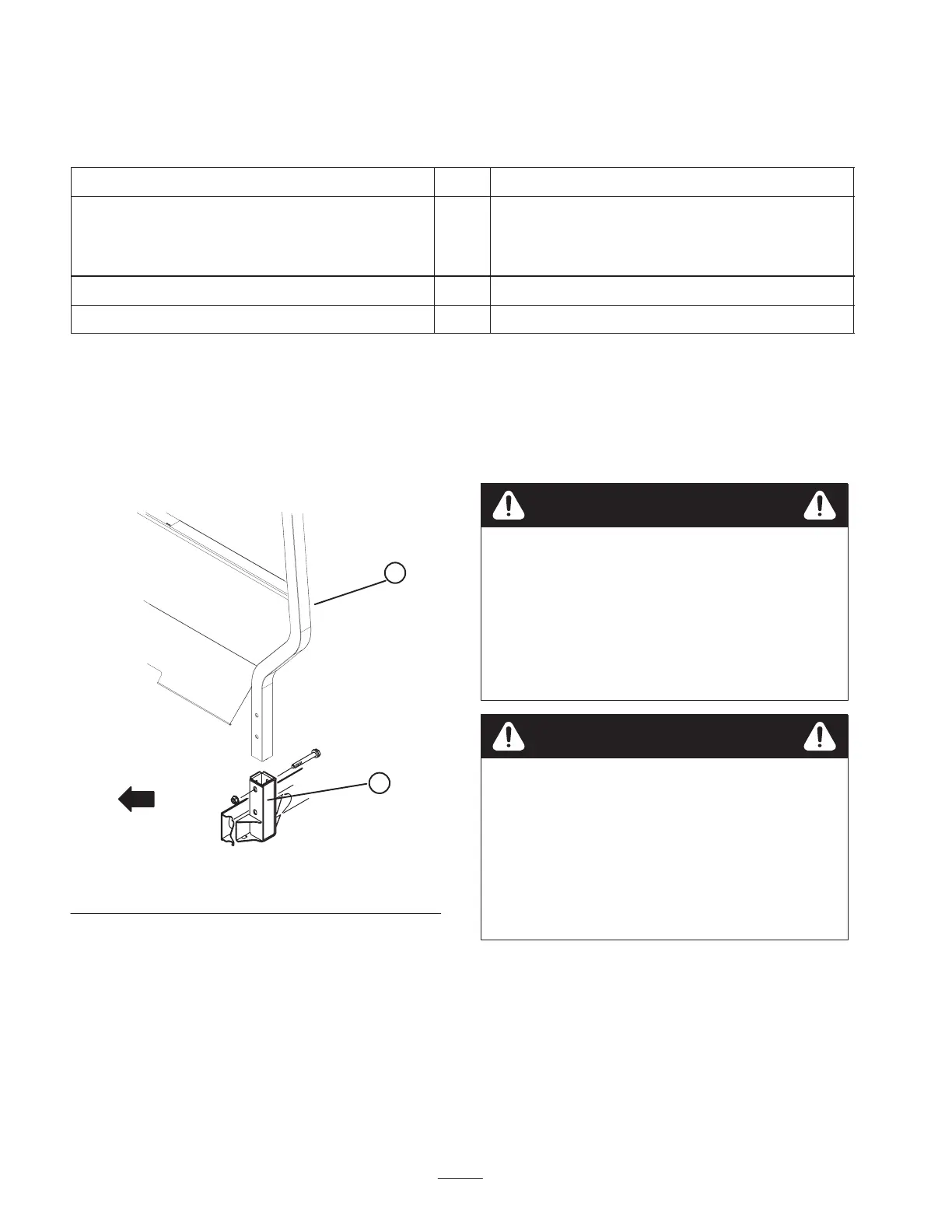

FRONT
1
2
Figure 1
1. ROPS 2. Mounting bracket
Activate and Charge Battery
If battery is not filled with electrolyte or activated, it must
be removed from vehicle, filled with electrolyte and
charged. Bulk electrolyte with 1.260 specific gravity can be
purchased from a local battery supply outlet.
CALIFORNIA
Proposition 65 Warning
Battery posts, terminals, and related accessories
contain lead and lead compounds, chemicals
known to the State of California to cause cancer
and reproductive harm. Wash hands after
handling.
Warning
Danger
Battery electrolyte contains sulfuric acid which is a
deadly poison and causes severe burns.
• Do not drink electrolyte and avoid contact with
skin, eyes or clothing. Wear safety glasses to
shield your eyes and rubber gloves to protect
your hands.
• Fill the battery where clean water is always
available for flushing the skin.
To Next Page
