Important When replacing tires, on the 4wd vehicle,
only use replacements approved for the Workman. Use of
tires not approved may cause turf damage or accelerated
drive train damage.
Check Brake Fluid
The brake fluid reservoir is shipped from the factory filled
with “DOT 3” brake fluid. Check level before engine is
first started and every 8 hours or daily, thereafter.
1. Park machine on a level surface.

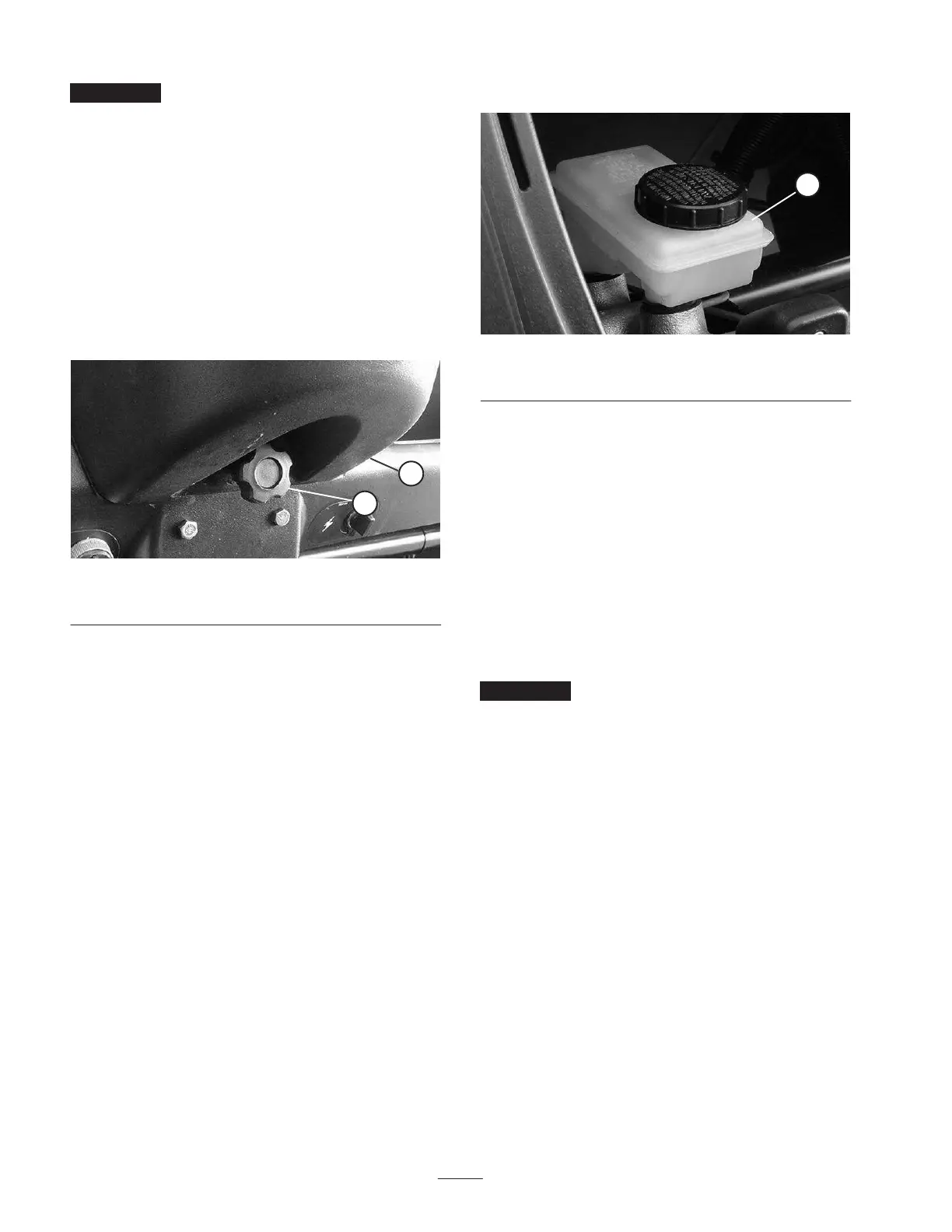

2. Loosen knob securing cup holder to dash (Fig. 11).
Remove cup holder from dash.
2
1
Figure 11
1. Cup holder 2. Knob
3. Fluid level should be up to FULL line on reservoir.
1
Figure 12
1. Brake fluid reservoir
4. If fluid level is low, clean area around cap, remove
reservoir cap and fill to proper level. DO NOT
OVERFILL.
5. Reinstall cup holder to dash.
Check Pump Belt Tension
Check belt for wear, cracking or improper tension. Check
tension by depressing belt at mid span of crankshaft and
pump pulleys with 22 lbs. of force. A new belt should
deflect .48–.58 in. A used belt should deflect .55–.65 in. If
deflection is incorrect, proceed to page 39 for tensioning
procedure. If correct, continue operation.
Important Improper belt tension may result in
increased steering effort.
To Next Page
