Toro Workman GTX Series User Manual

Checkingthe
Transaxle-FluidLevel
ServiceInterval:Every100hours
FluidType:SAE80W-90(APIMT-1)orSAE80W-90
(APIGL-5)
1.Parkthemachineonalevelsurface.
2.Engagetheparkingbrake.
3.Shutofftheengineandremovethekey.
4.Removethellplugonthetransaxle(Figure56).
Note:Theuidlevelshouldbeevenwiththe
bottomofthellplug.
g035761

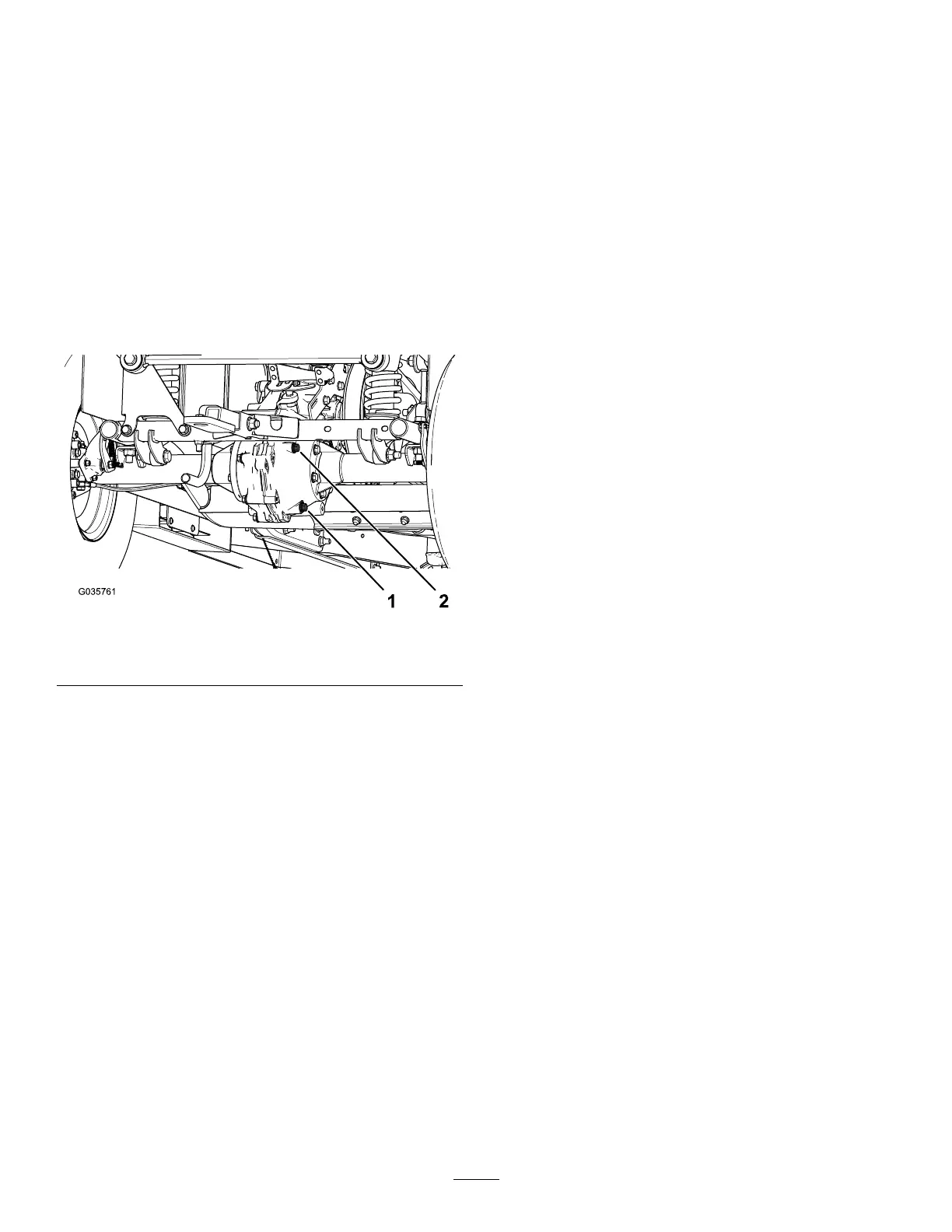

Figure56
1.Drainplug2.Fillplug
5.Iftheuidlevelislow,removethellplugand
addthespecieduiduntilitrunsoutofthehole
(Figure56).
6.Replacethellplugandtorqueitto20to27
N∙m(15to20ft-lb).
ChangingtheTransaxle
Fluid
ServiceInterval:Every800hours/Yearly(whichever
comesrst)
FluidType:SAE80W-90(APIMT-1)orSAE80W-90
(APIGL-5)
FluidCapacity:1.6L(1.7USqt)
1.Alignadrainpanunderthedrainplug(Figure
56).
2.Removethellplugandtheseal(Figure56).
Note:Retainthellplugandsealforinstallation
instep6.
3.Removethedrainplugandtheseal,andallow
theuidtodraincompletely(Figure56).
Note:Retainthedrainplugandsealfor
installationinstep4.
4.Installthedrainplugandseal,andtorqueitto
20to27N∙m(15to20ft-lb).
5.Fillthetransaxlewiththespecieduiduntilit
runsoutofthellhole.
6.Installthellplugandseal,andtorqueitto20to
27N∙m(15to20ft-lb).
