Chapter 1: Introduction
1無
PC IN
— For use when connecting a personal
computer.
2無
HDMI
®
IN
— High-Definition Multimedia
Interface input receives digital audio and
uncompressed digital video from an HDMI
device or uncompressed digital video from a
DVI device. HDMI connection is necessary to
receive 1080p signals.
3無
PC/HDMI-1 (AUDIO) IN
— PC audio input
terminals are shared with HDMI-1 analog audio
input terminals, and their use can be configured
in the
Audio Setup
menu (
page 44).
4無
ANT/CABLE
— Antenna input that supports
analog (NTSC) and digital (ATSC) off-air
antenna signals and analog and digital Cable TV
(QAM) signals.
5無
Digital Audio OUT
— Optical audio output in
Dolby Digital or PCM (pulse-code modulation)
format for connecting an external Dolby Digital
decoder, amplifier, A/V receiver, or home theater
system with optical audio input.
6無
VIDEO IN
— Standard (composite) video and
standard audio inputs plus for connecting devices
with composite video.
Note: Standard (composite) video cable
carry only video information; separate
audio cables are required for a complete
connection.
7無 ColorStream
®
HD
— ColorStream
®
high-
definition component video input (with standard
stereo audio inputs) for connecting devices with
component video output, such as a Toshiba DVD
player with ColorStream
®
.
Note: Component video cables carry only
video information; separate audio cables
are required for a complete connection.

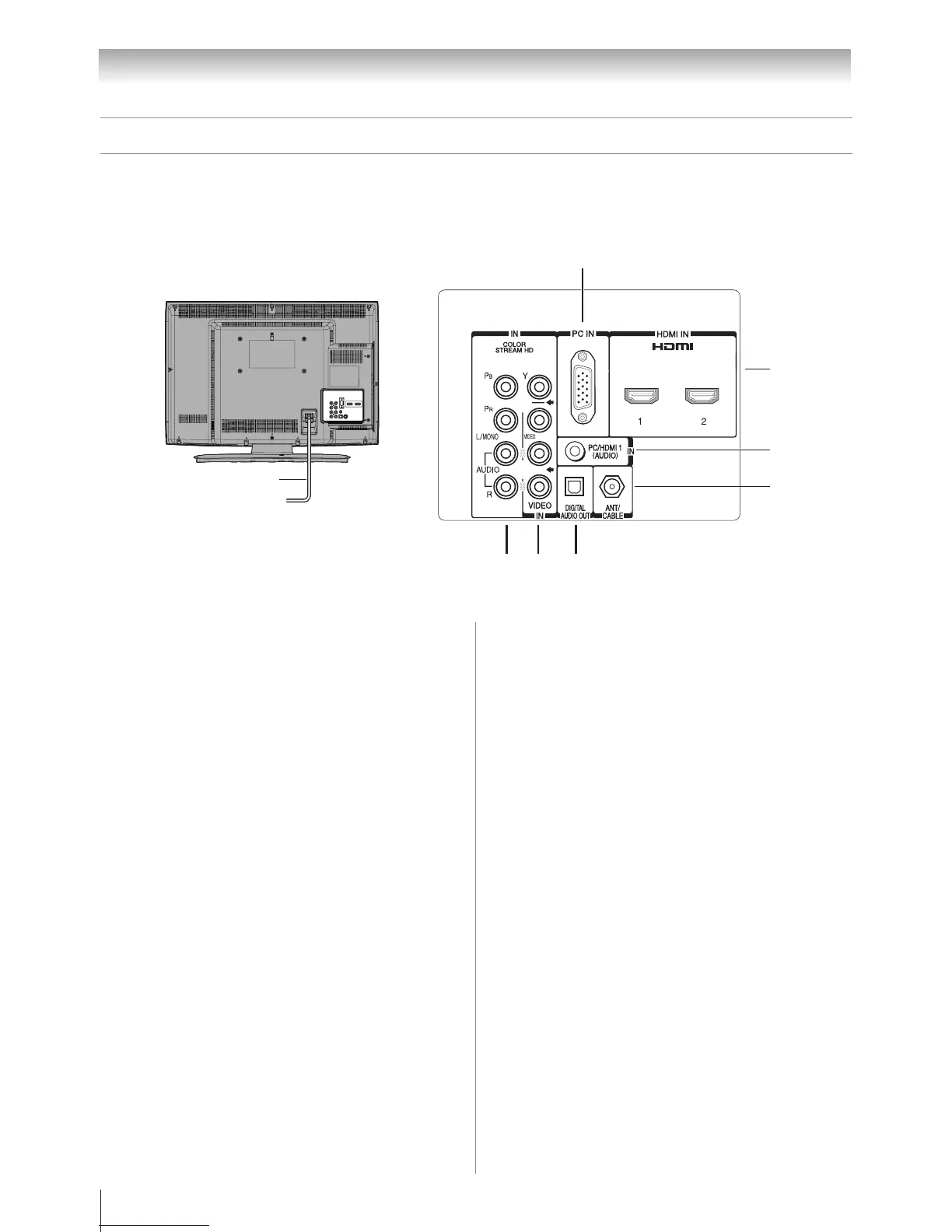

TV back panel connections
For an explanation of cable types and connections, see pages 13–19.
1
6
7 5
2
3
4
TV back
Power Cord
