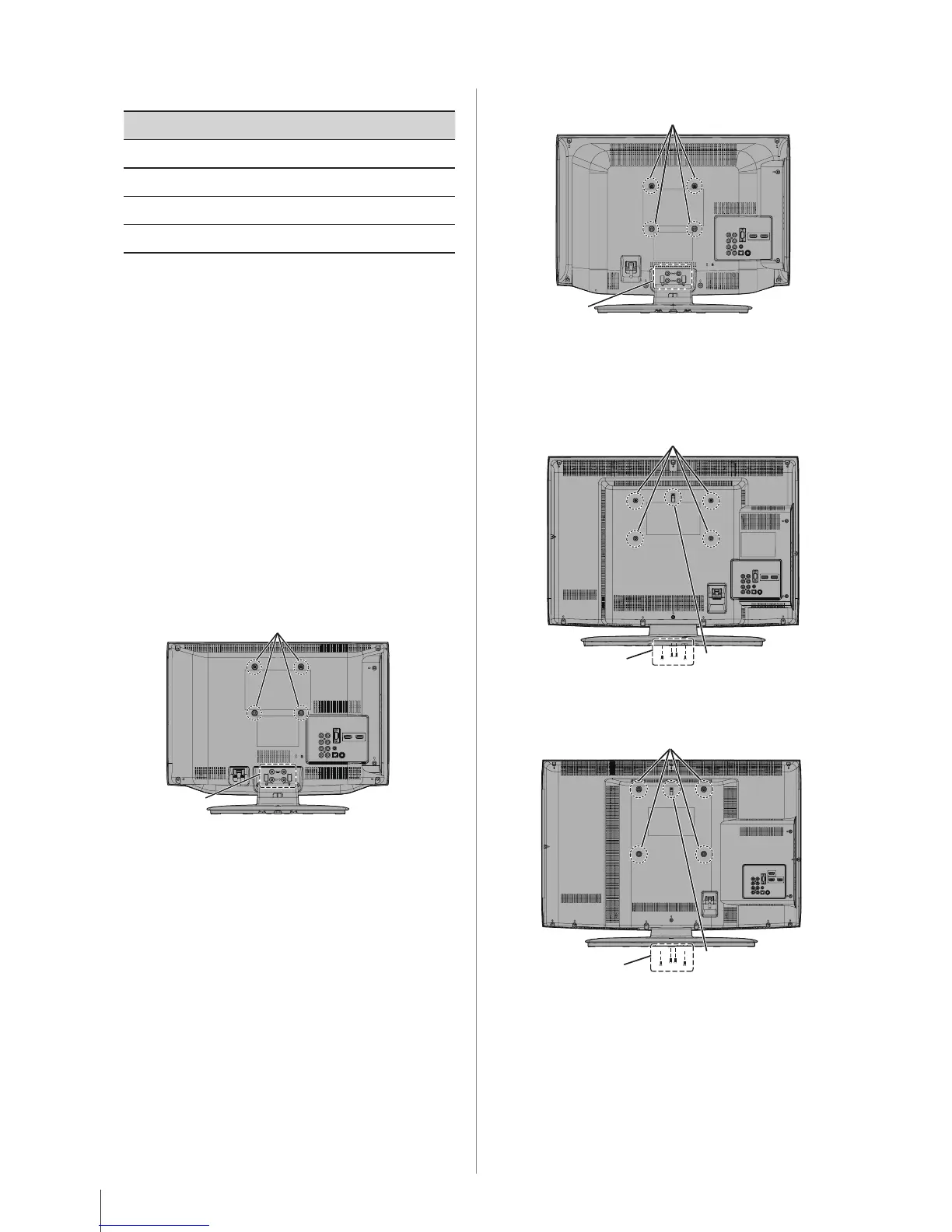

VESA Mounting Pattern
TV Size Hole Pattern(HxV) Screw Size
19” 100x100 mm M4
22” 100x100 mm M4
26” 200x100 mm M4
32” 200x200 mm M6
(unit in mm)
Removing the Pedestal Stand
1)
Carefully lay the front of the unit face down on a
flat, cushioned surface such as a quilt or blanket.
Leave the stand protruding over the edge of the
surface.
Note: Extreme care should always be used
when removing the pedestal stand to avoid
damage to the LCD panel.
2) Remove the four screws shown in the right
diagram. This will allow removal of the pedestal
stand.
3) Once you have removed all four screws, holding
the pedestal stand in place, remove the pedestal
stand from the TV.
CAUTION:
Always place the TV on the floor or a sturdy,
level, stable surface that can support the weight of the unit.
CAUTION: Always place the TV on the floor or a
sturdy, level, stable surface that can support the
weight of the unit. To secure the TV, use a sturdy
strap from the hook(s) on the rear of the TV to a wall
stud, pillar, or other immovable structure. Make sure
the strap is tight, secure, and parallel to the floor.
22” TV
Four screws
VESA Mounting Pattern
Four screws
19” TV
VESA Mounting Pattern
26” TV
Four screws
VESA Mounting Pattern
Hook
Sturdy strap
(as short as possible)
32” TV
Four screws
VESA Mounting Pattern
Hook
Sturdy strap
(as short as possible)
