9

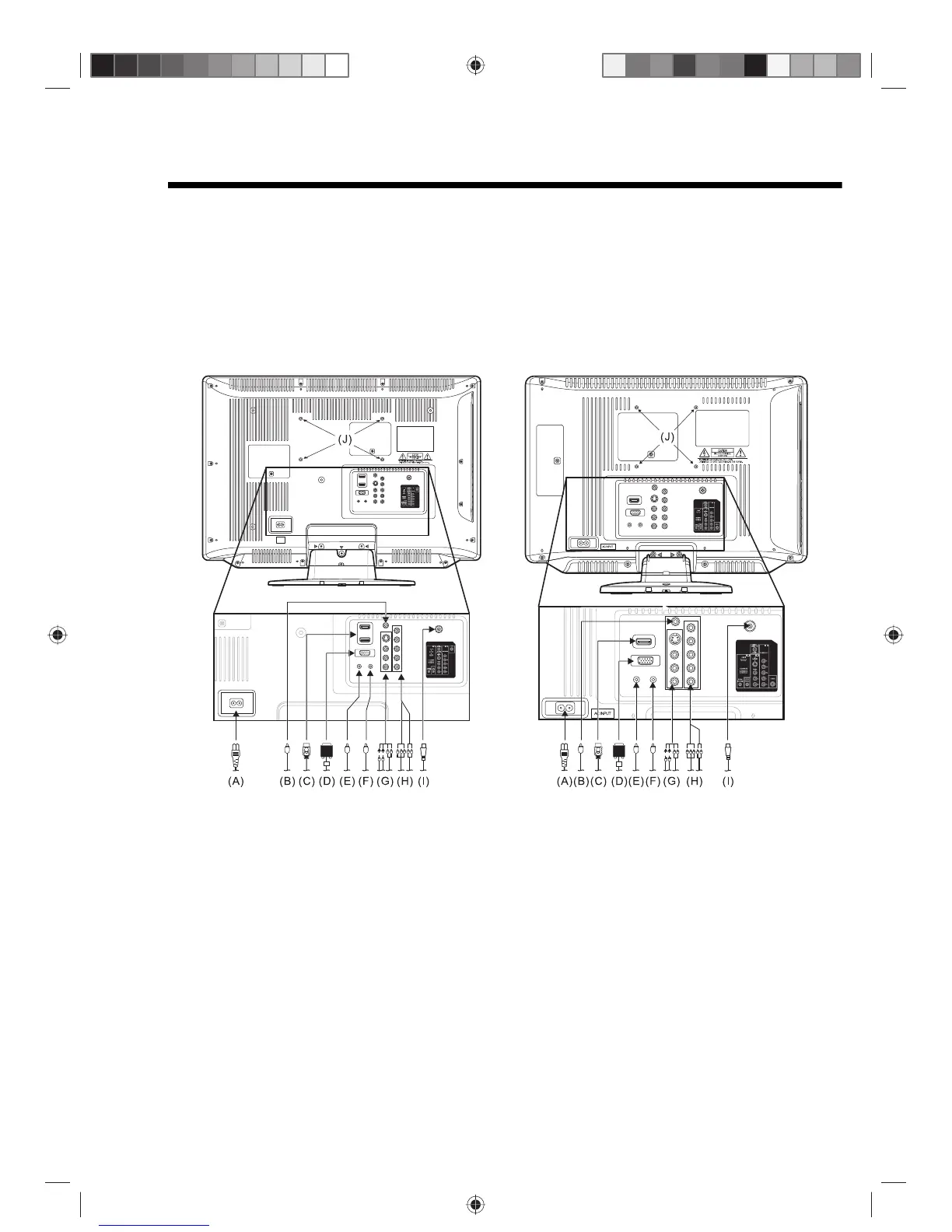

I/O connections
Note:
Before you connect other appliances:
• To avoid potentially damaging your set, make sure all items are switched off and disconnected from the mains power when
you make the connections.
• Arrange the desired connection.
• When you have finished making the connections, reconnect the mains power to the unit and switch it back on.
Connect your aerial as shown below. Connections to other equipment is explained further on pages 53 ~ 55.
If you have problems with reception, consult a TV antenna installer.
(A) AC input: Connect the supplied power cable to an AC 220 ~ 240V/50Hz mains power supply only - do not attempt to
connect it to any other type of supply. Never try to repair a damaged AC power cord with isolation-tape - this should be
repaired by a specialist or replaced. Do not let your pet loose near the cable. Animals biting into the cable could receive a
fatal electric shock, and could cause a hazard to others.
(B) COAXIAL DIGITAL AUDIO OUT: Digital output for CD/DVD & DVB-T (see page 54).
(C) HDMI1/HDMI2 input: Connects to digital audio or video sources, such as set-top boxes, video game consoles or AV
receivers.
(D) PC MONITOR input (PC): See page 53.
(E) HDMI/PC AUDIO input: See pages 53.
(F) HEADPHONE jack: Plug headphones with a mini plug (3.5 mm) into this jack.
(G) AV (S-VIDEO, VIDEO, Audio L/R) input: Input for analog A/V-Signal (S-Video or Composite). See page 55.
(H) COMPONENT input: See page 55.
(I) Aerial input socket: Connect the outdoor aerial to the aerial input socket (see page 54).
(J) Bracket holes: Fix a wall mounting bracket (not supplied) here.
