Chapter 1: Introduction

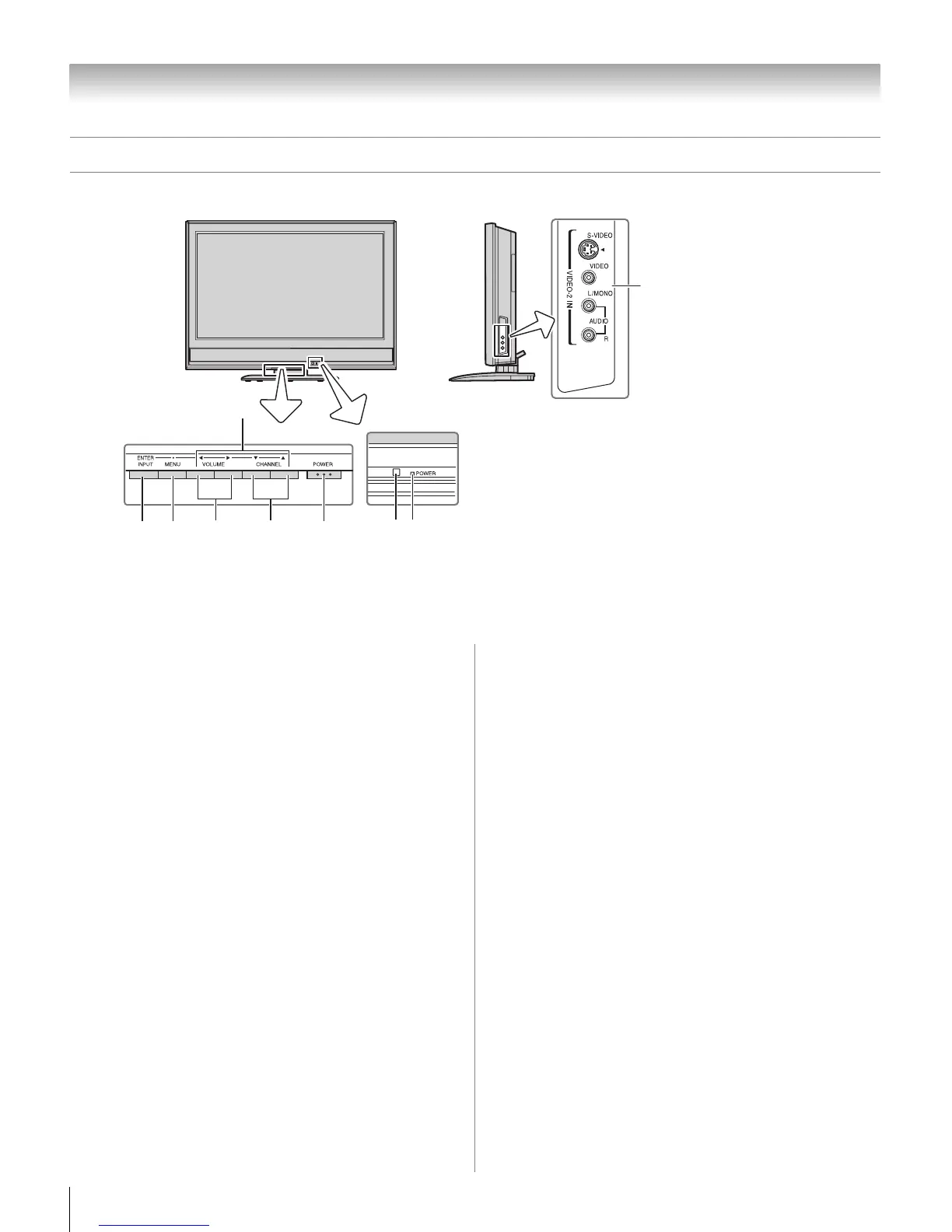

TV front and side panel controls and connections
3
6
54
7
8
2
1
9
TV Side panel
TV front
Control panel
1 Remote sensor — Point the remote control toward the
remote sensor. See “Remote control effective range”
(- page 17).
2 Red LED — Red light indicates power is on.
3 POWER — Press to turn the TV on and off.
4 CHANNEL Bb — When no menu is on-screen, these
buttons change the channel (programmed channels only;
- page 26). When a menu is on-screen, these buttons
function as up/down menu navigation buttons.
5 VOLUME C c — When no menu is on-screen, these
buttons adjust the volume level. When a menu is on-
screen, these buttons function as left/right menu
navigation buttons.
6 MENU — Press to access the menu system
(- page 24).
7 INPUT (ENTER) — Repeatedly press to change the
source you are viewing (VIDEO-1/ColorStream HD-1,
VIDEO-2, ColorStream HD-2, HDMI, PC, or antenna/
cable channel).
When a menu is on-screen, the INPUT button on the TV’s
control panel functions as the Enter button.
8 ARROWS BbC c — When a menu is on-screen, these
buttons function as up/down/left/right menu navigation
buttons.
9 VIDEO-2 IN — Standard (composite) video and standard
(analog) audio inputs plus optional S-video input for
connecting devices with either composite video or S-
video output.
Note:
• Standard (composite) video and S-video cables carry
only video information; separate audio cables are
required for a complete connection.
• Do not connect both a composite video and an S-video
cable to VIDEO-2 simultaneously or the picture
performance will be unacceptable.
