10
Connecting
your TV
You will need:
• two coaxial cables
• one set of standard A/V cables
• one set of component video cables
• one pair of standard audio cables

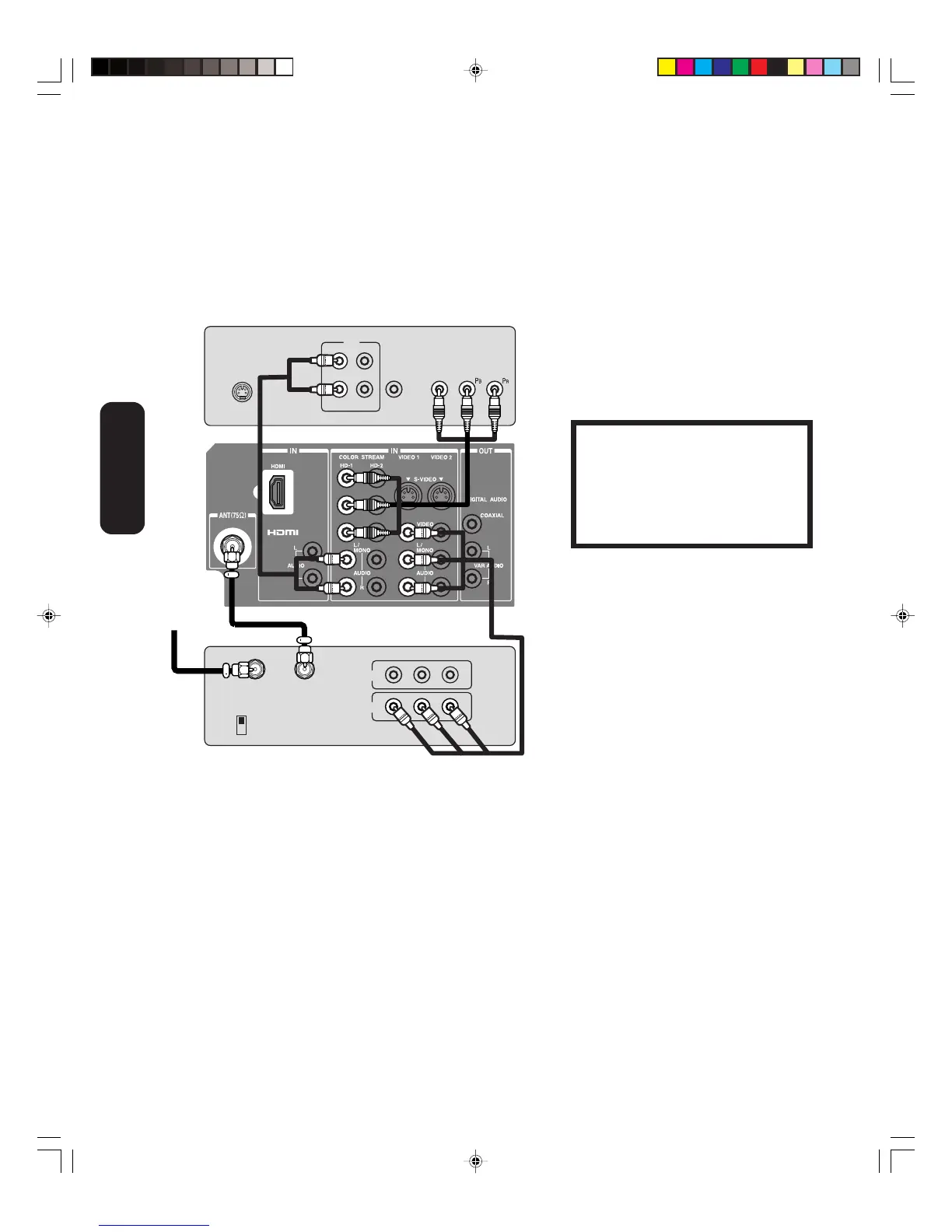

Connecting a DVD player with ColorStream
®
(component video) and a VCR
This connection allows you to watch DVD, VCR, or TV programs and
record TV programs. You can record from one source while watching a
program from another source. Your TV has ColorStream
®
(component
video) inputs. Connecting your TV to a component video compatible DVD
player, such as a Toshiba DVD player with ColorStream
®
, can greatly
enhance picture quality and performance.
IN
OUT
VIDEO
IN from ANT
CH 3
CH 4
OUT to TV
AUDIO
LR
OUT
AUDIO
OUT
VIDEO
COMPONENT VIDEO
Y
L
R
S-VIDEO
DVD player with Component video
Back panel of TV
Stereo VCR
From
antenna
Note:
You can connect the component video cables
to either set of ColorStream jacks on the TV
(HD-1 or HD-2).
The ColorStream HD-1 and HD-2 jacks can
be used with Progressive (480p, 720p) and
Interlaced (480i, 1080i) scan systems. A
1080i signal will provide the best picture
performance.
The unauthorized recording, use, distri-
bution or revision of television programs,
videotapes, DVDs, and other materials is
prohibited under the Copyright Laws of
the United States and other countries,
and may subject you to civil and criminal
liability.
3W70721A_En_p07-14 20/3/06, 9:32 AM10
