Introduction
Connecting
your TV
Using the
Remote Control
Setting up
your TV
Using the TV’s
Features
Appendix
Index
13
Note:
1
DVI/HDCP = Digital Visual Interface/
High-bandwidth Digital Content Protection.
2
EIA/CEA-861 compliance covers the
transmission of uncompressed digital
video with high-bandwidth digital content
protection, which is being standardized for
reception of high-definition video signals.
3
Consult your consumer electronics dealer
for availability.
Caution:
To ensure that the DVI/HDCP device is reset
properly, it is recommended that you follow
these procedures:
• When turning on your electronic
components, turn on the TV first,
and then the DVI/HDCP device.
• When turning off your electronic
components, turn off the DVI/HDCP
device first, and then the TV.
TV
DVI/HDCP device
(for example, set-top box or DVD player)

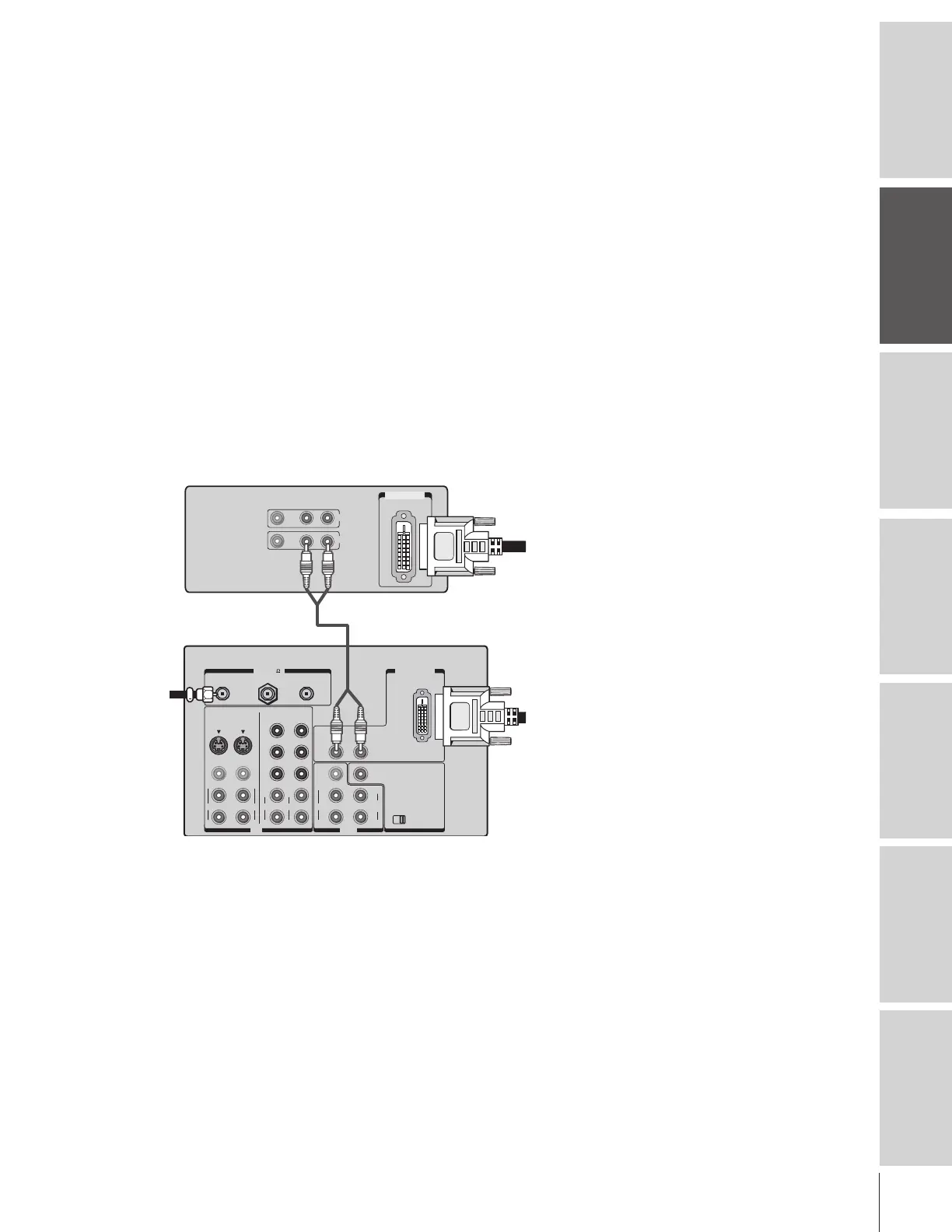

Connecting a device to the DVI/HDCP input
The DVI/HDCP
1
input on your TV is designed to accept HDCP
program material in digital form from EIA/CEA-861–compliant
2
consumer electronic devices, such as a set-top box or DVD player
equipped with a DVI-D digital single-link output connection.
3
The DVI/HDCP input is designed for best performance with 1080i
high-definition video signals. The DVI/HDCP input also will accept
and display 480p, 480i and 720p picture signals.
Note: This TV is not intended for connection to
and should not be used with a PC (personal
computer).
You will need:
• one coaxial cable
• one pair of standard audio cables
• one DVI-D digital single-link cable
Note: For proper operation, the DVI-D cable length
should not exceed 3m (9.8 ft). The recommended
length is 2m (6.6 ft).
OUT
IN
ANT
(
75
)
ANT-1 ANT-2OUT
L/
MONO
AUDIO
VIDEO
S-VIDEO
VIDEO 1
P
B
P
R
Y
COLOR
STREAM HD-1
COLOR
STREAM HD-2
R
VIDEO
S-VIDEO
VIDEO 2
L/
MONO
AUDIO
VIDEO
R
L
VAR
AUDIO
R
AUDIO
R
L
P
B
P
R
Y
AUDIO
R
L
L/
MONO
AUDIO
R
ON OFF
AUDIO CENTER
CHANNEL IN
DVI/HDCP IN
R
AUDIO
L
VIDEO AUDIO
LR
IN
OUT
DVI/ HDCP
OUT
From
Antenna
or Cable
To Next Page
