7

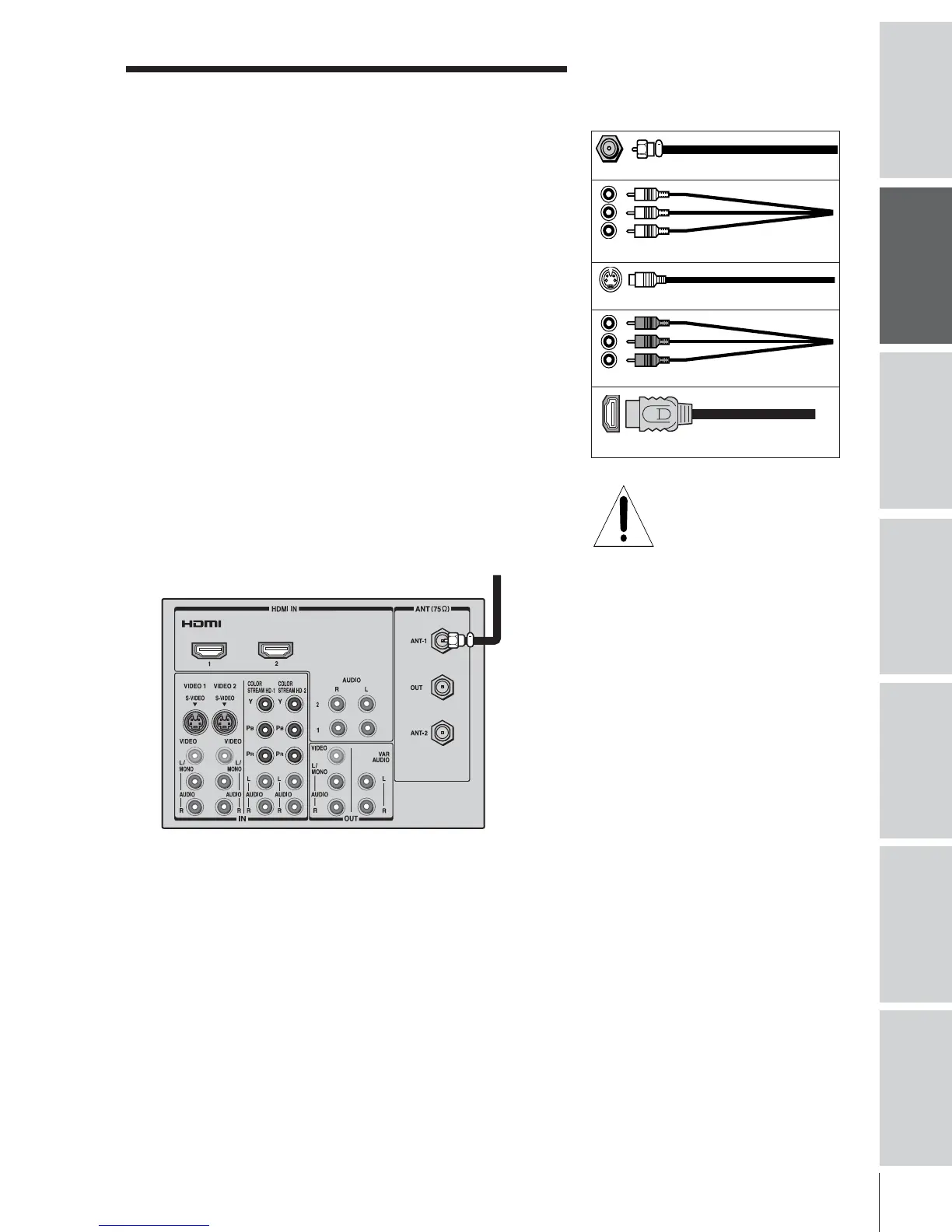

Connecting an antenna or cable TV
This connection allows you to watch TV programs or basic cable
channels.
Connecting your TV
Note: Cables are not supplied with your TV.
●
Coaxial cable is the cable that comes in from your antenna, cable TV
service, or cable converter box. Coaxial cable uses “F” connectors.
●
Standard A/V (audio/video) cables usually come in sets of three, and
are typically color-coded according to use: yellow for video, red for
stereo right audio, and white for stereo left (or mono) audio.
On your TV’s back panel, the standard A/V inputs are color-coded in
the same manner as the cables.
●
S-Video cable is for use with video equipment that has S-Video output.
●
Component video cables come in sets of three, and are for use with
video equipment with component video output. (ColorStream
®
is
Toshiba’s brand of component video.)
●
HDMI is for use with video equipment with HDMI output (type A
connector) (see page 14).
Component video cables
Coaxial (antenna) cable
Standard A/V cables (red/white/yellow)
S-video cable
NOTE:
RISK OF EQUIPMENT
DAMAGE.
Do not plug in any power cords
until you have finished connecting all
equipment.
HDMI cable
From Antenna or Cable
TV
To Next Page
