Getting started
13 o HDMI1 (input terminal) — High-
Defi nition Multimedia Interface input receives
digital audio and uncompressed digital video
from an HDMI device or uncompressed
digital video from a DVI device (- pages 31,
33).
14 o HDMI2 and o HDMI3 (input terminal)
— High-Defi nition Multimedia Interface input
receives digital audio and uncompressed
digital video from an HDMI device (- page
31).
15 o PC/HDMI1 (AUDIO) (input terminal)
— PC audio input terminal is shared with
HDMI1 analogue audio input terminal, and
their use can be confi gured in the SET UP
menu (- pages 31-33).
16 o RGB/PC (input terminal) — For use
when connecting a personal computer (PC)
(- page 32).
17 RS-232C terminal — This terminal is for
service use only.
18 O MONITOR (output terminals) —
Standard video and standard audio outputs
(- page 30).
19 o (1) (Video 1 input terminals) —
Standard (composite) video and standard
(analogue) stereo audio inputs (- page 30).
20 o (3) (Video 3 input terminals) — High-
defi nition component video and standard
(analogue) stereo audio inputs (- page 30).
21 o (4) (Video 4 input terminals) — High-
defi nition component video and standard
(analogue) stereo audio inputs (- page 30).
22 A (Aerial input terminal) — Analogue aerial
signal input (- page 8).

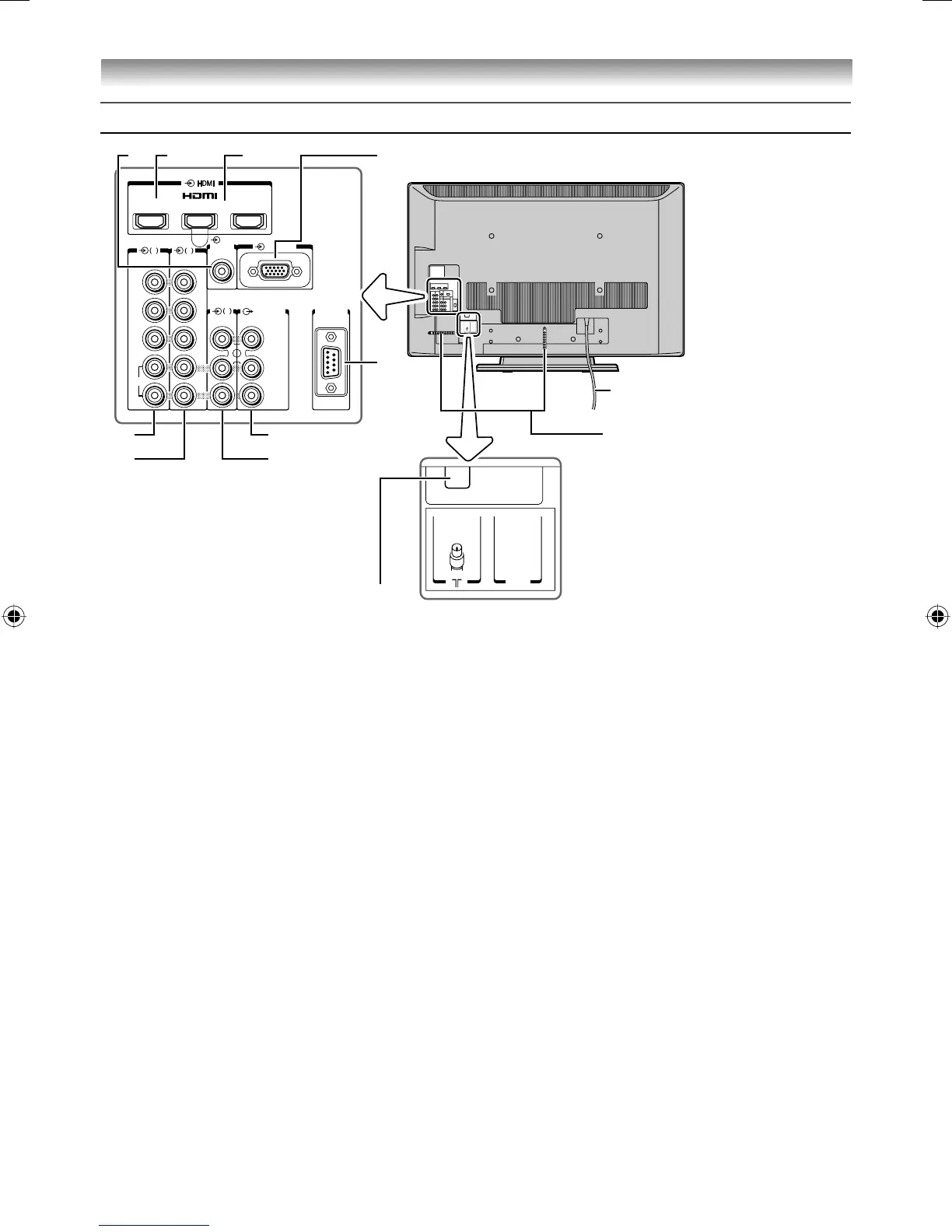

TV back panel connections
1 23
3
4
1
PC/
RS-232C
RGB/PC
HDMI 1
(
AUDIO
)
COMPONENT
VIDEO INPUT
COMPONENT
VIDEO INPUT
VIDEO
AUDIO
R
Y
L/MONO
P R /C R
P B /C B
SERVICE
ONLY
TV back view
Cable holder*
Power cord
1615
1413
20
21
18
19
17
22
* You can use the cable
holder to hold the aerial
cable, video and audio
cables etc.
Never grasp the holder
when moving the TV.
MONITOR
