Introduction
TV front and side panel controls and connections
2 USB ports
1 Analog
Video port
ARC HDMI
TM
only port
3 HDMI
TM
ports
1 Digital
Audio jack
3D IR
Power LED
Remote sensor
Ambient light sensor

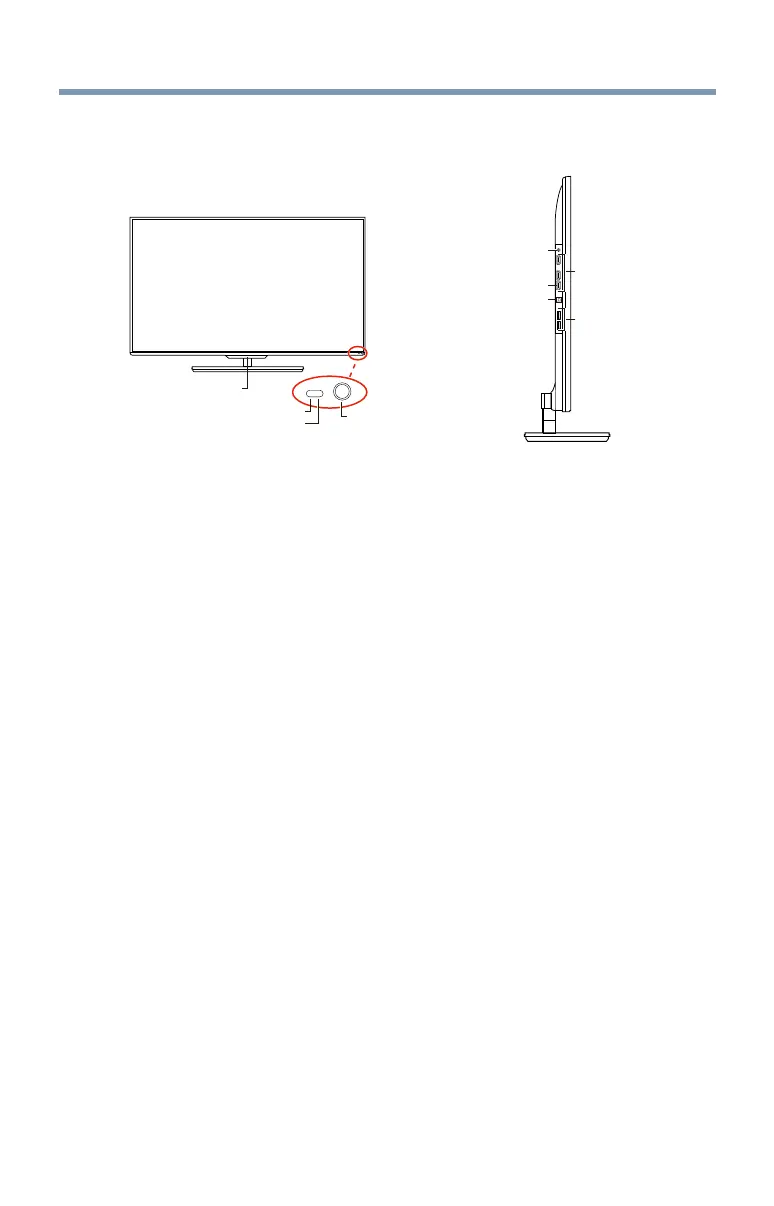

(Sample Illustration) L7350U Series front and side panel controls and
connections
Front panel
1 Power On/Standby LED—Power indicator light, (glows green
when the TV power is On).
2 Ambient light sensor—This sensor detects the ambient light
conditions to optimize the backlighting levels, see “Ambient Light
Sensor” on page 114.
3 Remote Sensor—Point the remote control toward this remote
sensor, see “Remote control effective range” on page 50.
Left side
4 Analog Video Port—Analog Video input. Connect using a
commercially available conversion cable.
5 3 HDMI
™
Ports—High-DenitionMultimediaInterfaceinput
receives digital audio and uncompressed digital video from an
HDMI
™
device or uncompressed digital video from a DVI device.
HDMI
™
connection is necessary to receive 1080p signals.
6 ARC HDMI
™
only port—Audio Return Channel (ARC) enables
theaudiosignaloftheTVtobesenttoanAVamplierviathe
HDMI cable.
7 Digital Audio Jack—Optical audio output in Dolby
®
Digital or
PCM (pulse-code modulation) format for connecting an external
Dolby
®
Digitaldecoder,amplier,A/Vreceiver,orhometheater
system with optical audio input.
8 2 USB Ports—Usedtoaccessvideo,music,orphotoleswith
USB device.
