42
Connecting Your TV
❖
If the computer has a compatible mini D-sub15-pin terminal, an
adapter is not required.
❖
Depending on the content’s title and the computer’s specifications,
some scenes may be skipped or you may not be able to pause during
multi-angle scenes.
Signal names for mini D-sub 15-pin connector:
Pin
No.:
Signal
Name:
Pin No.: Signal
Name:
Pin No.: Signal
Name:
1 R 6 Ground 11 NC
2 G 7 Ground 12 SDA
3 B 8 Ground 13 H-sync
4 NC* 9 5V 14 V-sync
5 Ground 10 Ground 15 SCL
*NC=Not connected
Connect a computer to the TV’s HDMI
™
terminal
When connecting a computer with a DVI port to the HDMI™ terminal on
the TV, use an HDMI
™
to DVI adapter cable and analog audio cables.
When connecting a computer with an HDMI
™
port, use an HDMI
™
cable
(type A connector). Separate analog audio cables may not be necessary,
depending on computer hardware and setup.
For more information, see “Overview of cable types” on page 27.
HDMI IN
4
LAN
FIXED
AUDIO
IR
OUT
PC / HDMI 2
AUDIO
OUTOUT
PC ININ

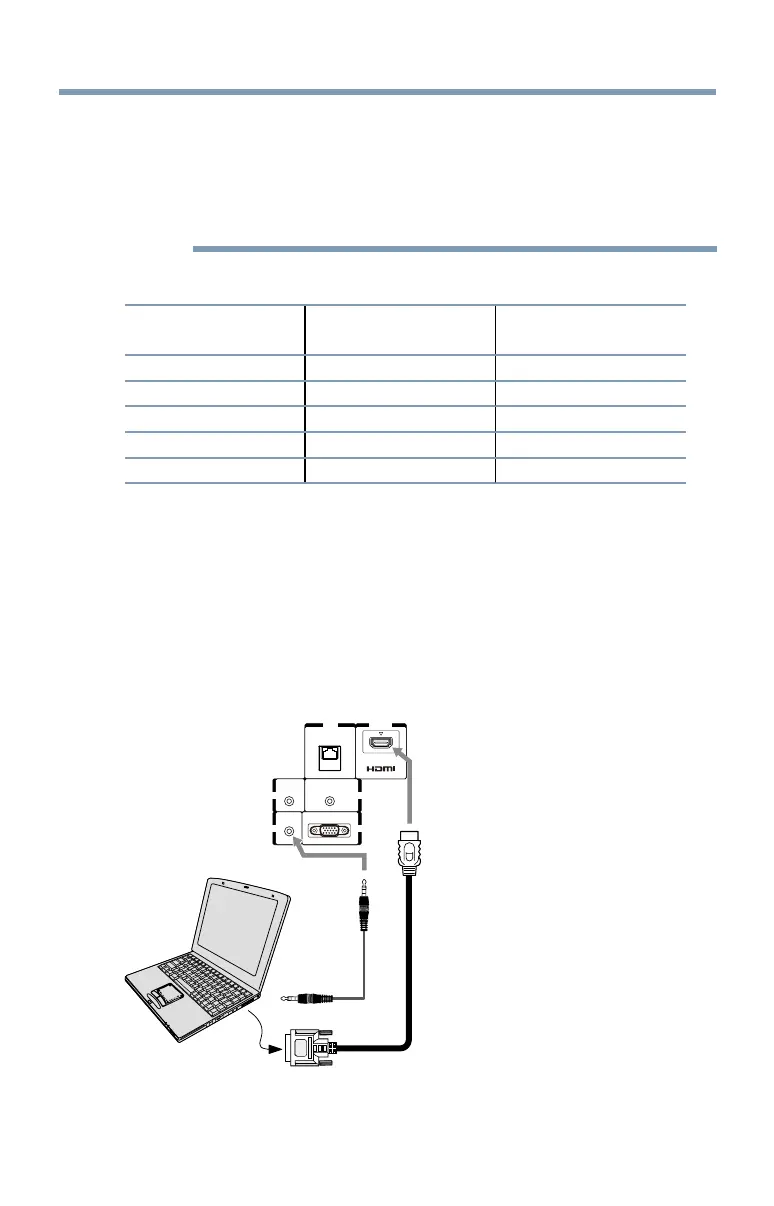

(Sample Illustration) L7350U Series—Connecting to an HDMI
™
terminal
Connecting a computer
