Toshiba B-FP3D SERIES Maintenance Manual

2. MAJOR UNIT REPLACEMENT EO18-33032
(Revision Date: Aug., 2017)
2.11 Replacing the Bluetooth Module
2-29

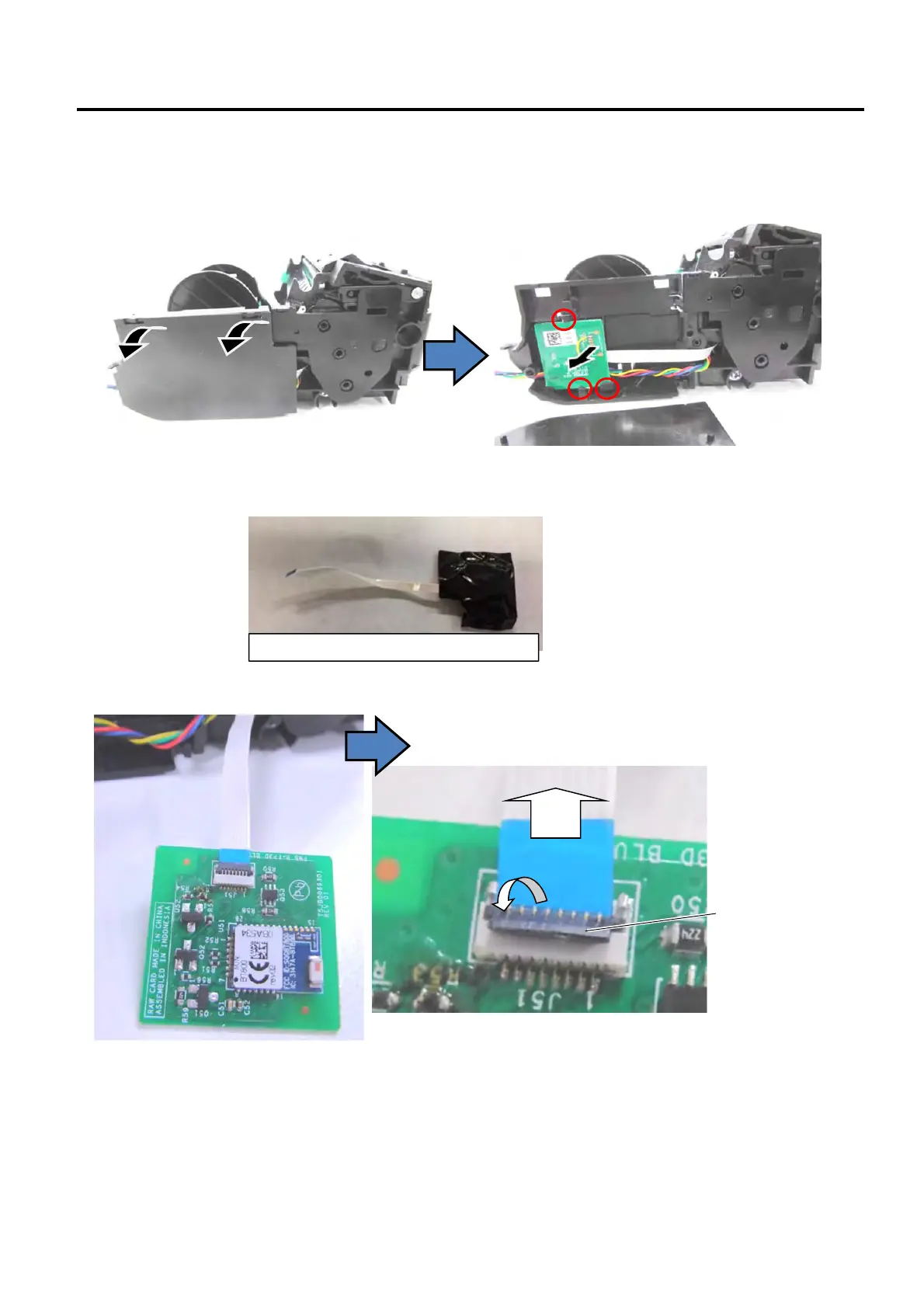

2.11 Replacing the Bluetooth Module
1) Remove the Function Unit. (Refer to Section 2.1 Replacing the CPU PC Board.)
2) Remove the side cover and take out the Bluetooth module from the case.
For the GH model, replace the Bluetooth unit exclusively for the GH model.
3) Remove the FPC Cable form the Bluetooth module.
Take care of the clips.
Pull
Open
Open the lock and pull the FPC.
“Unlock”
Bluetooth unit exclusively for the GH model
