rear
of
this
unit
Use
[A
I
T]
to
select "Video",
then
press [ENTER].
Mfijl
3
or
front
of
this
unit
Vi,'
."
.,

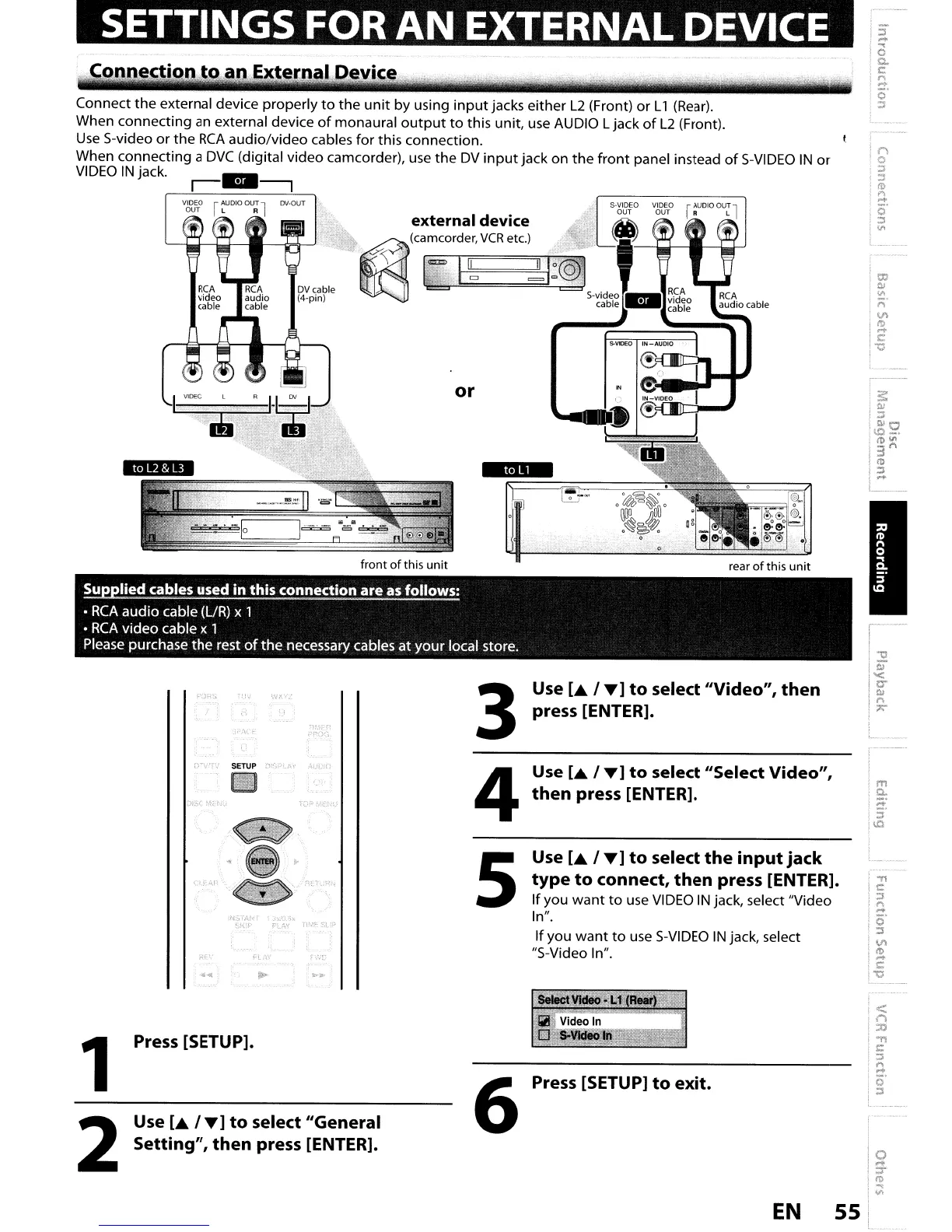

Connection
to
an External.Device
Supl)lied cables used in this connection are
as
follows:
•
RCA
audio cable (UR) x 1
•
RCA
video cable x 1
Please purchase
the
rest
of
the
necessary cables at
your
local store.
Connect the external device properly
to
the
unit
by using
input
jacks either
L2
(Front)
or
L1
(Rear).
When connecting
an
external device
of
monaural
output
to
this unit,
use
AUDIO Ljack
of
L2
(Front).
Use
S-video or
the
RCA
audio/video cables for this connection.
When connecting a
DVC
(digital video camcorder),
use
the
DV
input
jack on
the
front
panel instead
of
S-VIDEO
IN
or
VIDEO
IN
jack.
-..
r---------,
SETUP
[':,:':;:)1,(1'1'
~
i;L::"
tl.
~.
~e
:ir
, -.
4
5
Use [A I
T]
to
select "Select Video",
then
press [ENTER].
Use
[A
I
T]
to
select
the
input
jack
type
to
connect,
then
press [ENTER].
If
you
want
to
use
VIDEO
IN
jack, select "Video
In".
If
you
want
to
use
S-VIDEO
IN
jack, select
"S-Video In".
m
C.
-
::s
\0
1
2
Press [SETUP].
Use
[A
I
T]
to
select "General
Setting",
then
press [ENTER].
6
Press [SETUP]
to
exit.
