H-2
WAVEFORMS

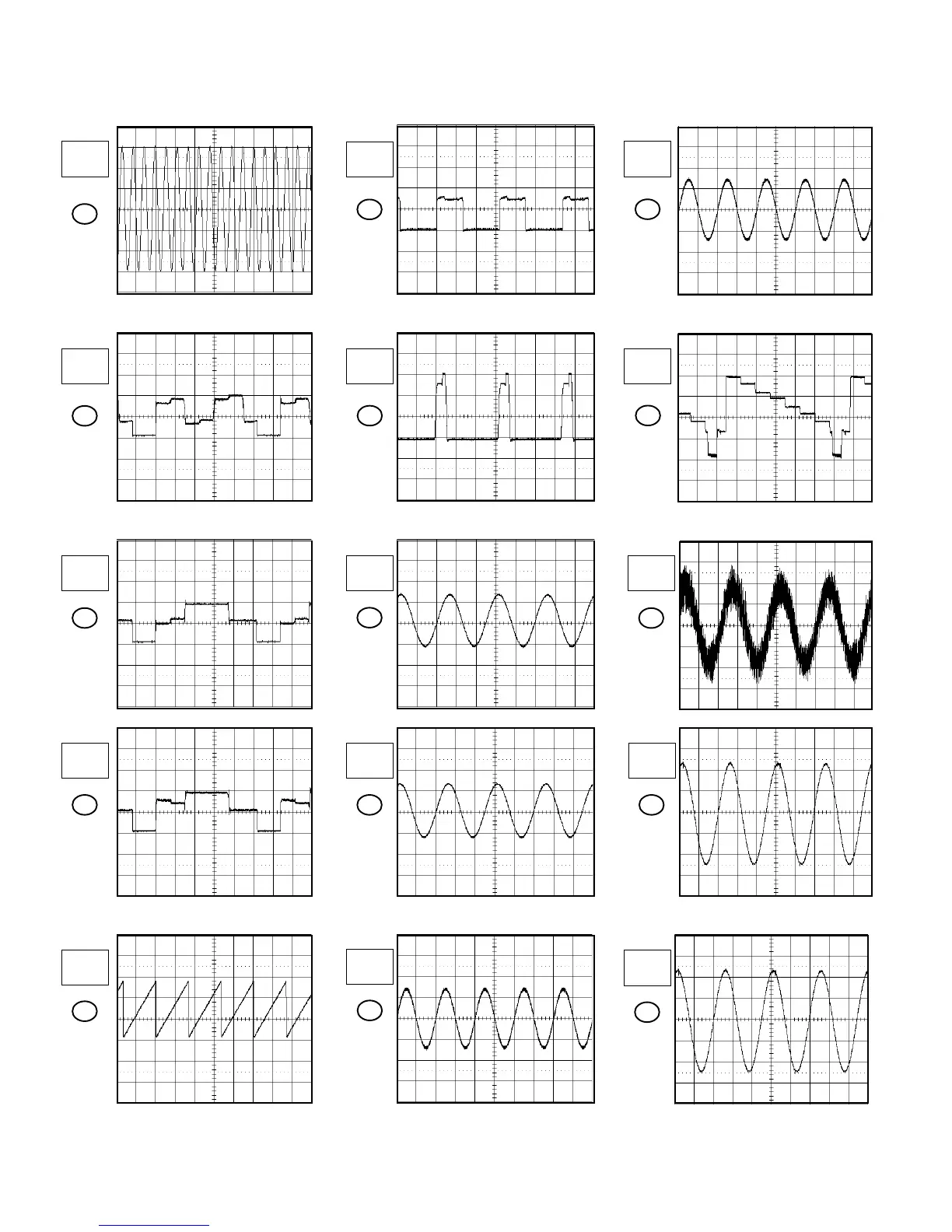

The following waveforms were measured at the point of the corresponding
balloon number in the schematic diagram.
NOTE:
39
DVD PLAY
10µs
0.5V
SOUND AMP
30
31
POWER ON
10µs
2.0V
POWER ON
10µs
2.0V
32
POWER ON
10ms
0.5V
33
POWER ON
20µs
0.5V
34
POWER ON
20µs
2.0V
IN/OUT
35
36
POWER ON
1ms
100mV
POWER ON
1ms
100mV
37
DVD PLAY
0.5ms
200mV
38
DVD PLAY
0.5ms
200mV
28
STANDBY
0.5µs
100mV
29
POWER ON
10µs
2.0V
STEREO
40
42
POWER ON
1ms
200mV
POWER ON
1ms
50mV
41
POWER ON
1ms
200mV
