User’s Manual 2-7
The Grand Tour
Underside
The following figure shows the underside of the computer. You should
ensure that the display is closed before the computer is turned over to
avoid causing any damage.

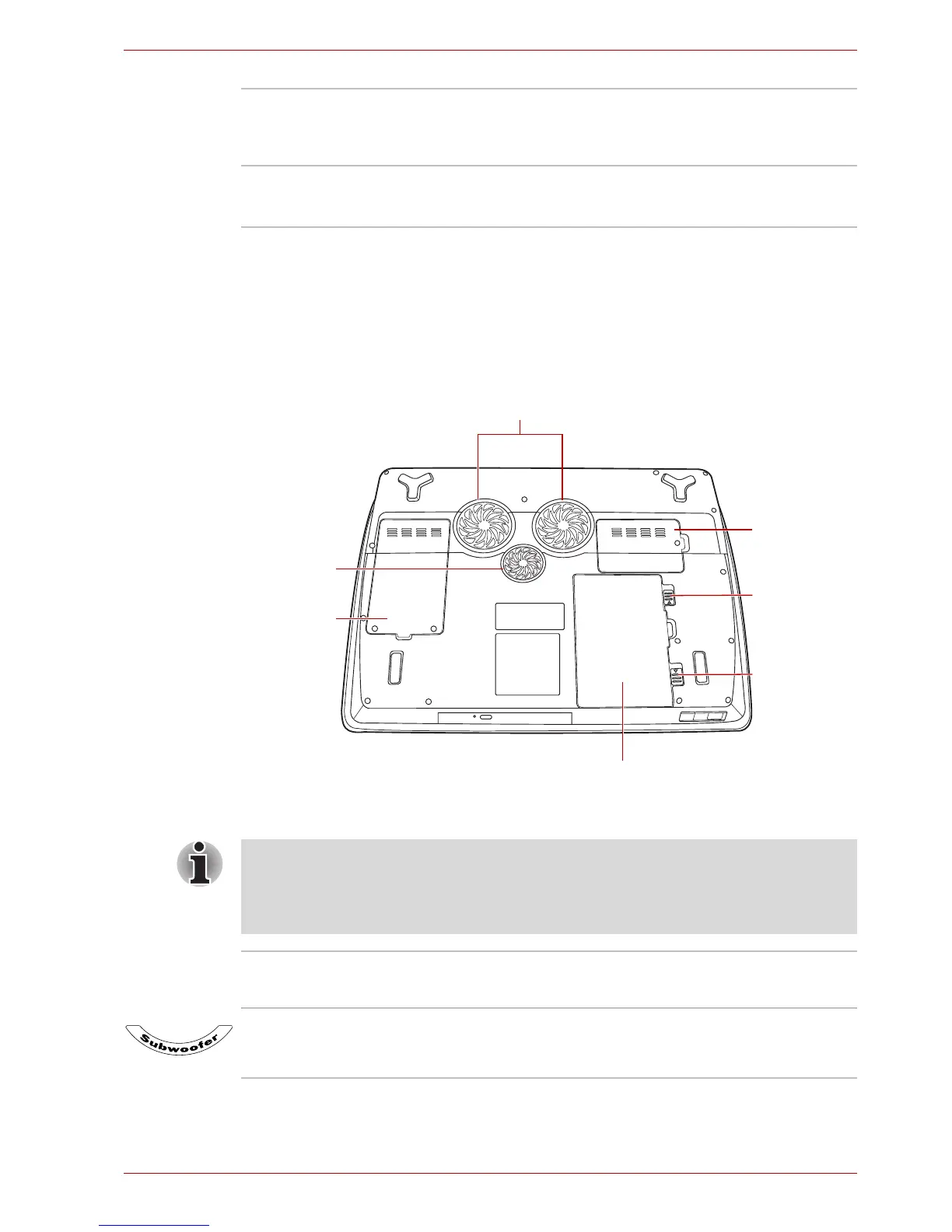

Figure 2-5 The underside of the computer
Link indicator
(green)
This indicator glows green when the computer is
connected to a LAN and the LAN is functioning
properly.
LAN active
indicator (orange)
This indicator glows yellow when data is being
exchanged between the computer and the LAN.
Battery Pack
Speaker
(subwoofer)
Thermal Fan Holes
Memory
module slots
Battery
Release
Latch
Battery
Safety Lock
HDD cover
The above illustration is of the subwoofer equipped model. Models without
the subwoofer have cooling vents in the subwoofer location pictured
above. Models with the subwoofer do not have cooling vents in the
subwoofer location pictured above.
Thermal Fans These fans draw cool air up from area around the
base of the computer.
Speaker (subwoofer) The subwoofer will reproduce the low frequency
sounds generated.
