– 52 –

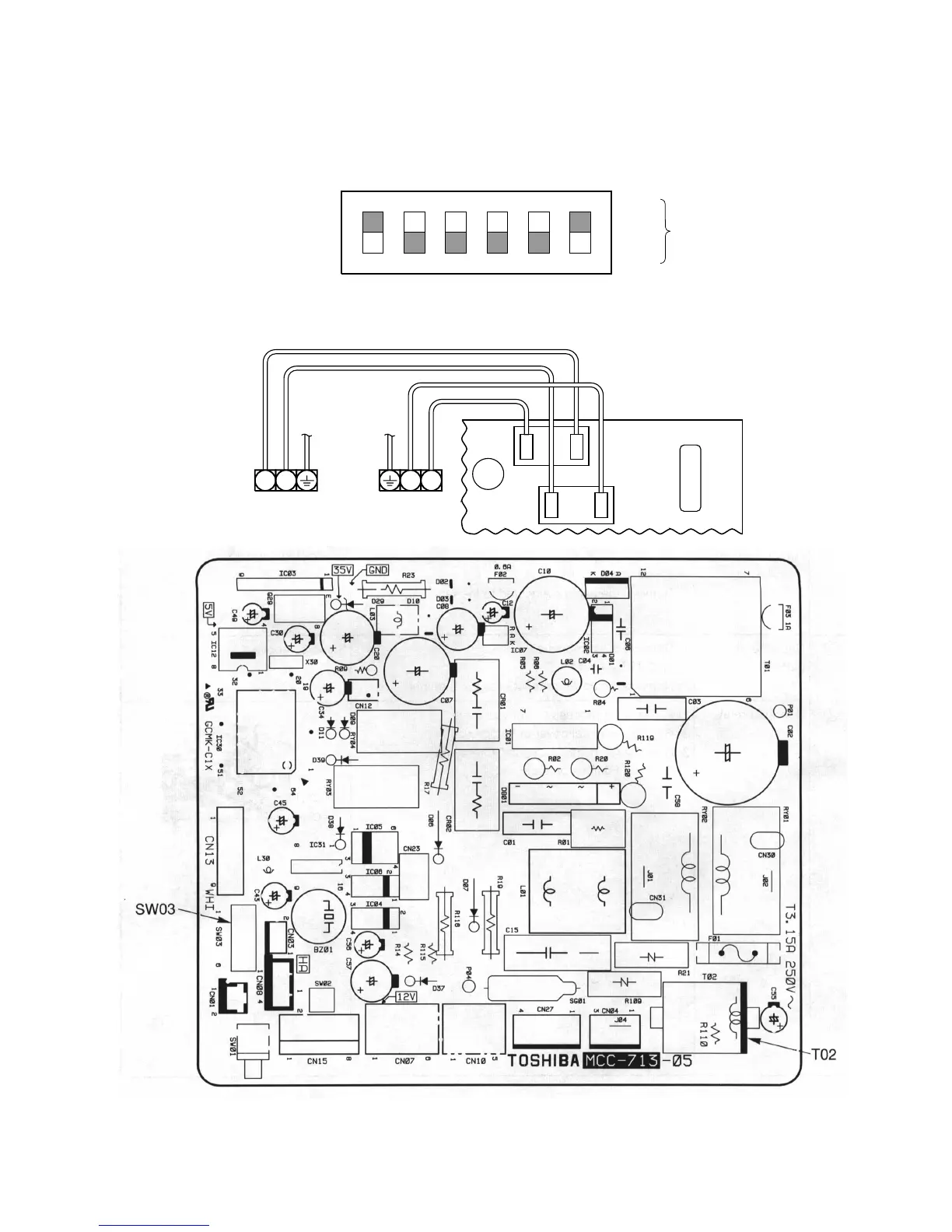

11. CAUTIONS ON REPLACEMENT OF PC BOARD ASSEMBLY
1. Set the switch (SW03) provided on the PC board as follows.
2. Don?t wind the black lead wire around the current trans. (CT. T02)
ON
OFF
123456
1
2
3
4
5
6
ON
ON
OFF
RY01
C02
RY02
Brown
N L
Power
terminal
block
T02
PC board
Blue
White
Black
1 2
Indoor
terminal
block
