– 89 –
13. DETACHMENTS
13-1. Outdoor Unit
RAV-GP1101AT8*, RAV-GP1401AT8*, RAV-GP1601AT8* series
No.
1
Part name
Common
procedure
Procedure
WARNING
Stop operation of the air conditioner and turn off
breaker switch.
CAUTION
Ensure wearing of gloves when performing any work
in order to avoid injury from parts, etc.

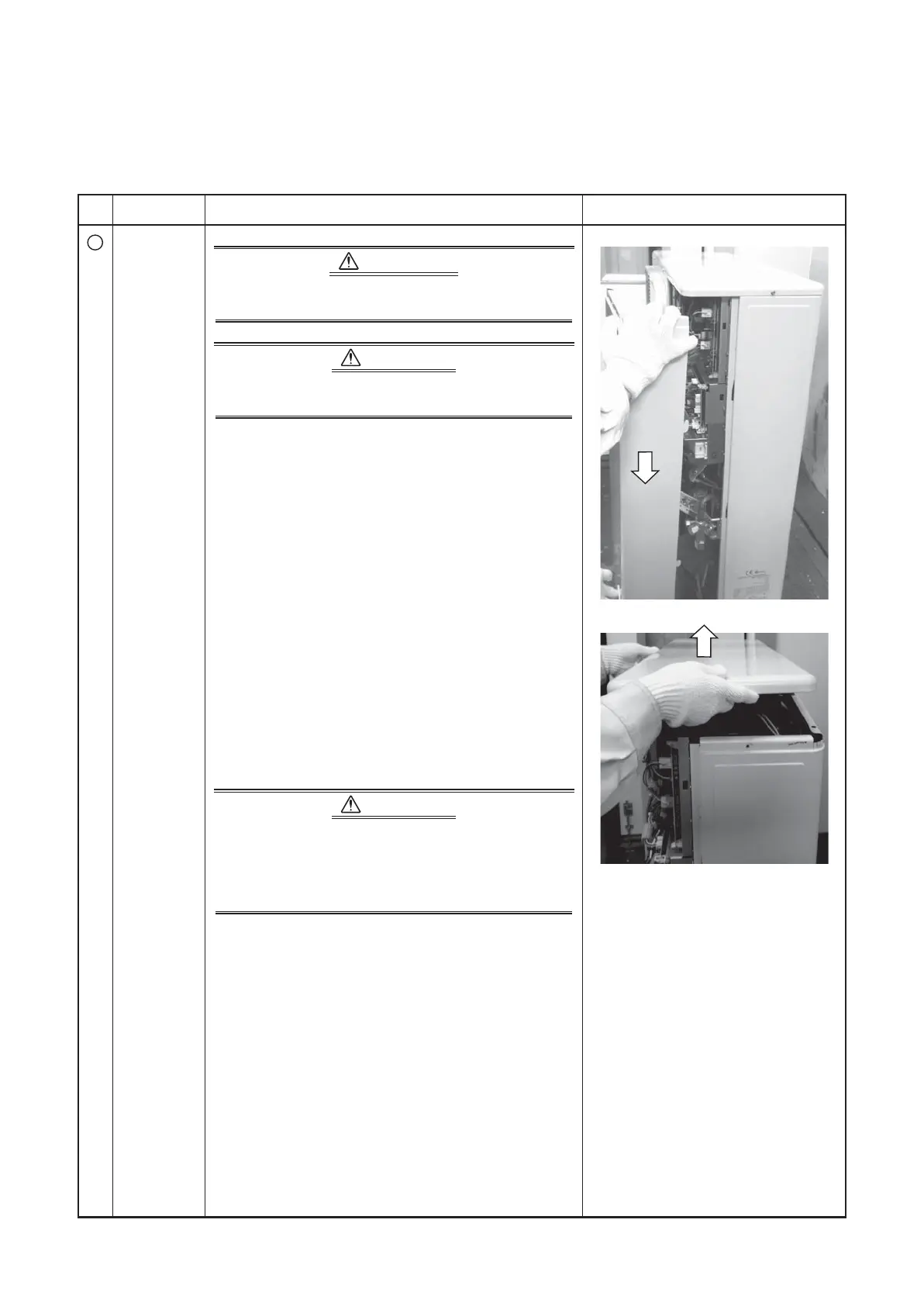

1. Detachment
1) Remove the service panel.
(Hexagonal screws M4 × 10, 2 pcs.)
• Remove the screws and then pull service panel
downward to remove.
2) Remove the power supply cable and the indoor/
outdoor connecting wire from the cord clamp and
the terminal.
3) Remove the top plate.
(Hexagonal screws M4 × 10, 5 pcs.)
2. Attachment
1) Attach the top plate.
(Hexagonal screws M4 × 10, 5 pcs.)
2) Connect the power supply cable and the indoor/
outdoor connecting wire to the terminal and then
fix with the cord clamp.
CAUTION
The power supply cable and the indoor/outdoor
connecting wire must be affixed along the crossover
pipe using a commercially available bundling band so
that they do not make contact with the compressor,
gas valve, gas pipe and discharge pipe.
3) Attach the front panel.
(Hexagonal screws M4 ×10, 2 pcs.)
Remarks
Service panel
Top plate
Service panel
Top plate
To Next Page
