– 36 –
7. CIRCUIT CONFIGURATION AND CONTROL
SPECIFICATIONS
7-1. Outdoor Unit Control

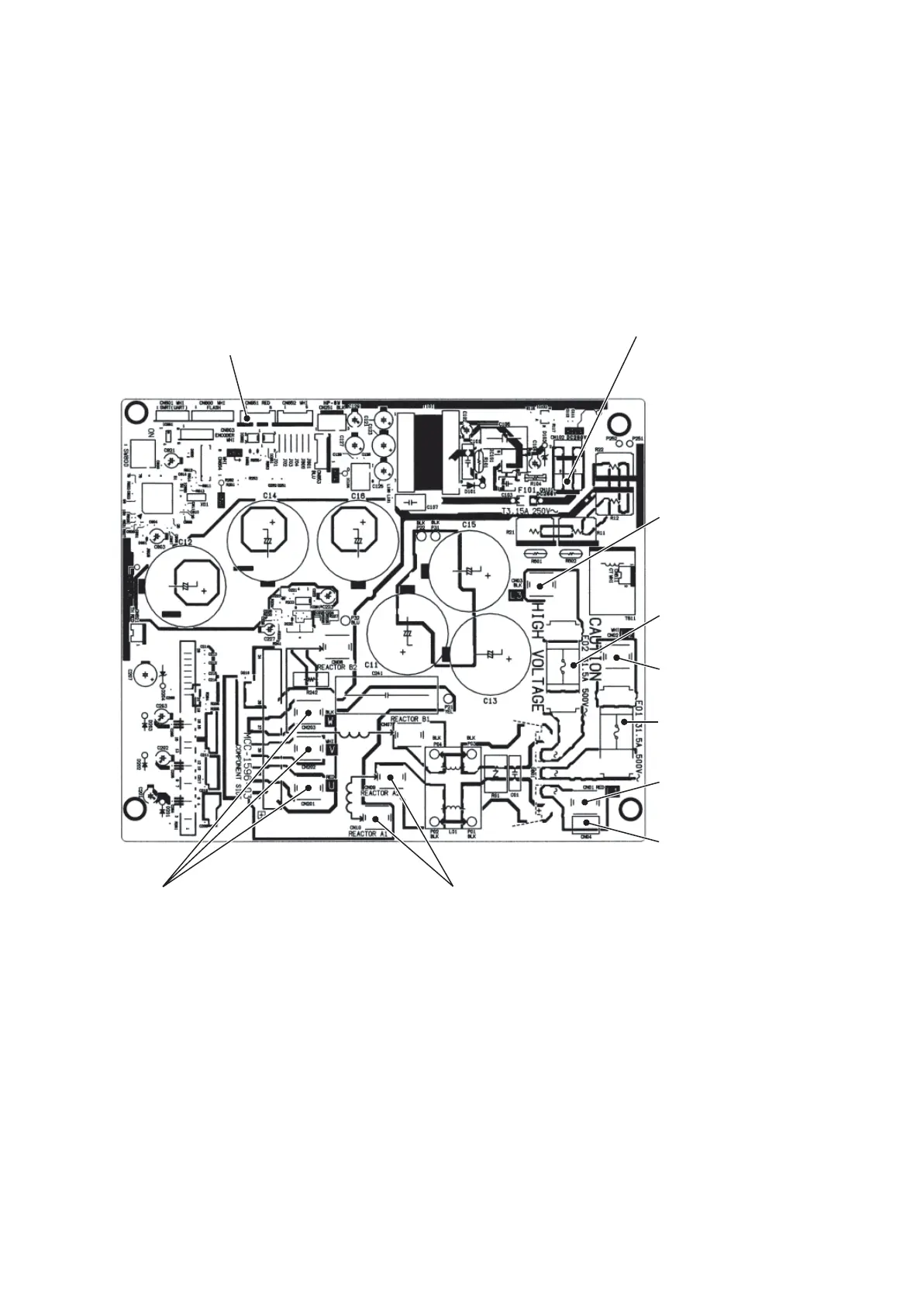

7-1-1. Print Circuit Board, MCC-1596 (Compressor IPDU)
CN851 (Red)
Connector for MCC-1597 (CN505)
CN101 (White)
Connector for MCC-1597 (CN502)
CN13 (Black)
Terminal for power relay
F02
Electric circuit protective fuse
(500V, 31.5A)
CN12 (White)
Terminal for MCC-1600 (CN17)
F01
Electric circuit protective fuse
(500V, 31.5A)
CN11 (Red)
Terminal for power relay
CN04 (Red)
Terminal for PTC thermistor
CN19 (Yellow), CN20 (Yellow)
Terminal for reactor CH78
CN211 (Red), CN212 (White), CN213 (Black)
Compressor output terminal
