– 37 –

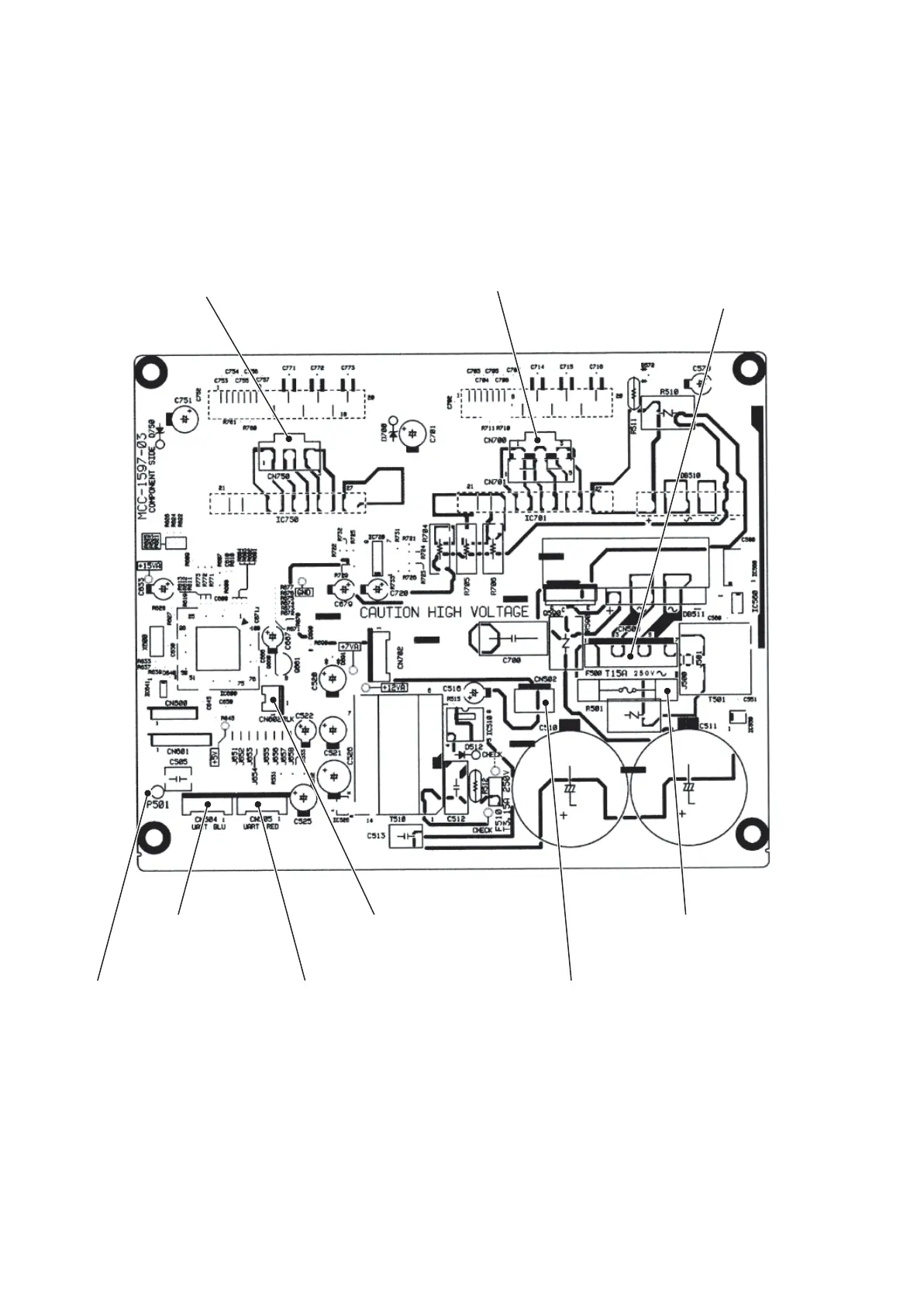

7-1-2. Print Circuit Board, MCC-1597 (Fan Motor IPDU)
CN750
(White)
Fan motor output (Upper side)
CN504
(Blue)
Connector for MCC-1599
(CN802)
CN602
(Black)
Connector for MCC-1600 (CN51)
F500
Electric circuit protective fuse
(250V, 15A)
P501
(Black)
Lead wire for grounding
CN505
(Red)
Connector for MCC-1596 (CN851)
CN502
(White)
Connector for MCC-1596 (CN101)
CN700
(Blue)
Fan motor output (Lower side)
CN500
(Red)
Connector for MCC-1600 (CN23)
and reactor CH68
