11
CV510U (E/F) Web 213:276
Chapter 1: Introduction

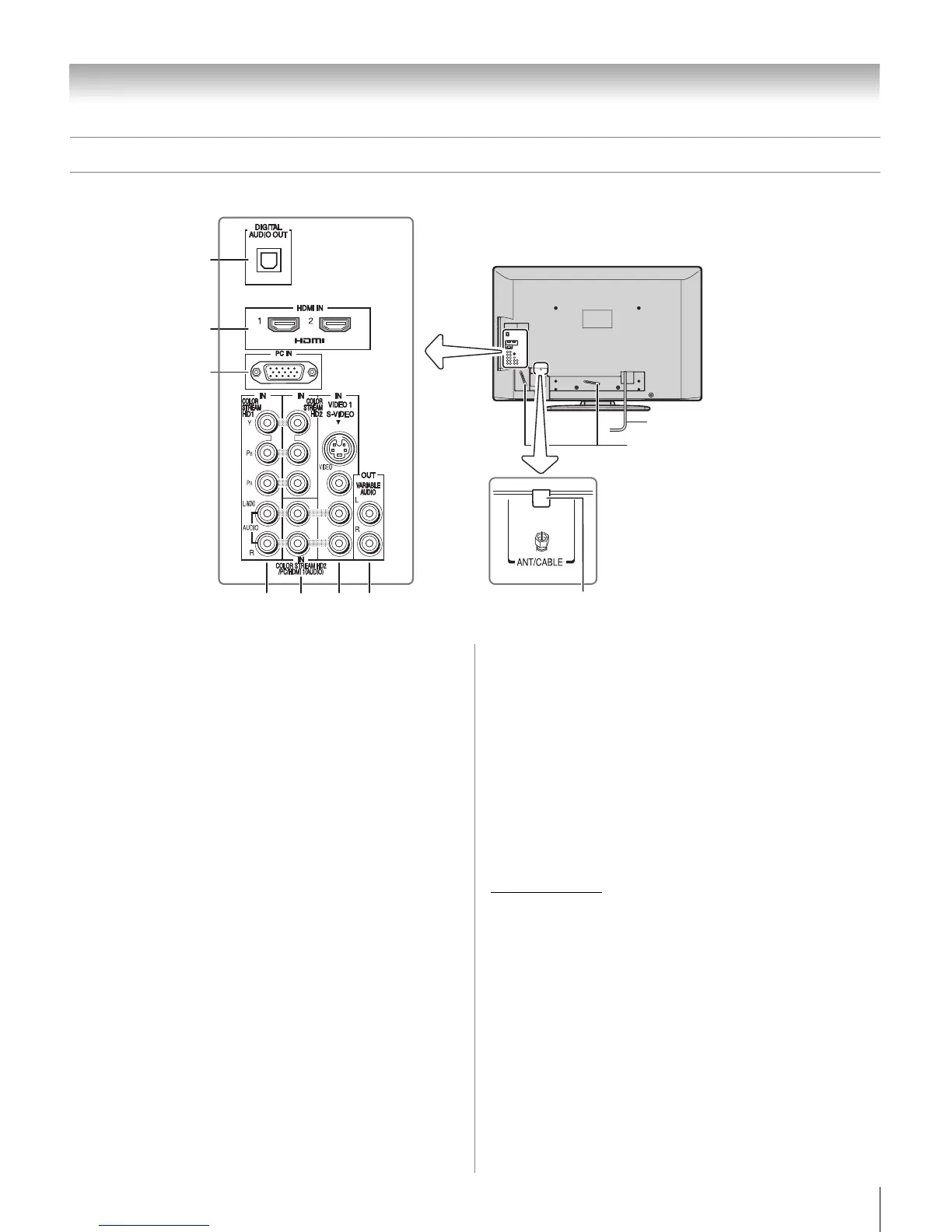

TV back panel connections
For an explanation of cable types and connections, see pages 12–18.
1
2
3
8
6
7
4
5
TV back
Cable Strap
Power cord
1 DIGITAL AUDIO OUT — Optical audio output in Dolby
Digital or PCM (pulse-code modulation) format for
connecting an external Dolby Digital decoder, amplifier,
A/V receiver, or home theater system with optical audio
input.
2 HDMI
™
IN — High-Definition Multimedia Interface
input receives digital audio and uncompressed digital
video from an HDMI device or uncompressed digital
video from a DVI device. Also see item 5. HDMI
connection is necessary to receive 1080p signals.
3 PC IN — For use when connecting a personal computer.
4 COLORSTREAM
®
HD1 and COLORSTREAM
®
HD2 — Two sets of ColorStream
®
high-definition
component video inputs (with standard stereo audio
inputs) for connecting devices with component video
output, such as a Toshiba DVD player with
ColorStream
®
.
Note: Component video cables carry only video
information; separate audio cables are required for a
complete connection.
5 COLORSTREAM HD2/PC/HDMI 1 (AUDIO) IN —
The ColorStream HD2 audio input terminals are shared
with the PC and HDMI 1 audio input terminals. Their use
can be configured in the Audio Setup menu
(- page 49).
6 VIDEO 1 IN — Standard (composite) video and standard
audio inputs plus optional S-video inputs for connecting
devices with composite video or S-video output.
Note: Standard (composite) video and S-video cables
carry only video information; separate audio cables are
required for a complete connection.
7 VARIABLE AUDIO OUT — Standard analog audio
outputs for connecting an analog amplifier with external
speakers.
8 ANT/CABLE — Antenna input that supports analog
(NTSC) and digital (ATSC) off-air antenna signals and
analog and digital Cable TV (QAM) signals.
HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby
Laboratories.
32_37CV510U_EN.book Page 11 Friday, February 22, 2008 5:40 PM
