4 SUPPLIED PARTS

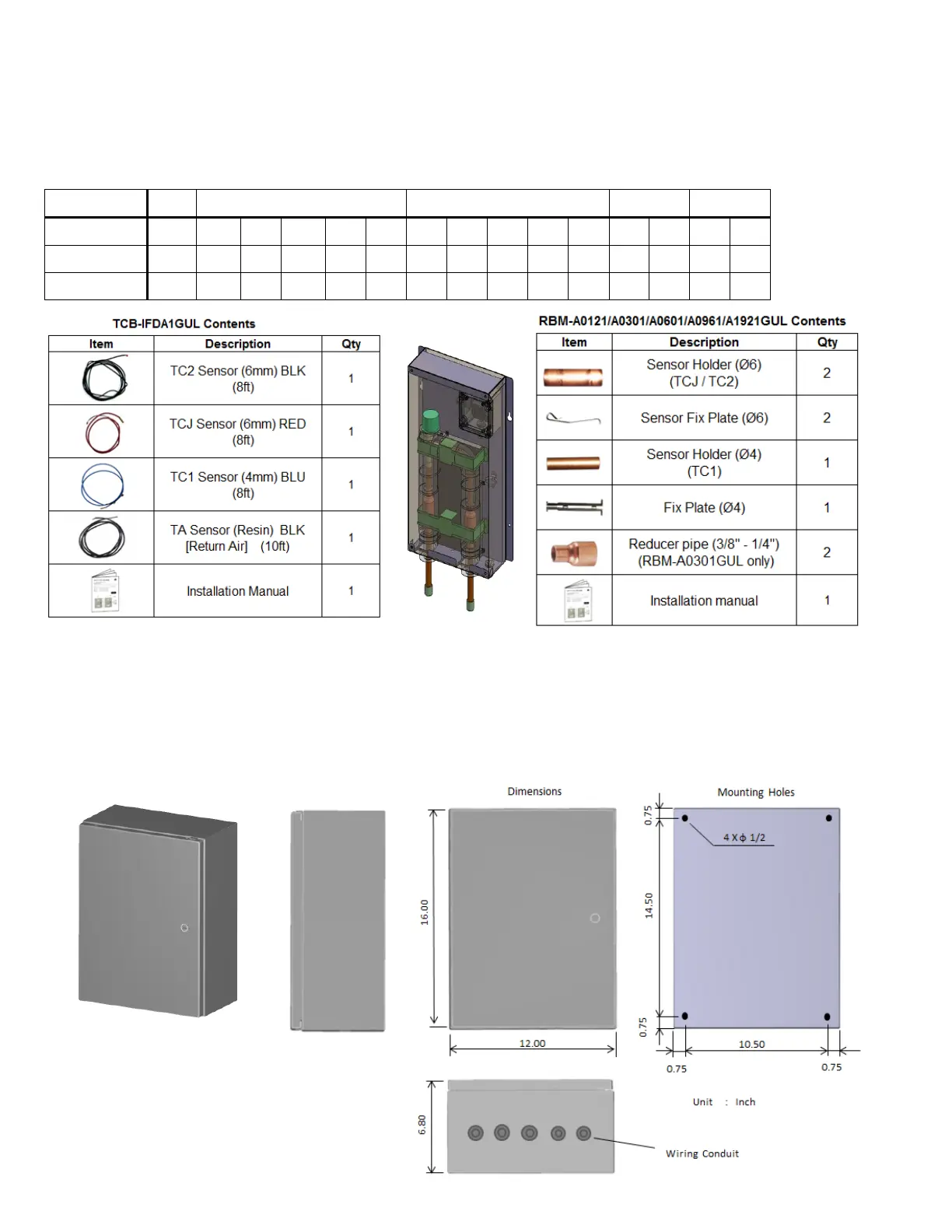

VRF applications require the Dx-Controller RA control type ( TCB-IFDA1GUL ) plus an appropriately sized VRF Dx-PMV kit.
The Dx-PMV kit (RBM-A___1GUL) is expansion valve box which the installer needs to connect by brazing work. There are 5
models which can be configured in to 15 sizes:
RBM-A_1GUL
0121
0301
0601
0961
1921
Capacity
012
015
018
021
024
030
036
042
048
054
060
072
096
168
192
Ton
1
1.25
1.5
1.75
2.0
2.5
3.0
3.5
4.0
4.5
5.0
6.0
8.0
14
16
kBtu/h
12
15.4
18
21
24
30
36
42
48
54
60
72
96
168
192
5 INSTALLATION
■Dx-Controller (TCB-IFDA1GUL)
The Dx-Controller must be installed in vertical orientation (door front side). Mounting surface temperature limit is 140F.
