Toshiba TCB-IFTH1GUL User Manual

24V Thermostat Interface
Installation Manual
5-EN
Introduction
 Overview
The 24V Thermostat Interface is an electronic, incorporated control, which allows VRF (Variable Refrigerant Flow) and Light
Commercial TOSHIBA Carrier indoor units to utilize 3rd party 24VAC thermostat sold in the US market.
 Included Items
Component
Q'ty
Remarks
24V Thermostat Interface
1
Wood Screws
2
Kit Mounting Screws #6/ 18X1’’
Wall Anchors
2
Installation Manual
1
 Specifications
Power supply
DC18V (+0%, -20%) (provided by an indoor unit), AC24V (±10%)
(24V Thermostat Interface circuit; provided by field procured transformer)
Input power
0.5W
Operating current
40mA (DC18V)
Operating temperature range
32 to 104 °F (0°C to 40°C), 10% to 90% RH (no condensation)
Storage temperature range
-4 to 140 °F
(−20
°C to +60°C), 10% to 90% RH (no condensation)
Dimensions
5.1" (W) x 1.1" (H) x 2.8" (D) inch (130 (W) x 28 (H) x 72 (D) mm)
Weight
0.25 lb (0.113kg)

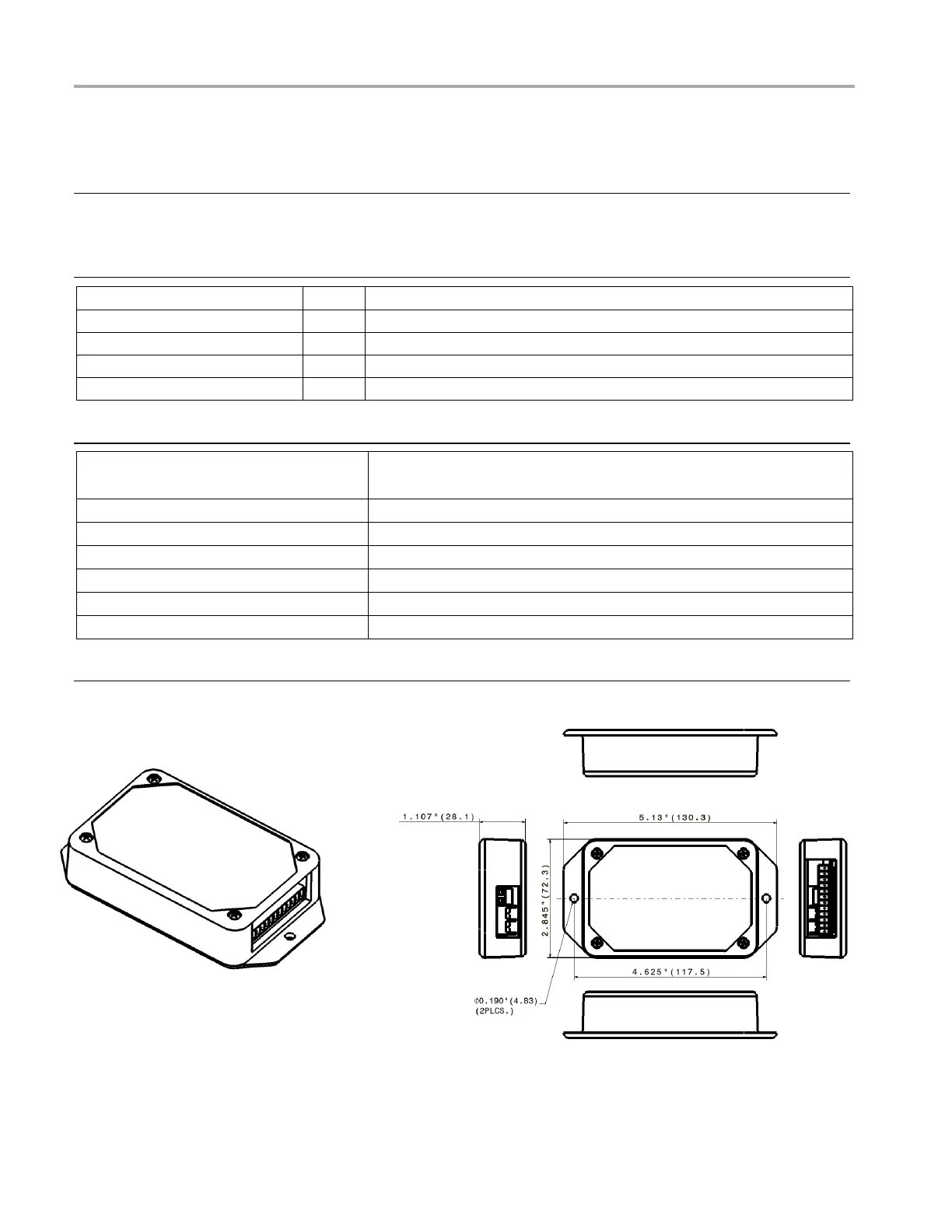

 External View (24V Thermostat Interface equipment)
Unit: inch (mm)
)
