Toshiba TOSVERT VF-PS1 User Manual

E6581386
J-10
10

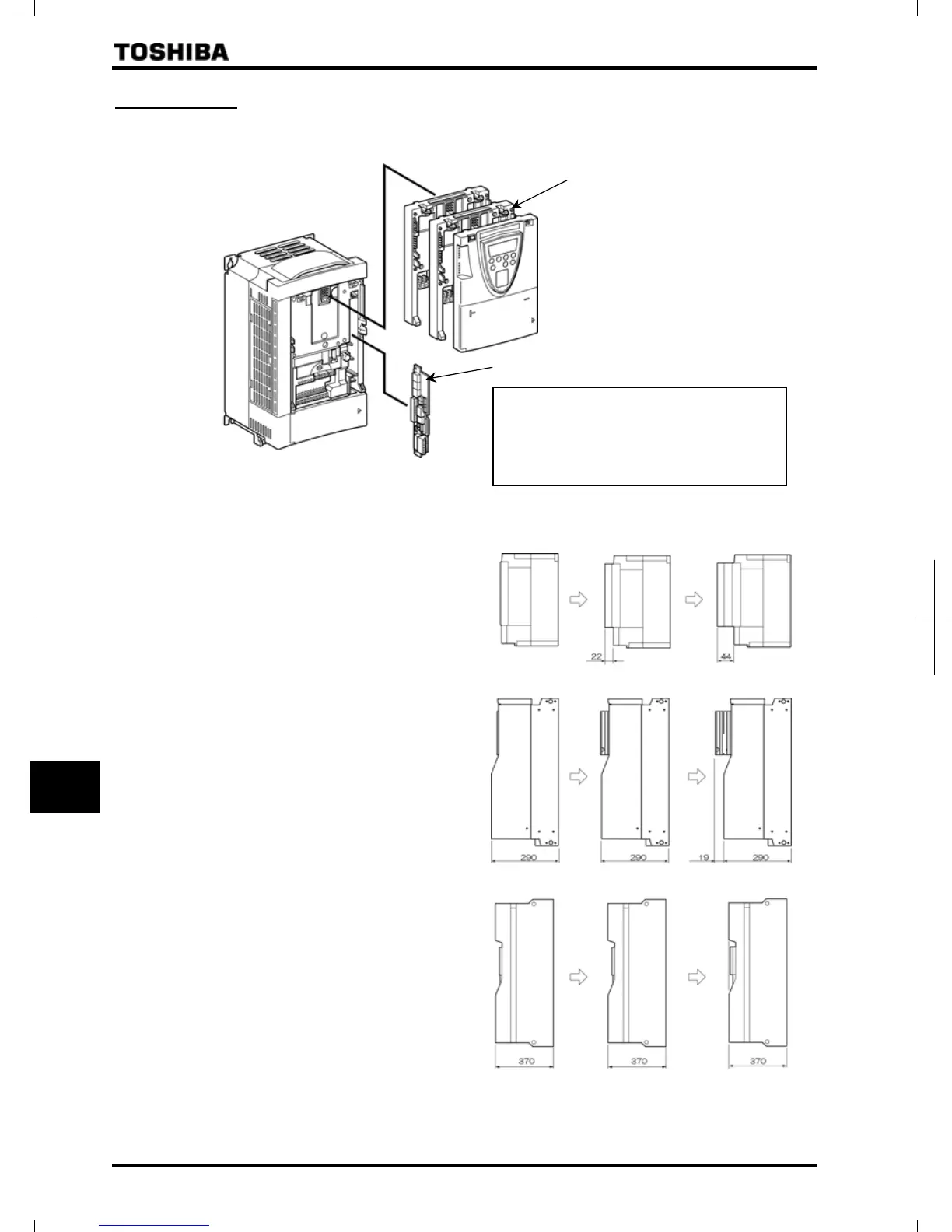

 How to install
Add-on type devices and insertion type devices are installed in different ways. Install them correctly, as shown in the
figures below.
A
dd-on type
Plug-in type
Up to two Add-on type devices and one Plug-in type
device can be installed at the same time. Note,
however, that two identical optional devices and two
identical optional communication devices cannot be
connected and used.
Depending on the capacity, the installation of an Add-on type device may increase the depth of the inverter.
200V 0.4~45kW
400V 0.75~37kW
400V 45~75kW
200V 55~90kW
400V 90~630kW
Note: The inverters of these
capacities come equipped with
an Add-on type option case as
standard. When installing an
optional Add-on type device,
remove the case.
Standard type
+
one Add-on
Standard type
Standard type
+
two Add-on

Toshiba TOSVERT VF-PS1 Specifications

General

Series	VF-PS1
Cooling Method	Forced air cooling
Protection Class	IP20
Horsepower Range	0.5HP to 30HP
Rated Output Current	2.5 to 90A
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short circuit
Protection Features	Stall prevention
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Storage Temperature	-20°C (-4°F)
Humidity	95% RH (non-condensing)
Altitude	1000m (3280ft) or less
Vibration	5.9 m/s²
Frequency	50/60 Hz
