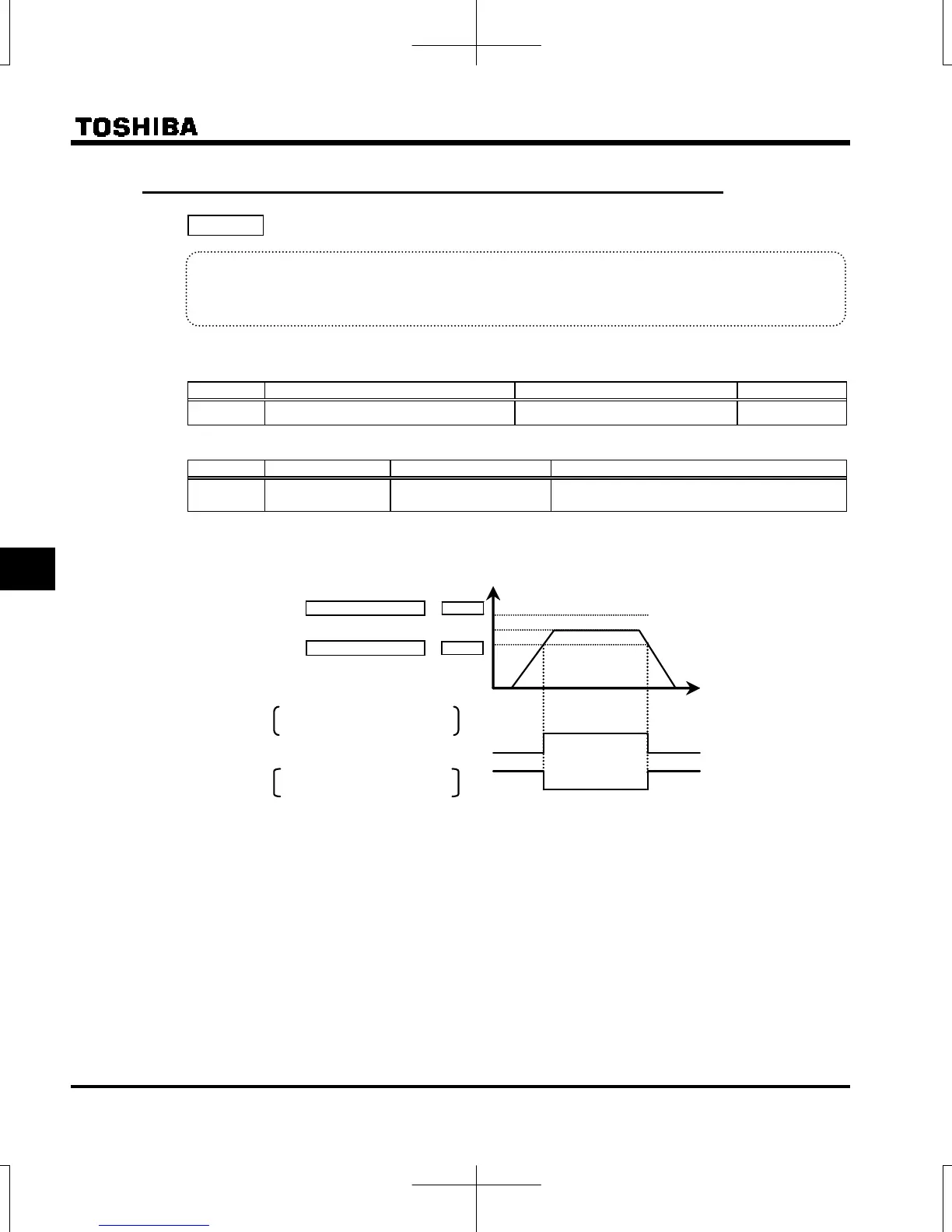

6.5.2 Output of designated frequency reach signal
f102 : Speed reach detection band
 Function
When the output frequency becomes equal to the setting by designated frequency  f102, an ON
or OFF signal is generated.
[Parameter setting]
Parameter setting of designated frequency and detection band
Title Function Adjustment range Default setting
f102
Speed reach detection band 0.0-fh (Hz) 2.5
Parameter setting of output terminal selection
Title Function Adjustment range Default setting
f131
Output terminal
selection 2A (OUT)
0-255
(Refer to section 11.7.)
6: RCH (Output frequency attainment signal
(acceleration/deceleration completed))
Setting value 7 is reverse signal.
Note: Set f132 to output to FLA-FLC-FLB terminals and f130 to RY-RC terminal.
Output frequency [Hz]
Time [s]
Designated frequency  
ON
OFF
Designated frequency  
Setting frequency
Output frequency attainment signal
: OUT-NO terminals
Inversion of output frequency
attainment signal
ON
OFF
0
