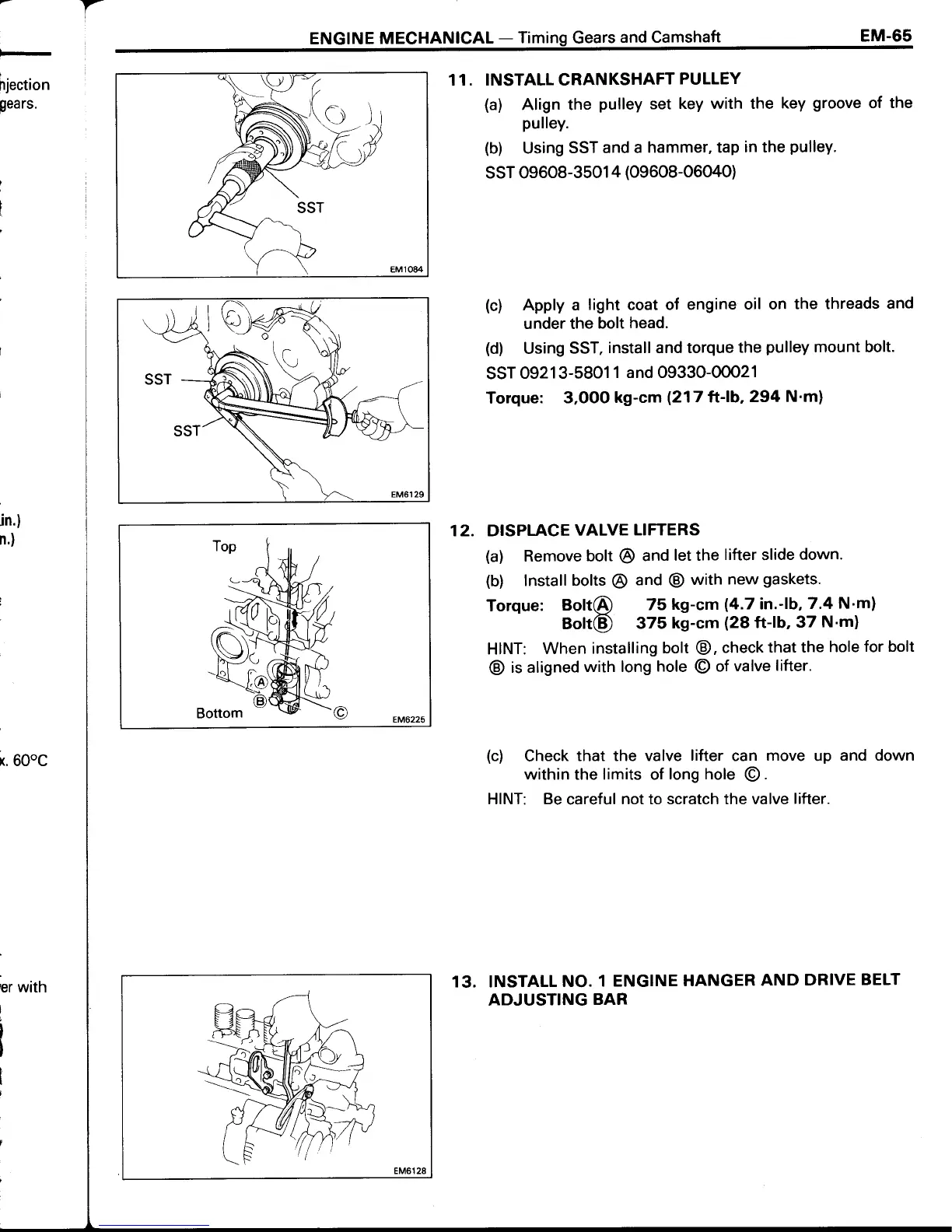

ENGINE
MECHANICAL
-
Ti Gears
and Camshaft
EM.65
11.
INSTALL CRANKSHAFT
PULLEY
(a)
Align the
pulley
set
key with the
key
groove
of
the
pulley.
(b)
Using
SST
and a
hammer, tap
in the
pulley.
ssr 09608-3501
4
(09608-06040)
(c)
Apply a
light coat of engine
oil on
the threads
and
under the
bolt
head.
(d)
Using
SST,
install
and
torque
the
pulley
mount bolt.
SST
0921 3-5801
1 and 09330-00021
Torque:
3,OOO
kg-cm
1217
ft-\b,294
N'm)
jn.)
n.)
12. DISPLACE
VALVE
LIFTERS
(a)
Remove bolt
@
and
let the
lifter
slide
down.
(b)
lnstall bolts
@
and
@
with
new
gaskets.
Torque:
Boh@
75
kg-cm
(4.7
in'-lb,
7.4 N'm)
Boh@
375
kg-cm
(28
ft-lb,
37
N'm)
HINT:
When
installing
bolt
@,
check
that the
hole
for bolt
@
is aligned
with long
hole
@
of
valve
lifter.
(c)
Check
that the valve
lifter
can
move
up
and down
within the limits of
long hole
@.
HINT: Be
careful
not to scratch the valve
lifter.
13. INSTALL
NO.
1 ENGINE
HANGER
AND
DRIVE
BELT
ADJUSTING
BAR
EM6128
