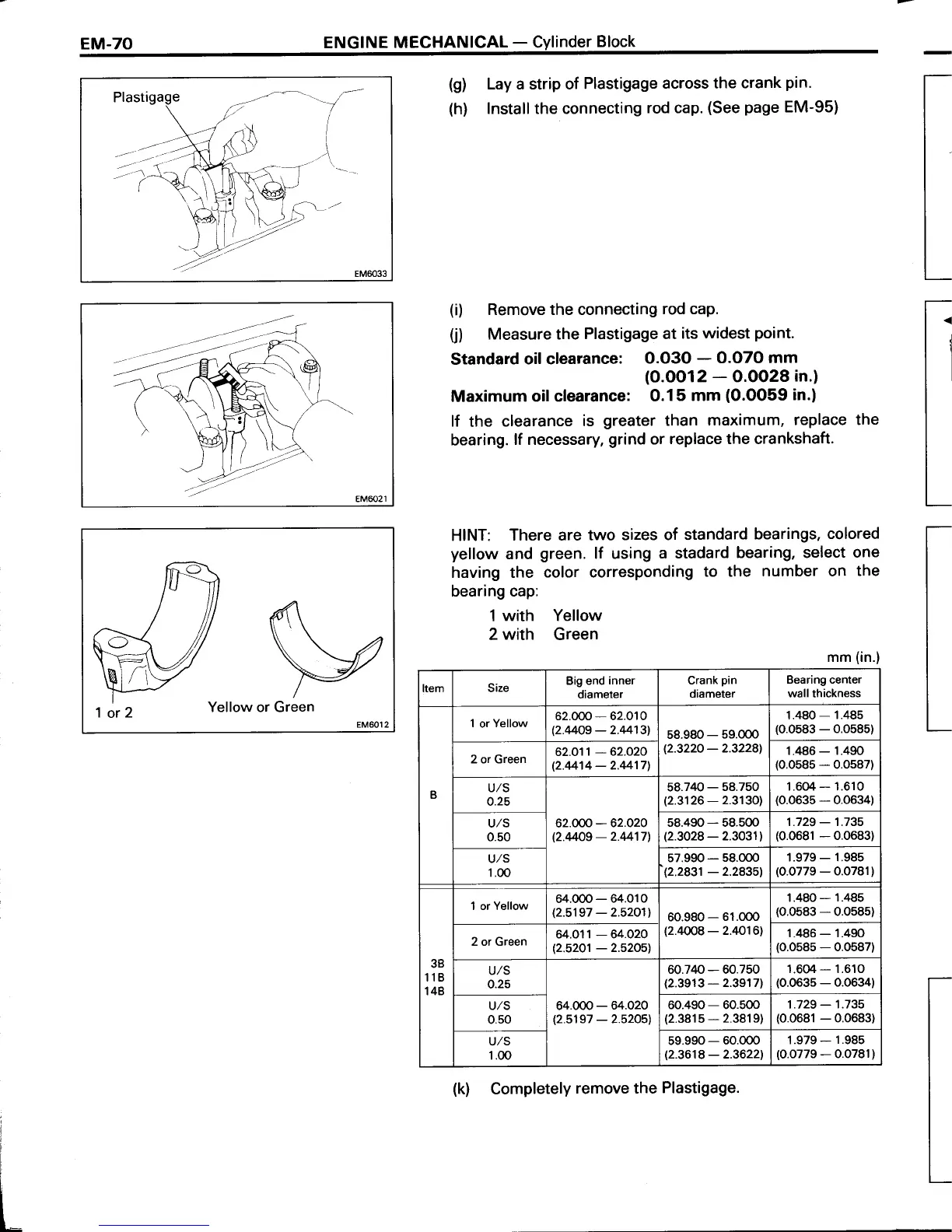

EM-7O
ENGINE
MECHANICAL
-
Cylinder
Block
Plastigage
1or2
Yellow or Green
(g)
Lay a strip of
Plastigage
across the
crank
pin.
(h)
lnstall the connecting
rod cap.
(See page
EM-95)
(i)
Remove the connecting
rod cap.
(j)
Measure the
Plastigage at
its
widest
point.
Standard
oilclearance:
O.O3O
-
O.O7O
mm
(O.OO12
-
O.OO28
in.)
Maximum
oilclearance:
0.15
mm
(O.OO59
in.)
lf
the
clearance
is
greater
than
maximum,
replace the
bearing.
lf necessary,
grind
or
replace the crankshaft.
HINT:
There are two
sizes of standard
bearings,
colored
yellow
and
green.
lf using
a stadard
bearing, select
one
having the
color corresponding
to the
number on
the
bearing cap:
l
with Yellow
2
with
Green
mm
(in.)
Item
Size
Big end
inner
diameter
Crank
pin
diameter
Bearing center
wall thickness
B
1
or
Yellow
62.000
-
62.010
(2!d09
-
2.4413l,
58.980
-
59.000
(2.3220
-
2.32281
1.480
-
1.485
(0.0583
-
0.0585)
2 or Green
62.011
-
62.020
(2.4414
-
2.44171
1.486
-
1.490
(0.0585
-
0.0587)
u/s
o.25
62.000
-
62.020
(2.409
-2.44171
58.740
-
58.750
12.3126
-
2.3130)
1.6@- 1.610
(0.0635
-
0.0634)
U,/S
0.50
58.490
-
58.500
(2.3028
-
2.3031)
1.729
-
',t.735
(0.0681
-
0.0683)
u/s
1.00
57.990
-
58.000
12.2831
-2.28351
1.979
-
1.985
(0.0779
-
0.0781)
3B
118
148
1 or Yellow
64.000
-
64.010
(2.5197
-
2.52011
60.980
-
61.000
Q.4&8-2.40161
1.480
-
1.485
(0.0583
-
0.0585)
2 or Green
64.01 1
-
64.020
(2.5201
-2.5205l.
1.486
-
1.490
(0.0585
-
O.05871
u/s
0.25
64.000
-
64.020
(2.5197
-
2.5205\
60.740
-
60.750
(2.3913
-2.39171
1.604- 1.610
(0.0635
-
0.0634)
U/S
0.50
60.490
-
60.500
(2.3815
-
2.38191
1.729
-
',t.735
{0.0681
-
0.0683)
v/s
1.00
59.990
-
60.000
(2.3618
-2.36221
1.979
-
1.985
(0.0779
-
0.0781)
(k)
Completely
remove the
Plastigage.
